Oil Storage Center Flanged Linear Bearing
The Oil Storage Center Flanged Linear Bearing is a self-lubricating synthetic resin bearing featuring a central flange for enhanced rigidity. Available in round, square, and oval profiles, it provides smooth, maintenance-free motion, making it ideal for compact automation.
Engineered from advanced synthetic resin, the Oil Storage Center Flanged Linear Bearing offers a self-lubricating, maintenance-free solution for precision linear motion. Its distinctive center-flange design provides optimal structural symmetry and enhanced rigidity against moment loads, while the available round, square, and oval configurations ensure versatile mounting. Combining high impact resistance with corrosion immunity, this lightweight bearing is perfectly suited for demanding, space-constrained environments in automated machinery.

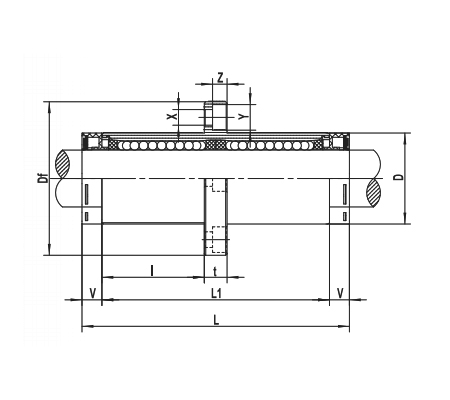

Technical Specificationsļ¼

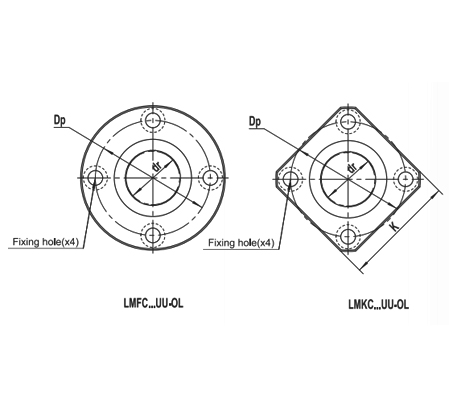

Round Rectangular Flanged Type
| Nominal Part No. | Major Dimensions(mm) | Eccentricity Ī¼m |
Squareness Ī¼m |
Basic load rating | Weight g |
Nominal shaft diameter mm |
|||||||||||||
| Resin Retainer |
dr | D | L | L1 | Flange | dynamic C(N) |
Static Co(N) |
||||||||||||
| V | I | Df | K | t | Dp | X | Y | Z | |||||||||||
| LMFC/KC1OUU-OL | 10 | 19 | 65 | 55 | 5 | 24.5 | 40 | 30 | 6 | 29 | 4.5 | 7.5 | 4.1 | 15 | 15 | 588 | 1100 | 102/82 | 10 |
| LMFC/KC12UU-OL | 12 | 21 | 68 | 57 | 5 | 25.5 | 42 | 32 | 6 | 32 | 4.5 | 7.5 | 4.1 | 15 | 15 | 657 | 1200 | 114/94 | 12 |
| LMFC/KC16UU-OL | 16 | 28 | 82 | 70 | 6 | 32 | 48 | 37 | 6 | 38 | 4.5 | 7.5 | 4.1 | 15 | 15 | 1230 | 2350 | 197/172 | 16 |
| LMFC/KC20UU-OL | 20 | 32 | 94 | 80 | 7 | 36 | 54 | 42 | 8 | 43 | 5.5 | 9 | 5.1 | 20 | 20 | 1400 | 2740 | 271/236 | 20 |
| LMFC/KC25UU-OL | 25 | 40 | 130 | 112 | 9 | 52 | 62 | 50 | 8 | 51 | 5.5 | 9 | 5.1 | 20 | 20 | 1560 | 3140 | 559/519 | 25 |
| LMFC/KC30UU-OL | 30 | 45 | 143 | 123 | 10 | 56.5 | 74 | 58 | 10 | 60 | 6.6 | 11 | 6.1 | 20 | 20 | 2490 | 5490 | 704/614 | 30 |
| LMFC/KC35UU-OL | 35 | 52 | 157 | 135 | 11 | 62.5 | 82 | 64 | 10 | 67 | 6.6 | 11 | 6.1 | 25 | 25 | 2650 | 6270 | 1048/958 | 35 |
| LMFC/KC40UU-OL | 40 | 60 | 175 | 151 | 12 | 69 | 96 | 75 | 13 | 78 | 9 | 14 | 8.1 | 25 | 25 | 3430 | 8040 | 1603/1413 | 40 |
| LMFC/KC50UU-OL | 50 | 80 | 220 | 192 | 14 | 89.5 | 116 | 92 | 13 | 98 | 9 | 14 | 8.1 | 25 | 25 | 6080 | 15900 | 3663/3463 | 50 |

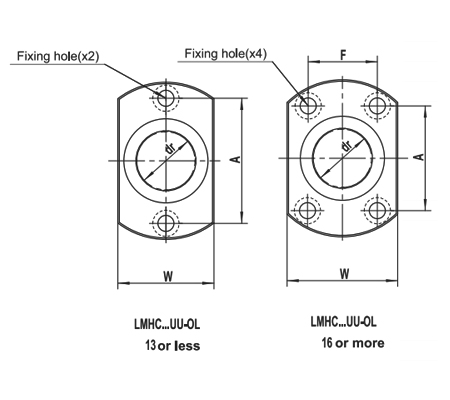

Oval Flanged Type
| Nominal Part No. |
Major Dimensions(mm) | Eccentricity Ī¼m |
Squareness Ī¼m |
Basic load rating | Weight g |
Nominal shaft diameter mm |
||||||||||||||
| Resin Retainer |
dr | D | L | L1 | Flange | dynamic C(N) |
Static Co(N) |
|||||||||||||
| V | I | Df | W | t | A | F | X | Y | Z | |||||||||||
| LMFHCC1OUU-OL | 10 | 19 | 65 | 55 | 5 | 24.5 | 40 | 25 | 6 | 29 | – | 4.5 | 7.5 | 4.1 | 15 | 15 | 588 | 1100 | 94 | 10 |
| LMFHCC12UU-OL | 12 | 21 | 68 | 57 | 5 | 25.5 | 42 | 27 | 6 | 32 | – | 4.5 | 7.5 | 4.1 | 15 | 15 | 657 | 1200 | 106 | 12 |
| LMFHCC16UU-OL | 16 | 28 | 82 | 70 | 6 | 32 | 48 | 34 | 6 | 31 | 22 | 4.5 | 7.5 | 4.1 | 15 | 15 | 1230 | 2350 | 189 | 16 |
| LMFHCC20UU-OL | 20 | 32 | 94 | 80 | 7 | 36 | 54 | 38 | 8 | 36 | 24 | 5.5 | 9 | 5.1 | 20 | 20 | 1400 | 2740 | 258 | 20 |
| LMFHCC25UU-OL | 25 | 40 | 130 | 112 | 9 | 52 | 62 | 46 | 8 | 40 | 32 | 5.5 | 9 | 5.1 | 20 | 20 | 1560 | 3140 | 544 | 25 |
| LMFHCC30UU-OL | 30 | 45 | 143 | 123 | 10 | 56.5 | 74 | 51 | 10 | 49 | 35 | 6.6 | 11 | 6.1 | 20 | 20 | 2490 | 5490 | 669 | 30 |
| LMFHCC35UU-OL | 35 | 52 | 157 | 135 | 11 | 62.5 | 82 | 58 | 10 | 55 | 38 | 6.6 | 11 | 6.1 | 25 | 25 | 2650 | 6270 | 973 | 35 |
| LMFHCC40UU-OL | 40 | 60 | 175 | 151 | 12 | 69 | 96 | 66 | 13 | 64 | 45 | 9 | 14 | 8.1 | 25 | 25 | 3430 | 8040 | 1456 | 40 |
| LMFHCC50UU-QL | 50 | 80 | 220 | 192 | 14 | 89.5 | 116 | 86 | 13 | 80 | 56 | 9 | 14 | 8.1 | 25 | 25 | 6080 | 15900 | 3500 | 50 |
