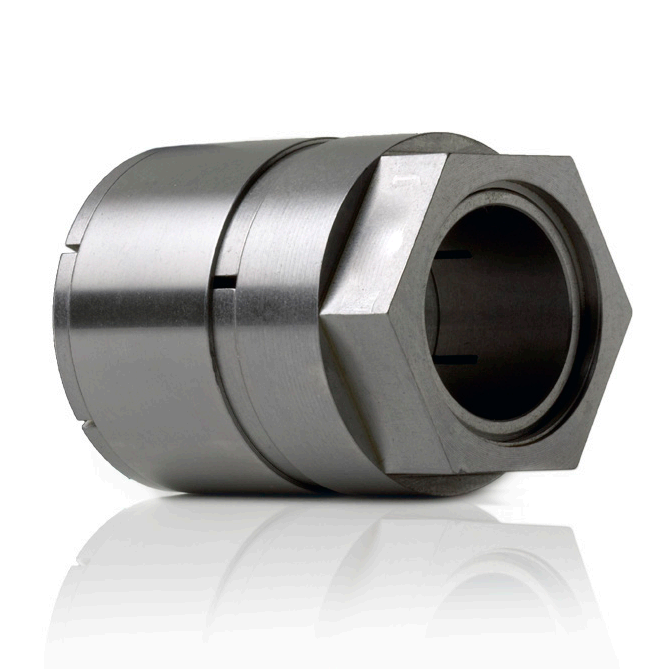

NT Transtorque Keyless Locking Device
Description

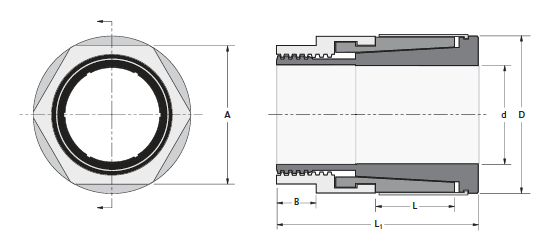

| Part Number | d (inch) | D (inch) | L (inch) | L1 (inch) | Wrench Size | B (inch) | Ma | Mt | Th | Ph* |
| Steel | A (inch) | Install Torque (ft lb) |
Maximum Transmitted | Hub Pressure (psi) |
||||||
| Torque (ft lb) |
Thrust (lbs) | |||||||||
6980103UP |
3/16 | 5/8 | 3/8 | 1 1/16 | 1/2 | 1/8 | 125 | 7 | 876 | 9918 |
6980105UP |
1/4 | 5/8 | 3/8 | 1 1/16 | 1/2 | 1/8 | 125 | 9 | 876 | 9918 |
6980107UP |
5/16 | 3/4 | 7/16 | 1 3/16 | 5/8 | 1/8 | 150 | 11 | 845 | 6833 |
6980109UP |
3/8 | 3/4 | 7/16 | 1 3/16 | 5/8 | 1/8 | 150 | 13 | 845 | 6833 |
6980110UP |
7/16 | 7/8 | 1/2 | 1 5/16 | 3/4 | 3/16 | 175 | 15 | 824 | 4995 |
6980112UP |
1/2 | 7/8 | 1/2 | 1 5/16 | 3/4 | 3/16 | 175 | 17 | 824 | 4995 |
6980114UP |
9/16 | 1 | 5/8 | 1 7/16 | 7/8 | 3/16 | 200 | 19 | 811 | 3440 |
6980115UP |
5/8 | 1 | 5/8 | 1 7/16 | 7/8 | 3/16 | 200 | 21 | 811 | 3440 |
6980119UP |
3/4 | 1 1/4 | 3/4 | 1 11/16 | 1 1/16 | 1/4 | 700 | 73 | 2326 | 6581 |
6980120UP |
5/8 | 1 1/2 | 11/16 | 1 13/16 | 1 1/4 | 5/16 | 1200 | 91 | 3484 | 8960 |
6980140UP |
1 1/16 | 1 1/2 | 11/16 | 1 13/16 | 1 1/4 | 5/16 | 1200 | 100 | 3484 | 8960 |
6980160UP |
3/4 | 1 1/2 | 11/16 | 1 13/16 | 1 1/4 | 5/16 | 1200 | 109 | 3484 | 8960 |
6980190UP |
13/16 | 1 3/4 | 13/16 | 2 3/16 | 1 1/2 | 7/16 | 1500 | 122 | 3594 | 6704 |
6980200UP |
7/8 | 1 3/4 | 13/16 | 2 3/16 | 1 1/2 | 7/16 | 1500 | 131 | 3594 | 6704 |
6980220UP |
15/16 | 1 3/4 | 13/16 | 2 3/16 | 1 1/2 | 7/16 | 1500 | 140 | 3594 | 6704 |
6980240UP |
1 | 1 3/4 | 13/16 | 2 3/16 | 1 1/2 | 7/16 | 1500 | 150 | 3594 | 6704 |
6980270UP |
1 1/16 | 2 | 15/16 | 2 9/16 | 1 3/4 | 1/2 | 2000 | 183 | 4137 | 5853 |
6980280UP |
1 1/8 | 2 | 15/16 | 2 9/16 | 1 3/4 | 1/2 | 2000 | 194 | 4137 | 5853 |
6980300UP |
1 3/16 | 2 | 15/16 | 2 9/16 | 1 3/4 | 1/2 | 2000 | 205 | 4137 | 5853 |
6980320UP |
1 1/4 | 2 | 15/16 | 2 9/16 | 1 3/4 | 1/2 | 2000 | 215 | 4137 | 5853 |
6980350UP |
1 5/16 | 2 3/8 | 1 7/16 | 3 3/32 | 2 | 9/16 | 2300 | 225 | 4113 | 3196 |
6980360UP |
1 3/8 | 2 3/8 | 1 7/16 | 3 3/32 | 2 | 9/16 | 2300 | 236 | 4113 | 3196 |
6980380UP |
1 7/16 | 2 3/8 | 1 7/16 | 3 3/32 | 2 | 9/16 | 2300 | 246 | 4113 | 3196 |
6980400UP |
1 1/2 | 2 3/8 | 1 7/16 | 3 3/32 | 2 | 9/16 | 2300 | 257 | 4113 | 3196 |
6980430UP |
1 19/16 | 2 5/8 | 1 5/8 | 3 15/32 | 2 1/4 | 9/16 | 2800 | 291 | 4466 | 2777 |
6980440UP |
1 5/8 | 2 5/8 | 1 5/8 | 3 15/32 | 2 1/4 | 9/16 | 2800 | 302 | 4466 | 2777 |
6980460UP |
1 11/16 | 2 5/8 | 1 5/8 | 3 15/32 | 2 1/4 | 9/16 | 2800 | 314 | 4466 | 2777 |
6980480UP |
1 3/4 | 2 5/8 | 1 5/8 | 3 15/32 | 2 1/4 | 9/16 | 2800 | 326 | 4466 | 2777 |
6980510UP |
1 13/16 | 2 7/8 | 1 15/16 | 4 3/64 | 2 1/2 | 5/8 | 4900 | 531 | 7029 | 3347 |
6980520UP |
1 7/8 | 2 7/8 | 1 15/16 | 4 3/64 | 2 1/2 | 5/8 | 4900 | 549 | 7029 | 3347 |
6980540UP |
1 15/16 | 2 7/8 | 1 15/16 | 4 3/64 | 2 1/2 | 5/8 | 4900 | 567 | 7029 | 3347 |
6980560UP |
2 | 2 7/8 | 1 15/16 | 4 3/64 | 2 1/2 | 5/8 | 4900 | 586 | 7029 | 3347 |
