GT Style Single-Nut Keyless Bushing (Inch Sizes)

Category:
Description

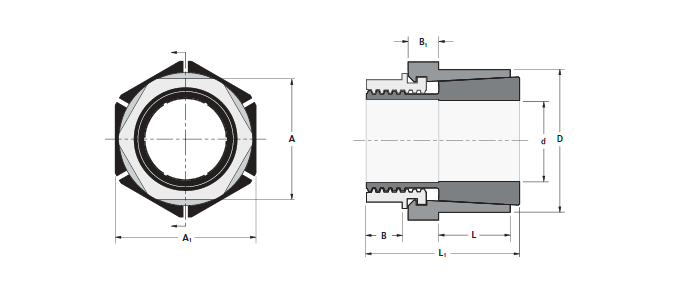

Trantorque keyless bushing

Part Number d x D(inch) Torque-Mt Thrust-Th Hub Pressure-Ph
6202120UP 5/8 x 1 1/2 164 lb·ft 6282 lbs 14316 psi
6202140UP 11/16 x 1 1/2 180 lb·ft 6282 lbs 14316 psi
6202160UP 3/4 x 1 1/2 196 lb·ft 6282 lbs 14316 psi
6202190UP 13/16 x 1 3/4 222 lb·ft 6554 lbs 10015 psi
6202200UP 7/8 x 1 3/4 239 lb·ft 6554 lbs 10015 psi
6202220UP 15/16 x 1 3/4 256 lb·ft 6554 lbs 10015 psi
6202240UP 1 x 1 3/4 273 lb·ft 6554 lbs 10015 psi
6202270UP 1 1/16 x 2 333 lb·ft 7524 lbs 8917 psi
6202280UP 1 1/8 x 2 353 lb·ft 7524 lbs 8917 psi
6202300UP 1 3/16 x 2 372 lb·ft 7524 lbs 8917 psi
6202320UP 1 1/4 x 2 392 lb·ft 7524 lbs 8917 psi
6202350UP 1 5/16 x 2 3/8 412 lb·ft 7529 lbs 5194 psi
6202360UP 1 3/8 x 2 3/8 431 lb·ft 7529 lbs 5194 psi
6202380UP 1 7/16 x 2 3/8 452 lb·ft 7529 lbs 5194 psi
6202400UP 1 1/2 x 2 3/8 471 lb·ft 7529 lbs 5194 psi
6202430UP 1 9/16 x 2 5/8 535 lb·ft 8219 lbs 4599 psi
6202440UP 1 5/8 x 2 5/8 557 lb·ft 8219 lbs 4599 psi
6202460UP 1 11/16 x 2 5/8 578 lb·ft 8219 lbs 4599 psi
6202480UP 1 3/4 x 2 5/8 599 lb·ft 8219 lbs 4599 psi
6202510UP 1 13/16 x 2 7/8 979 lb·ft 12963 lbs 5639 psi
6202520UP 1 7/8 x 2 7/8 1013 lb·ft 12963 lbs 5639 psi
6202540UP 1 15/16 x 2 7/8 1047 lb·ft 12963 lbs 5639 psi
6202560UP 2 x 2 7/8 1080 lb·ft 12963 lbs 5639 psi
6202562UP 2 1/16 x 3 1/8 1087 lb·ft 12650 lbs 4781 psi
6202564UP 2 1/8 x 3 1/8 1120 lb·ft 12650 lbs 4781 psi
6202566UP 2 3/16 x 3 1/8 1153 lb·ft 12650 lbs 4781 psi
6202568UP 2 1/4 x 3 1/8 1186 lb·ft 12650 lbs 4781 psi
6202570UP 2 5/16 x 3 3/8 1181 lb·ft 12260 lbs 4064 psi
6202572UP 2 3/8 x 3 3/8 1213 lb·ft 12260 lbs 4064 psi
6202574UP 2 7/16 x 3 3/8 1245 lb·ft 12260 lbs 4064 psi
6202576UP 2 1/2 x 3 3/8 1277 lb·ft 12260 lbs 4064 psi
6202580UP 2 9/16 x 3 5/8 1295 lb·ft 12127 lbs 3554 psi
6202582UP 2 5/8 x 3 5/8 1326 lb·ft 12127 lbs 3554 psi
6202584UP 2 11/16 x 3 5/8 1358 lb·ft 12127 lbs 3554 psi
6202586UP 2 3/4 x 3 5/8 1390 lb·ft 12127 lbs 3554 psi
6202590UP 2 13/16 x 3 7/8 1452 lb·ft 12394 lbs 3233 psi
6202592UP 2 7/8 x 3 7/8 1485 lb·ft 12394 lbs 3233 psi
6202594UP 2 15/16 x 3 7/8 1517 lb·ft 12394 lbs 3233 psi
6202596UP 3 x 3 7/8 1549 lb·ft 12394 lbs 3233 psi
6202120EN 5/8 x 1 1/2 98.4 lb·ft 3769.2 lbs 8589.6 psi
6202140EN 11/16 x 1 1/2 108 lb·ft 3769.2 lbs 8589.6 psi
6202160EN 3/4 x 1 1/2 117.6 lb·ft 3769.2 lbs 8589.6 psi
6202190EN 13/16 x 1 3/4 133.2 lb·ft 3932.4 lbs 6009 psi
6202200EN 7/8 x 1 3/4 143.4 lb·ft 3932.4 lbs 6009 psi
6202220EN 15/16 x 1 3/4 153.6 lb·ft 3932.4 lbs 6009 psi
6202240EN 1 x 1 3/4 163.8 lb·ft 3932.4 lbs 6009 psi
6202270EN 1 1/16 x 2 199.8 lb·ft 4514.4 lbs 5350.2 psi
6202280EN 1 1/8 x 2 211.8 lb·ft 4514.4 lbs 5350.2 psi
6202300EN 1 3/16 x 2 223.2 lb·ft 4514.4 lbs 5350.2 psi
6202320EN 1 1/4 x 2 235.2 lb·ft 4514.4 lbs 5350.2 psi
6202350EN 1 5/16 x 2 3/8 247.2 lb·ft 4517.4 lbs 3116.4 psi
6202360EN 1 3/8 x 2 3/8 258.6 lb·ft 4517.4 lbs 3116.4 psi
6202380EN 1 7/16 x 2 3/8 271.2 lb·ft 4517.4 lbs 3116.4 psi
6202400EN 1 1/2 x 2 3/8 282.6 lb·ft 4517.4 lbs 3116.4 psi
6202430EN 1 9/16 x 2 5/8 321 lb·ft 4931.4 lbs 2759.4 psi
6202440EN 1 5/8 x 2 5/8 334.2 lb·ft 4931.4 lbs 2759.4 psi
6202460EN 1 11/16 x 2 5/8 346.8 lb·ft 4931.4 lbs 2759.4 psi
6202480EN 1 3/4 x 2 5/8 359.4 lb·ft 4931.4 lbs 2759.4 psi
6202510EN 1 13/16 x 2 7/8 587.4 lb·ft 7777.8 lbs 3383.4 psi
6202520EN 1 7/8 x 2 7/8 607.8 lb·ft 7777.8 lbs 3383.4 psi
6202540EN 1 15/16 x 2 7/8 628.2 lb·ft 7777.8 lbs 3383.4 psi
6202560EN 2 x 2 7/8 648 lb·ft 7777.8 lbs 3383.4 psi
6202562EN 2 1/16 x 3 1/8 652.2 lb·ft 7590 lbs 2868.6 psi
6202564EN 2 1/8 x 3 1/8 672 lb·ft 7590 lbs 2868.6 psi
6202566EN 2 3/16 x 3 1/8 691.8 lb·ft 7590 lbs 2868.6 psi
6202568EN 2 1/4 x 3 1/8 711.6 lb·ft 7590 lbs 2868.6 psi
6202570EN 2 5/16 x 3 3/8 708.6 lb·ft 7356 lbs 2438.4 psi
6202572EN 2 3/8 x 3 3/8 727.8 lb·ft 7356 lbs 2438.4 psi
6202574EN 2 7/16 x 3 3/8 747 lb·ft 7356 lbs 2438.4 psi
6202576EN 2 1/2 x 3 3/8 766.2 lb·ft 7356 lbs 2438.4 psi
6202580EN 2 9/16 x 3 5/8 777 lb·ft 7276.2 lbs 2132.4 psi
6202582EN 2 5/8 x 3 5/8 795.6 lb·ft 7276.2 lbs 2132.4 psi
6202584EN 2 11/16 x 3 5/8 814.8 lb·ft 7276.2 lbs 2132.4 psi
6202586EN 2 3/4 x 3 5/8 834 lb·ft 7276.2 lbs 2132.4 psi
6202590EN 2 13/16 x 3 7/8 871.2 lb·ft 7436.4 lbs 1939.8 psi
6202592EN 2 7/8 x 3 7/8 891 lb·ft 7436.4 lbs 1939.8 psi
6202594EN 2 15/16 x 3 7/8 910.2 lb·ft 7436.4 lbs 1939.8 psi
6202596EN 3 x 3 7/8 929.4 lb·ft 7436.4 lbs 1939.8 psi
6202120DC 5/8 x 1 1/2 180.4 lb·ft 6910.2 lbs 15747.6 psi
6202140DC 11/16 x 1 1/2 198 lb·ft 6910.2 lbs 15747.6 psi
6202160DC 3/4 x 1 1/2 215.6 lb·ft 6910.2 lbs 15747.6 psi
6202190DC 13/16 x 1 3/4 244.2 lb·ft 7209.4 lbs 11016.5 psi
6202200DC 7/8 x 1 3/4 262.9 lb·ft 7209.4 lbs 11016.5 psi
6202220DC 15/16 x 1 3/4 281.6 lb·ft 7209.4 lbs 11016.5 psi
6202240DC 1 x 1 3/4 300.3 lb·ft 7209.4 lbs 11016.5 psi
6202270DC 1 1/16 x 2 366.3 lb·ft 8276.4 lbs 9808.7 psi
6202280DC 1 1/8 x 2 388.3 lb·ft 8276.4 lbs 9808.7 psi
6202300DC 1 3/16 x 2 409.2 lb·ft 8276.4 lbs 9808.7 psi
6202320DC 1 1/4 x 2 431.2 lb·ft 8276.4 lbs 9808.7 psi
6202350DC 1 5/16 x 2 3/8 453.2 lb·ft 8281.9 lbs 5713.4 psi
6202360DC 1 3/8 x 2 3/8 474.1 lb·ft 8281.9 lbs 5713.4 psi
6202380DC 1 7/16 x 2 3/8 497.2 lb·ft 8281.9 lbs 5713.4 psi
6202400DC 1 1/2 x 2 3/8 518.1 lb·ft 8281.9 lbs 5713.4 psi
6202430DC 1 9/16 x 2 5/8 588.5 lb·ft 9040.9 lbs 5058.9 psi
6202440DC 1 5/8 x 2 5/8 612.7 lb·ft 9040.9 lbs 5058.9 psi
6202460DC 1 11/16 x 2 5/8 635.8 lb·ft 9040.9 lbs 5058.9 psi
6202480DC 1 3/4 x 2 5/8 658.9 lb·ft 9040.9 lbs 5058.9 psi
6202510DC 1 13/16 x 2 7/8 1076.9 lb·ft 14259.3 lbs 6202.9 psi
6202520DC 1 7/8 x 2 7/8 1114.3 lb·ft 14259.3 lbs 6202.9 psi
6202540DC 1 15/16 x 2 7/8 1151.7 lb·ft 14259.3 lbs 6202.9 psi
6202560DC 2 x 2 7/8 1188 lb·ft 14259.3 lbs 6202.9 psi
6202562DC 2 1/16 x 3 1/8 1195.7 lb·ft 13915 lbs 5259.1 psi
6202564DC 2 1/8 x 3 1/8 1232 lb·ft 13915 lbs 5259.1 psi
6202566DC 2 3/16 x 3 1/8 1268.3 lb·ft 13915 lbs 5259.1 psi
6202568DC 2 1/4 x 3 1/8 1304.6 lb·ft 13915 lbs 5259.1 psi
6202570DC 2 5/16 x 3 3/8 1299.1 lb·ft 13486 lbs 4470.4 psi
6202572DC 2 3/8 x 3 3/8 1334.3 lb·ft 13486 lbs 4470.4 psi
6202574DC 2 7/16 x 3 3/8 1369.5 lb·ft 13486 lbs 4470.4 psi
6202576DC 2 1/2 x 3 3/8 1404.7 lb·ft 13486 lbs 4470.4 psi
6202580DC 2 9/16 x 3 5/8 1424.5 lb·ft 13339.7 lbs 3909.4 psi
6202582DC 2 5/8 x 3 5/8 1458.6 lb·ft 13339.7 lbs 3909.4 psi
6202584DC 2 11/16 x 3 5/8 1493.8 lb·ft 13339.7 lbs 3909.4 psi
6202586DC 2 3/4 x 3 5/8 1529 lb·ft 13339.7 lbs 3909.4 psi
6202590DC 2 13/16 x 3 7/8 1597.2 lb·ft 13633.4 lbs 3556.3 psi
6202592DC 2 7/8 x 3 7/8 1633.5 lb·ft 13633.4 lbs 3556.3 psi
6202594DC 2 15/16 x 3 7/8 1668.7 lb·ft 13633.4 lbs 3556.3 psi
6202596DC 3 x 3 7/8 1703.9 lb·ft 13633.4 lbs 3556.3 psi
6990120 5/8 x 1 1/2 49.2 lb·ft 1884.6 lbs 4294.8 psi
6990140 11/16 x 1 1/2 54 lb·ft 1884.6 lbs 4294.8 psi
6990160 3/4 x 1 1/2 58.8 lb·ft 1884.6 lbs 4294.8 psi
6990190 13/16 x 1 3/4 66.6 lb·ft 1966.2 lbs 3004.5 psi
6990200 7/8 x 1 3/4 71.7 lb·ft 1966.2 lbs 3004.5 psi
6990220 15/16 x 1 3/4 76.8 lb·ft 1966.2 lbs 3004.5 psi
6990240 1 x 1 3/4 81.9 lb·ft 1966.2 lbs 3004.5 psi
6990270 1 1/16 x 2 99.9 lb·ft 2257.2 lbs 2675.1 psi
6990280 1 1/8 x 2 105.9 lb·ft 2257.2 lbs 2675.1 psi
6990300 1 3/16 x 2 111.6 lb·ft 2257.2 lbs 2675.1 psi
6990320 1 1/4 x 2 117.6 lb·ft 2257.2 lbs 2675.1 psi
6990350 1 5/16 x 2 3/8 123.6 lb·ft 2258.7 lbs 1558.2 psi
6990360 1 3/8 x 2 3/8 129.3 lb·ft 2258.7 lbs 1558.2 psi
6990380 1 7/16 x 2 3/8 135.6 lb·ft 2258.7 lbs 1558.2 psi
6990400 1 1/2 x 2 3/8 141.3 lb·ft 2258.7 lbs 1558.2 psi
6990430 1 9/16 x 2 5/8 160.5 lb·ft 2465.7 lbs 1379.7 psi
6990440 1 5/8 x 2 5/8 167.1 lb·ft 2465.7 lbs 1379.7 psi
6990460 1 11/16 x 2 5/8 173.4 lb·ft 2465.7 lbs 1379.7 psi
6990480 1 3/4 x 2 5/8 179.7 lb·ft 2465.7 lbs 1379.7 psi
6990510 1 13/16 x 2 7/8 293.7 lb·ft 3888.9 lbs 1691.7 psi
6990520 1 7/8 x 2 7/8 303.9 lb·ft 3888.9 lbs 1691.7 psi
6990540 1 15/16 x 2 7/8 314.1 lb·ft 3888.9 lbs 1691.7 psi
6990560 2 x 2 7/8 324 lb·ft 3888.9 lbs 1691.7 psi
6990562 2 1/16 x 3 1/8 326.1 lb·ft 3795 lbs 1434.3 psi
6990564 2 1/8 x 3 1/8 336 lb·ft 3795 lbs 1434.3 psi
6990566 2 3/16 x 3 1/8 345.9 lb·ft 3795 lbs 1434.3 psi
6990568 2 1/4 x 3 1/8 355.8 lb·ft 3795 lbs 1434.3 psi
6990570 2 5/16 x 3 3/8 354.3 lb·ft 3678 lbs 1219.2 psi
6990572 2 3/8 x 3 3/8 363.9 lb·ft 3678 lbs 1219.2 psi
6990574 2 7/16 x 3 3/8 373.5 lb·ft 3678 lbs 1219.2 psi
6990576 2 1/2 x 3 3/8 383.1 lb·ft 3678 lbs 1219.2 psi
6990580 2 9/16 x 3 5/8 388.5 lb·ft 3638.1 lbs 1066.2 psi
6990582 2 5/8 x 3 5/8 397.8 lb·ft 3638.1 lbs 1066.2 psi
6990584 2 11/16 x 3 5/8 407.4 lb·ft 3638.1 lbs 1066.2 psi
6990586 2 3/4 x 3 5/8 417 lb·ft 3638.1 lbs 1066.2 psi
6990590 2 13/16 x 3 7/8 435.6 lb·ft 3718.2 lbs 969.9 psi
6990592 2 7/8 x 3 7/8 445.5 lb·ft 3718.2 lbs 969.9 psi
6990594 2 15/16 x 3 7/8 455.1 lb·ft 3718.2 lbs 969.9 psi
6990596 3 x 3 7/8 464.7 lb·ft 3718.2 lbs 969.9 psi
