Square Baler Gearbox

The Square Baler Gearbox is a crucial component of a square baler, an agricultural machine used for compressing cut crops into compact, easy-to-handle square bales. The gearbox’s primary function is to transfer and regulate power from the tractor to the baler’s operational mechanisms. Here’s how the Square Baler Gearbox works:

1. Power Input:

The gearbox is connecting to the tractor’s Power Take-Off (PTO) shaft. The PTO provides rotational power from the tractor’s engine to the baler. PTO Input Shaft: The gearbox receives mechanical power through its input shaft, which is connecting to the PTO shaft of the tractor.

2. Gear Operation:

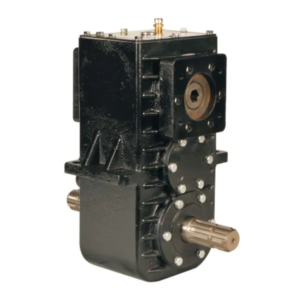

Inside the gearbox, the power from the PTO shaft engages a series of gears. These gears are precision-engineered to handle the required torque and speed for the baling process. Speed and Torque Modification: The gears within the FK263 gearbox modify the speed and torque received from the tractor’s PTO. The gearbox design ensures that the output speed and torque are optimized for the baler’s operations.

3. Power Output:

Transmission to Baler Components: the modified power is transmitted from the gearbox’s output shaft to the various components of the baler. This includes the plunger that compresses the crop material, the pickup mechanism that gathers the crops, and the knotters that tie the bales.The gearbox ensures a consistent and smooth transfer of power, which is crucial for the synchronized operation of the baler components. This results in efficiently formed, uniform square bales.
