Square Baler Gearbox FK157 for Straw Chopper
The Square Baler Gearbox FK157 is a specialized gearbox designed for use in square balers with integrated straw choppers, a critical feature in modern agricultural machinery for crop processing and bale preparation. The FK157 Square Baler Gearbox is responsible for transmitting mechanical power from the tractor’s Power Take-Off (PTO) to the baler’s operational components, including the chopping mechanism that processes the straw or other crop residues. It regulates the operational speed of the chopping mechanism, ensuring that it functions at the correct speed to efficiently chop the straw into the desired size, which is crucial for the quality and uniformity of the bales.
Square Baler Gearbox FK157 for Straw Chopper

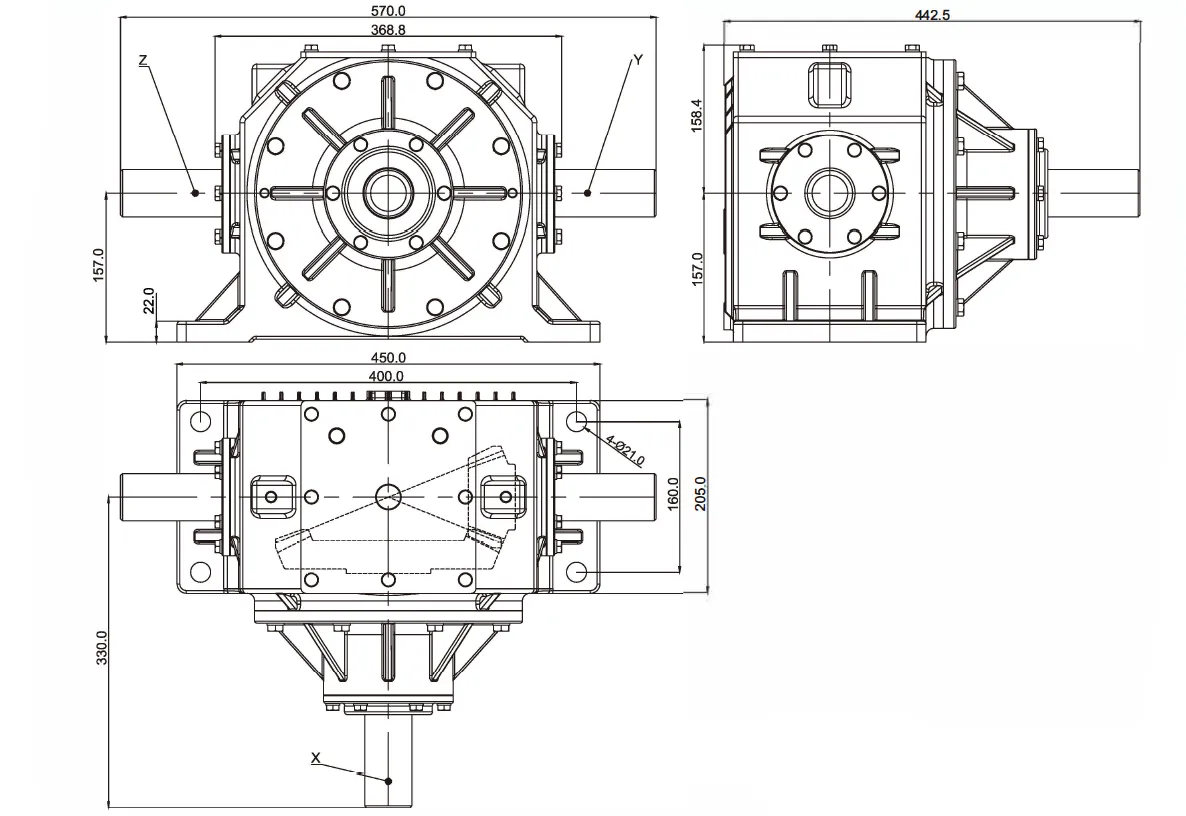

Straw Chopper Square Baler Gearbox FK157 Dimensions

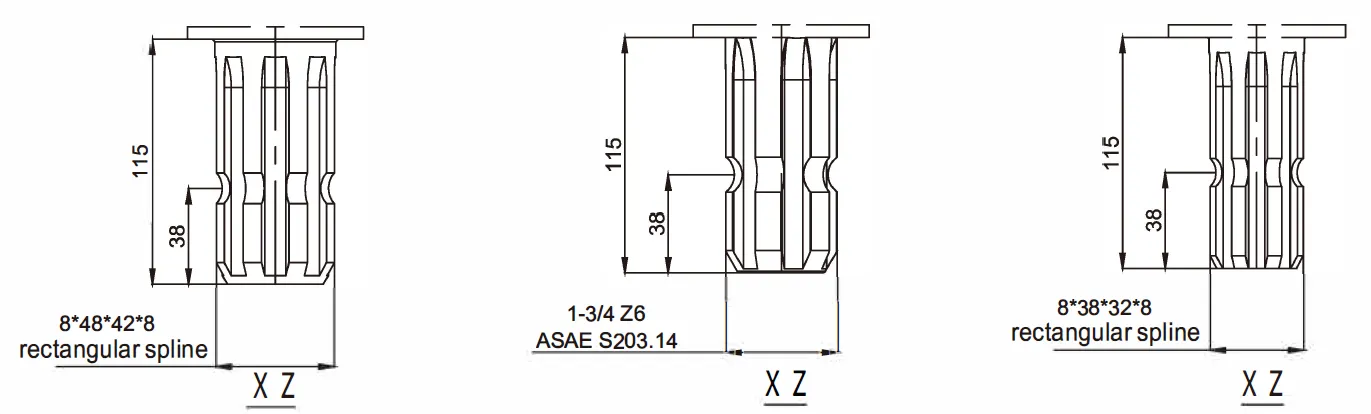

Shaft Dimensions
Technical Data
| i | Suitable | Rpm input | Rpm output | KW(Nom) | KW(Max) | Toothing | |
| r/min | r/min | hp | hp | ||||
| Speed increase | 1:2.46 | Straw chopper, etc | 540 | 1328.4 | 180 | 700 | Gleason Helical Teeth |
| Speed increase | 1:2.07 | 720 | 1190.4 | 180 | 700 | ||
| Remark: If you have any special require feel free let me know, we also accept custom. | |||||||
The Straw Chopper Square Baler Gearbox is a specialized gearbox designed for use in square balers with integrated straw choppers. A critical feature in modern agricultural machinery for crop processing and bale preparation. This gearbox plays a vital role in ensuring the smooth and efficient functioning of the baler’s chopping mechanism. Which is essential for the proper processing of straw and other crop residues.
Straw Chopper Square Baler Gearbox is responsible for transmitting mechanical power from the tractor’s Power Take-Off (PTO) to the baler’s operational components. Including the chopping mechanism that processes the straw or other crop residues. It regulates the operational speed of the chopping mechanism. Ensuring that it functions at the correct speed to efficiently chop the straw into the desired size. Which is crucial for the quality and uniformity of the bales.
