Rubber buffers
Sub-Categories & Damping Solutions
Hangzhou Powertrans supplies a comprehensive range of industrial anti-vibration elements engineered to mitigate mechanical noise, shocks, and structural wear. Select your specific configuration based on your structural load and geometry requirements:
-
Cylindrical Rubber Buffers (Types 1 – 5): The industry standard for general multi-directional vibration damping. Available in male/male, male/female, female/female, and single-stud end-stop configurations.
-
Conical & Parabolic Dampers: Engineered for progressive impact absorption. Designed to effectively decelerate heavy loads and absorb multi-angle shocks.
-
Hourglass (Waisted) Buffers: Specially designed for compact spaces and height-constrained installations requiring high lateral stability.
-
Bell-Type Machinery Mounts: Feature specialized heavy-duty damping properties with integrated pull-out protection for critical engine and motor isolation.
-

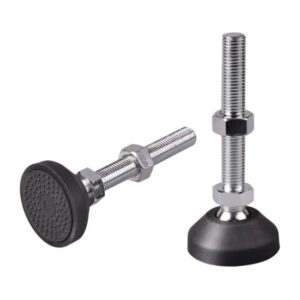

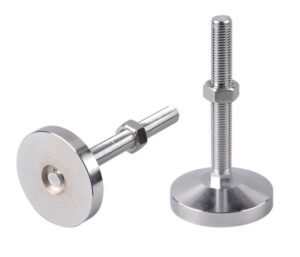

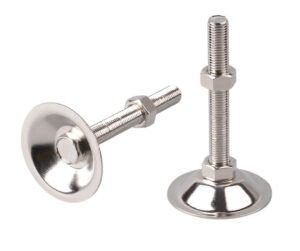

Vibration-Damping Levelling Feet: Built for heavy-load equipment requiring precision leveling, featuring galvanized or stainless steel base plates coupled with high-durability elastomer compounding.
Rubber Buffers (Vibration-Damping Elements) Product Architecture
| Product Type | Industrial Shape | Damping Characteristics | Standard Base Metal Options | Elastomer Compound | Primary Application Target |
| Type 1 | Cylindrical (Male/Male) | General multi-directional vibration damping | Zinc-Plated Steel / AISI 304 / AISI 316 | Natural Rubber (NR) | Electric motors, generators, control panels |
| Type 2 | Cylindrical (Male/Female) | Linear axial and radial shock absorption | Zinc-Plated Steel / AISI 304 / AISI 316 | Natural Rubber (NR) | Pumps, compressors, heavy industrial machinery |
| Type 3 | Cylindrical (Female/Female) | Secure thread-engaged internal isolation | Zinc-Plated Steel / AISI 304 / AISI 316 | Natural Rubber (NR) | Sensitive electronics, measuring devices, HVAC |
| Type 4 | Cylindrical (Single Male Base) | End-stop buffing and impact limiting | Zinc-Plated Steel / AISI 304 / AISI 316 | Natural Rubber (NR) | Conveyor stops, lift gates, crane bumpers |
| Type 5 | Cylindrical (Single Female Base) | Blind-hole mounting surface protection | Zinc-Plated Steel / AISI 304 | Natural Rubber (NR) | Machinery chassis, tooling equipment doors |
| Conical Type | Conical / Parabolic | Progressive absorption under heavy multi-angle shocks | Zinc-Plated Steel / AISI 304 | Natural Rubber (NR) | Suspensions, heavy agricultural equipment |
| Hourglass Type | Hourglass / Waisted | High lateral stability in compact height-constrained layouts | Zinc-Plated Steel / AISI 304 | Natural Rubber (NR) | Precision instrumentation, medical rigs |
| Bell Type | Bell-Shaped / Flanged | High shear defense with pull-out prevention engineering | Galvanized Steel / Stainless Steel | Natural Rubber / MVQ (Silicone) | Marine engines, heavy food processing lines |
| Levelling Feet | Vibration-Damping Foot | Heavy load distribution with precision height micro-adjustment | Galvanized Steel Base / AISI 304 | NR / Grey MVQ (Hygiene Spec) | Food processing plants, medical labs, heavy lathes |
| Product Code | Type Class | A: Diameter (mm) | B: Height (mm) | C: Thread Size | E: Thread Height (mm) | F: Thread Depth (mm) | Shore Hardness | Max Load (N) | Spring Rate (N/mm) |
| RB-T1-010-010-M4 | Type 1 | 10 | 10 | M4 | 10 | N/A | 55 Shore A | 120 | 45 |
| RB-T1-015-015-M5 | Type 1 | 15 | 15 | M5 | 12 | N/A | 55 Shore A | 250 | 70 |
| RB-T2-020-015-M6 | Type 2 | 20 | 15 | M6 | 18 | 6 | 55 Shore A | 400 | 110 |
| RB-T2-025-020-M6 | Type 2 | 25 | 20 | M6 | 18 | 6 | 60 Shore A | 650 | 150 |
| RB-T3-030-020-M8 | Type 3 | 30 | 20 | M8 | N/A | 8 | 55 Shore A | 950 | 210 |
| RB-T3-040-030-M8 | Type 3 | 40 | 30 | M8 | N/A | 8 | 55 Shore A | 1,500 | 280 |
| RB-T4-050-030-M10 | Type 4 | 50 | 30 | M10 | 28 | N/A | 60 Shore A | 2,200 | 420 |
| RB-T4-075-040-M12 | Type 4 | 75 | 40 | M12 | 37 | N/A | 55 Shore A | 4,500 | 680 |
| RB-T5-100-050-M16 | Type 5 | 100 | 50 | M16 | N/A | 16 | 60 Shore A | 8,500 | 1,050 |
