BA Bevel Gearbox
This device is a manual device directly installed on valves such as gate valves, butterfly valves, ball valves and stop valves. It adopts spiral bevel gears and planar thrust bearing shafts, featuring smooth operation, high torque, low noise and high efficiency. At all joints, a full-sealed treatment with sealing gaskets is adopted, achieving waterproof and oil-proof leakage prevention effects, with a protection level of IP65. The handwheel and valve stem cover can be customized according to user requirements. According to the usage requirements and environment of various valves, there are single-stage live connection, double-stage live connection, and double-stage handwheel drive products.
BA Series Bevel Gearbox
Technical Parameters
| Model | BA-000 | BA-00 | BA-0 | BA-1 | BA-2 | BA-3 | BAA-3 |
| Gear Ratio | 2.35:1 | 3:01 | 3.6:1 | 4.5:1 | 5.2:1 | 5.6:1 | 23:01 |
| Max Torque (Nm) | 360 | 480 | 735 | 1470 | 2940 | 4000 | 6000 |
| Max Thrust (N) | 43000 | 64000 | 98000 | 196000 | 340000 | 490000 | 630000 |
| Max Stem Diameter (mm) | 25 | 30 | 40 | 52 | 70 | 90 | 110 |
| Copper Nut | – | – | – | – | – | – | – |
| Gate Valve (DN) | 50 | 80-100 | 150-200 | 250-400 | 450-700 | 800-1000 | 1200 |
| Globe Valve (DN) | 50 | 80 | 100-150 | 200-250 | 300-350 | 400-500 | 550-650 |
| Reference Weight (kg) | 15 | 22 | 28 | 54 | 110 | 198 | 320 |
Connection Dimensions
| Model | BA-000 | BA-00 | BA-0 | BA-1 | BA-2 | BA-3 | BAA-3 |
| Flange Code | F12 | F14 | F16 | F25 | F30 | F35 | F35 |
| Flange Outer Diameter (D) | 150 | 175 | 210 | 300 | 350 | 415 | 415 |
| Bolt Circle Center (D0) | 125 | 140 | 165 | 254 | 298 | 356 | 356 |
| PCD (N-H-DP) | 4-M12-18 | 4-M16-24 | 4-M20-30 | 8-M16-24 | 8-M20-30 | 8-M30-45 | 8-M30-45 |
| Convex Face (D1×h) | 85×3 | 100×4 | 130×5 | 200×5 | 230×5 | 260×5 | 260×5 |

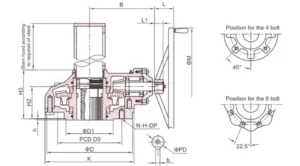

Overall Dimensions
| Model | BA-000 | BA-00 | BA-0 | BA-1 | BA-2 | BA-3 | BAA-3 |
| B | 150 | 150 | 170 | 233 | 306 | 370 | 395 |
| H2 | 80 | 80 | 85 | 97 | 142 | 160 | 178 |
| H3 | 125 | 125 | 155 | 175 | 210 | 280 | 290 |
| L | 40 | 75 | 92 | 107 | 107 | 118 | 118 |
| K | 155 | 180 | 210 | 285 | 390 | 410 | 510 |
| Handwheel PD | 28 | 28 | 28 | 32 | 32 | 38 | 38 |
| Handwheel Keyway (b) | 8×7 | 8×7 | 8×7 | 10×8 | 10×8 | 10×8 | 10×8 |
| Handwheel L1 | 40 | 40 | 40 | 50 | 55 | 55 | 55 |
| Handwheel M | 300 | 300 | 400 | 460 | 520 | 600 | 600 |
