YZ-S Worm Gearbox
This series is a 90° part-turn manual actuating device, suitable for valves such as ball valves, butterfly valves, plug valves, and rotary ball valves. The housing adopts precision casting, featuring a novel style and an attractive appearance. The device uses worm gear transmission, and the worm gear pair provides self-locking. It utilizes tapered roller bearings, which make the transmission smoother and more efficient. The flanges fully comply with the ISO 5211 international standard, making it easier to match with valves. The device offers IP65 protection rating, and for special environments, it can also achieve IP68 rating as well as submerged mode.
YZ-S Series Worm Gearbox
Technical Parameters
| Model | YZ-1-S | YZ-2-S | YZ-2J-S | YZ-3-S | YZ-3J-S | YZ-4-S | YZ-4J-S | YZ-5-S | YZ-5J-S | YZ-6-S | YZ-6J-S |
| Gear Ratio | 78:1 | 78:1 | 127:1 | 200:1 | 375:1 | 495:1 | 798:1 | 868:1 | 938:1 | 1100:1 | 2067:1 |
| Max Torque (N·m) | 1300 | 1600 | 3000 | 4500 | 7500 | 12000 | 16500 | 23000 | 28000 | 32000 | 48000 |
| Max Torque (kgf·m) | 132 | 204 | 306 | 612 | 765 | 1124 | 1684 | 2346 | 2857 | 3265 | 4898 |
| Input Torque (N·m) | 69 | 85 | 91 | 90 | 85 | 93 | 86 | 110 | 106 | 104 | 106 |
| Model | YZ-7-S | YZ-7X-S | YZ-7J-S | YZ-8-S | YZ-8J-S | YZ-9-S | YZ-9J-S | YZ-10-S | YZ-11-S | YZ-12-S |
| Gear Ratio | 2260:1 | 3030:1 | 3960:1 | 5535:1 | 5900:1 | 7760:1 | 8526:1 | 9660:1 | 14130:1 | 19320:1 |
| Max Torque (N·m) | 63000 | 80000 | 100000 | 140000 | 190000 | 250000 | 350000 | 400000 | 650000 | 850000 |
| Max Torque (kgf·m) | 6428 | 8163 | 10204 | 14285 | 19388 | 25510 | 35714 | 40816 | 66326 | 86734 |
| Input Torque (N·m) | 110 | 110 | 110 | 110 | 140 | 140 | 180 | 180 | 200 | 200 |
Connection Dimensions
| Model | YZ-1-S | YZ-2-S | YZ-2J-S | YZ-3-S | YZ-3J-S | YZ-4-S | YZ-4J-S | YZ-5-S | YZ-5J-S | YZ-6-S | YZ-6J-S |
| Flange Class | F12 | F14 | F16 | F16 | F20 | F25 | F30 | F30 | F35 | F35 | F40 |
| Flange Outer Diameter (D) | 150 | 175 | 210 | 210 | 250 | 300 | 350 | 350 | 415 | 415 | 475 |
| Pitch Circle Diameter (D0) | 125 | 140 | 165 | 165 | 205 | 254 | 298 | 298 | 356 | 356 | 406 |
| Bolt Specification (N-H-DP) | 4-M12-18 | 4-M16-20 | 4-M20-30 | 4-M20-30 | 8-M16-24 | 8-M24-30 | 8-M20-30 | 8-M30-30 | 8-M30-45 | 8-M30-40 | 8-M36-54 |
| Raised Face (D1×h) | 85×3 | 100×4 | 130×5 | 130×5 | 140×5 | 200×5 | 230×5 | 230×5 | 260×5 | 260×5 | 300×8 |
| Max Stem Size (mm) | 42×8 | 50×9 | 60×11 | 60×11 | 75×14 | 90×16 | 110×28 | 110×28 | 120×32 | 120×32 | 145×40 |
| Max Stem Diameter (mm) | 12×8 | 14×9 | 18×11 | 18×11 | 22×14 | 25×16 | 28×16 | 28×16 | 32×18 | 32×18 | 40×22 |
| Model | YZ-7-S | YZ-7X-S | YZ-7J-S | YZ-8-S | YZ-8J-S | YZ-9-S | YZ-9J-S | YZ-10-S | YZ-11-S | YZ-12-S |
| Flange Class | F40 | F48 | F48 | F48 | F60 | F60 | F60 | F80 | F100 | F100 |
| Flange Outer Diameter (D) | 475 | 560 | 560 | 560 | 686 | 686 | 686 | 900 | 1200 | 1200 |
| Pitch Circle Diameter (D0) | 406 | 483 | 483 | 483 | 603 | 603 | 603 | 813 | 1042 | 1042 |
| Bolt Specification (N-H-DP) | 8-M36-54 | 12-M36-54 | 12-M36-54 | 12-M36-54 | 20-M36-54 | 20-M36-54 | 20-M36-54 | 20-M36-65 | 32-M42-65 | 32-M42-65 |
| Raised Face (D1×h) | 300×8 | 370×8 | 370×8 | 370×8 | 470×8 | 470×8 | 470×8 | 670×10 | 870×10 | 870×10 |
| Max Stem Size (mm) | 160×40 | 170×45 | 180×45 | 200×45 | 210×50 | 220×50 | 270×63 | 300×70 | 380×80 | 420×90 |
| Max Stem Diameter (mm) | 40×22 | 45×25 | 45×25 | 50×28 | 50×28 | 50×28 | 63×32 | 70×36 | 80×40 | 90×45 |

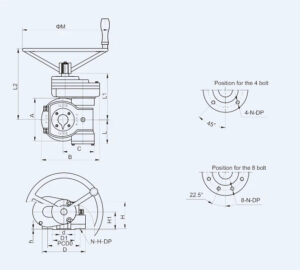

Overall Dimensions
| Model | YZ-1-S | YZ-2-S | YZ-2J-S | YZ-3-S | YZ-3J-S | YZ-4-S | YZ-4J-S | YZ-5-S | YZ-5J-S | YZ-6-S | YZ-6J-S |
| A | 150 | 175 | 210 | 225 | 300 | 340 | 350 | 390 | 430 | 470 | 560 |
| B | 204 | 226 | 245 | 300 | 331 | 430 | 418 | 468 | 488 | 488 | 595 |
| C | 110 | 120 | 140 | 125 | 186 | 222 | 243 | 232 | 275 | 298 | 357 |
| L | 85 | 95 | 115 | 122 | 148 | 167 | 185 | 187 | 225 | 232 | 280 |
| L1 | 161 | 171 | 244 | 249 | 305 | 317.5 | 371.5 | 370.5 | 406.5 | 373.5 | 459 |
| L2 | 251 | 261 | 334 | 339 | 405 | 417.5 | 471.5 | 470.5 | 506.5 | 573.5 | 659 |
| H | 105 | 114 | 132 | 154 | 155 | 185 | 185 | 190 | 195 | 200 | 243 |
| H1 | 68 | 78 | 93 | 106 | 105 | 127 | 122 | 120 | 132 | 127 | 145 |
| ΦM | 300 | 350 | 400 | 400 | 500 | 500 | 500 | 600 | 600 | 650 | 650 |
| Model | YZ-7-S | YZ-7X-S | YZ-7J-S | YZ-8-S | YZ-8J-S | YZ-9-S | YZ-9J-S | YZ-10-S | YZ-11-S | YZ-12-S |
| A | 590 | 620 | 660 | 730 | 770 | 800 | 1030 | 1150 | 1550 | 1830 |
| B | 637 | 765 | 705 | 735 | 895 | 910 | 995 | 1290 | 1405 | 1730 |
| C | 375 | 395 | 395 | 405 | 452 | 525 | 535 | 680 | 710 | 955 |
| L | 295 | 315 | 340 | 365 | 395 | 420 | 530 | 475 | 770 | 820 |
| L1 | 469 | 757 | 777.5 | 787.5 | 894 | 915 | 1016 | 1046 | 1431 | 1676 |
| L2 | 669 | 957 | 977.5 | 987.5 | 1094 | 1115 | 1216 | 1246 | 1631 | 1876 |
| H | 244 | 270 | 270 | 292 | 305 | 380 | 400 | 428 | 415 | 555 |
| H1 | 153 | 167 | 193 | 208 | 215 | 250 | 261 | 263 | 355 | 410 |
| ΦM | 700 | 750 | 750 | 750 | 800 | 800 | 1200 | 1000 | 1200 | 1200 |
