Center Flanged Linear Ball Bearing
Center Flanged Linear Ball Bearing is widely used in Japan and other countries. The key advantage of the centrally located flange is superior load distribution and structural balance, allowing workpieces to be mounted near the bearing’s center for enhanced stability. Available in round Rectangular and oval flange shapes, and constructed in either synthetic resin or stainless steel, they provide versatile and reliable linear motion solutions.
| Nominal shaft diameter mm |
Resin Retainer |
Stainless Steel Retainer |
Major dimensions | Eccentricity μm |
Squareness μm |
Basic load rating | Weight g |
|||||||||||
| dr | D | L | Flange | dynamic C(N) | Static Co(N) | |||||||||||||

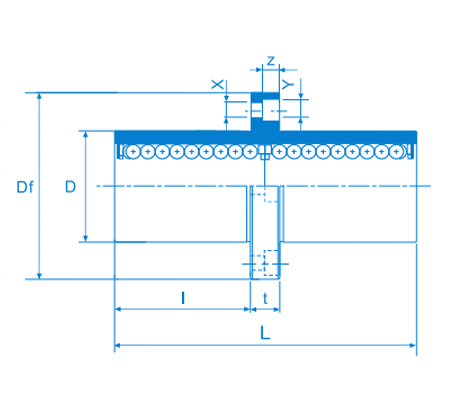

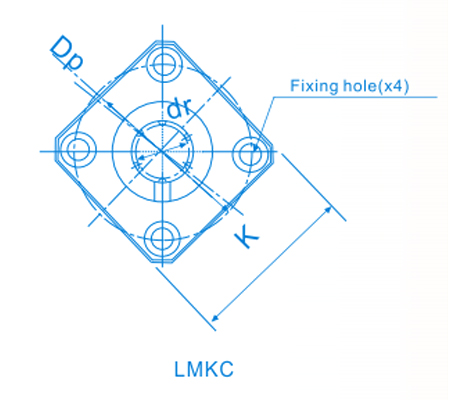

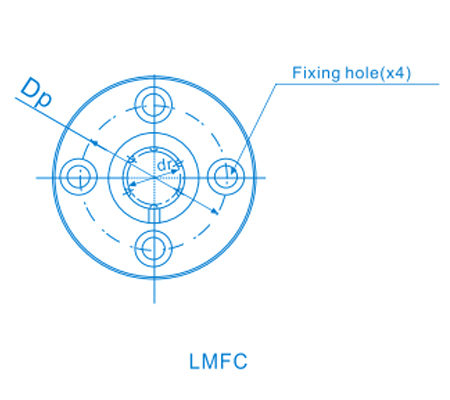

| LMFC/KC…UU | LMFC/KC…A | mm | mm | mm | I mm | Df mm | K mm | t mm | Dp mm | X mm | Y mm | Z mm | ||||||
| 6 |
LMFC/KC6UU |
LMFC/KC6-A | 6 | 12 | 35 | 15 | 28 | 22 | 5 | 20 | 3.5 | 6 | 3.1 | 15 | 15 | 323 | 530 | 31 25 |
| 8 |
LMFC/KC8UU |
LMFC/KC8-A | 8 | 15 | 45 | 20 | 32 | 25 | 5 | 24 | 3.5 | 6 | 3.1 | 431 | 784 | 51 43 |
||
| 10 |
LMFC/KC10UU |
LMFC/KC10-A | 10 | 19 | 55 | 24.5 | 40 | 30 | 6 | 29 | 4.5 | 7.5 | 4.1 | 588 | 1,100 | 98 78 |
||
| 12 |
LMFC/KC12UU |
LMFC/KC12-A | 12 | 21 | 57 | 25.5 | 42 | 32 | 6 | 32 | 4.5 | 7.5 | 4.1 | 813 | 1,570 | 110 90 |
||
| 13 |
LMFC/KC13UU |
13 | 23 | 61 | 27.5 | 43 | 34 | 6 | 33 | 4.5 | 7.5 | 4.1 | 813 | 1,570 | 130 108 |
|||
| 16 |
LMFC/KC16UU |
LMFC/KC16-A | 16 | 28 | 70 | 32 | 48 | 37 | 6 | 38 | 4.5 | 7.5 | 4.1 | 1,230 | 2,350 | 190 165 |
||
| 20 |
LMFC/KC20UU |
LMFC/KC20-A | 20 | 32 | 80 | 36 | 54 | 42 | 8 | 43 | 5.5 | 9 | 5.1 | 20 | 20 | 1,400 | 2,740 | 260 225 |
| 25 |
LMFC/KC25UU |
LMFC/KC25-A | 25 | 40 | 112 | 52 | 62 | 50 | 8 | 51 | 5.5 | 9 | 5.1 | 1,560 | 3,140 | 540 500 |
||
| 30 |
LMFC/KC30UU |
LMFC/KC30-A | 30 | 45 | 123 | 56.5 | 74 | 58 | 10 | 60 | 6.6 | 11 | 6.1 | 2,490 | 5,490 | 680 590 |
||
| 35 |
LMFC/KC35UU |
LMFC/KC35-A | 35 | 52 | 135 | 62.5 | 82 | 64 | 10 | 67 | 6.6 | 11 | 6.1 | 25 | 25 | 2,650 | 6,270 | 1,020 930 |
| 40 |
LMFC/KC40UU |
LMFC/KC40-A | 40 | 60 | 151 | 69 | 96 | 75 | 13 | 78 | 9 | 14 | 8.1 | 3,430 | 8,040 | 1,570 1,380 |
||
| 50 |
LMFC/KC50UU |
LMFC/KC50-A | 50 | 80 | 192 | 89.5 | 116 | 92 | 13 | 98 | 9 | 14 | 8.1 | 6,080 | 15,900 | 3.600 3,400 |
||
| 60 |
LMFC/KC60UU |
LMFC/KC60-A | 60 | 90 | 209 | 95.5 | 134 | 106 | 18 | 112 | 11 | 17 | 11.1 | 30 | 30 | 7,550 | 20,000 | 4,500 4,060 |
| Nominal shaft diameter mm |
Resin Retainer |
Stainless Steel Retainer |
Major dimensions and tolerance | Eccentricity μm |
Squareness μm |
Basic load rating | Weight g |
||||||||||||
| dr | D | L | Flange | dynamic C(N) | Static Co(N) | ||||||||||||||

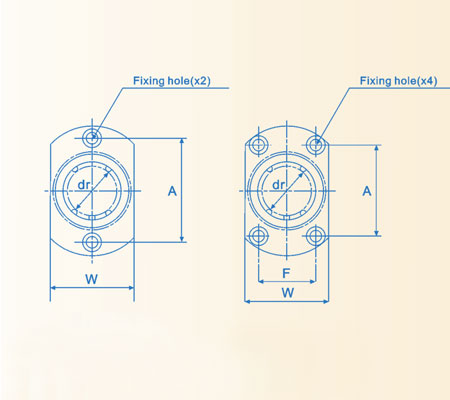

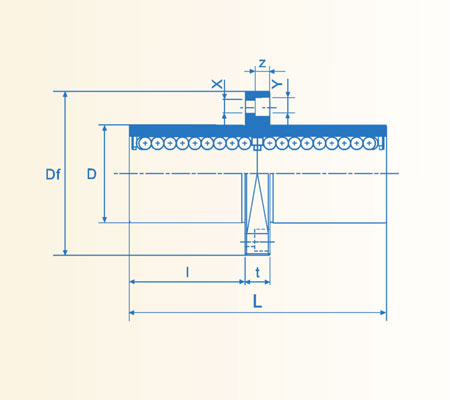

| LMHCUU | LMHC…A | mm | mm | mm | I mm | Df mm | W mm | t mm | A mm | F mm | X mm | Y mm | Z mm | ||||||
| 6 |
LMHCC6UU |
6 | 12 | 35 | 15 | 28 | 18 | 5 | 20 | — | 3.5 | 6 | 3.1 | 15 | 15 | 323 | 529 | 28 | |
| 8 |
LMHC8UU |
LMHC8-A | 8 | 15 | 45 | 20 | 32 | 21 | 5 | 24 | — | 3.5 | 6 | 3.1 | 431 | 784 | 47 | ||
| 10 |
LMHC10UU |
LMHC10-A | 10 | 19 | 55 | 24.5 | 40 | 25 | 6 | 29 | — | 4.5 | 7.5 | 4.1 | 588 | 1,100 | 90 | ||
| 12 |
LMHC12UU |
LMHC12-A | 12 | 21 | 57 | 25.5 | 42 | 27 | 6 | 32 | — | 4.5 | 7.5 | 4.1 | 813 | 1,570 | 102 | ||
| 13 |
LMHC13UU |
13 | 23 | 61 | 27.5 | 43 | 29 | 6 | 33 | — | 4.5 | 7.5 | 4.1 | 813 | 1,570 | 123 | |||
| 16 |
LMHC16UU |
LMHC16-A | 16 | 28 | 70 | 32 | 48 | 34 | 6 | 31 | 22 | 4.5 | 7.5 | 4.1 | 1,230 | 2,350 | 182 | ||
| 20 |
LMHC20UU |
LMHC20-A | 20 | 32 | 80 | 36 | 54 | 38 | 8 | 36 | 24 | 5.5 | 9 | 5.1 | 20 | 20 | 1,400 | 2,740 | 247 |
| 25 |
LMHC25UU |
LMHC25-A | 25 | 40 | 112 | 52 | 62 | 46 | 8 | 40 | 32 | 5.5 | 9 | 5.1 | 1,560 | 3,140 | 525 | ||
| 30 |
LMHC30UU |
LMHC30-A | 30 | 45 | 123 | 56.5 | 74 | 51 | 10 | 49 | 35 | 6.6 | 11 | 6.1 | 2,490 | 5,490 | 645 | ||
