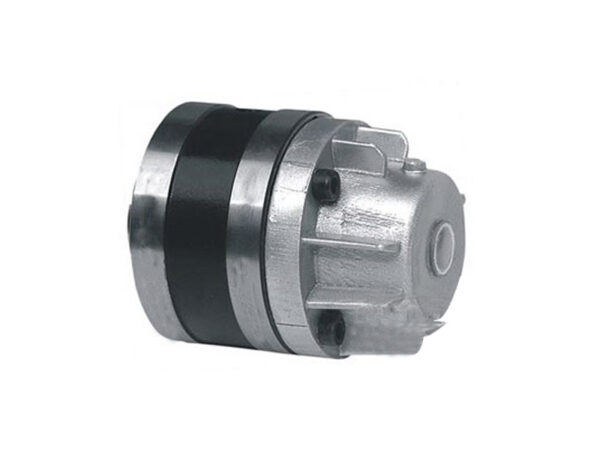

CKZ-D Sprag Type Overrunning Clutch
The CKZ-D series consists of a CKZ-A sprag-type overrunning clutch and an oil reservoir. Only the inner race is designed with a unidirectional function, and the unit comes pre-filled with lubricating oil.
The CKZ-D Sprag Type Overrunning Clutch combines a CKZ-A sprag-type overrunning clutch with an oil reservoir. It features a unidirectional function exclusively in the inner race and comes pre-filled with lubricating oil.
The inner race keys to the shaft, and the unit accommodates horizontal installation.
The CKZ-D Sprag Type Overrunning Clutch serve in applications requiring backstopping or continuous high-speed overrunning of the inner race.

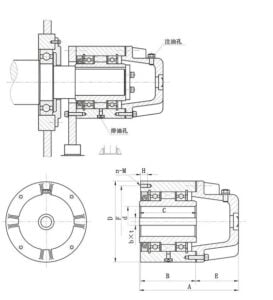

| Type | Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Weight | |||||||||
| (N·M) | (r/min) | d(H7) | D(H7) | A | B | C | F | E | n-M | H | b*t | (kg) | |
| CKZ-D1977 | 185 | 1960 | 19 | 77 | 115 | 60 | 63 | 66 | 53.5 | 4-M6 | 13 | 5*2 | 2 |
| CKZ-D2288 | 317 | 1820 | 22 | 88 | 122 | 67 | 70 | 73 | 53.5 | 4-M8 | 16 | 5*2 | 3 |
| CKZ-D32108 | 953 | 1680 | 32 | 108 | 154 | 86 | 89 | 92 | 66.5 | 4-M8 | 16 | 7*8 | 5.5 |
| CKZ-D50136 | 1847 | 1470 | 50 | 136 | 165 | 92 | 95 | 120 | 71.5 | 6-M8 | 16 | 12*3.5 | 9.5 |
| CKZ-D70180 | 3460 | 1050 | 70 | 180 | 207 | 124 | 127 | 160 | 81.5 | 6-M10 | 20 | 18*6 | 21 |
| CKZ-D85200 | 5590 | 980 | 85 | 200 | 280 | 150 | 153 | 175 | 128.5 | 8-M14 | 25 | 24*6 | 40.3 |
| CKZ-D110250 | 10300 | 910 | 110 | 250 | 298.5 | 155 | 158 | 220 | 142 | 8-M16 | 25 | 28*7 | 50.6 |
| CKZ-D135300 | 14400 | 840 | 135 | 300 | 314.5 | 160 | 165 | 265 | 152 | 10-M16 | 32 | 35*9 | 77.6 |
