ECKZ Box-Type Sprag Overrunning Clutch
The ECKZ Series Box-Type Sprag Overrunning Clutch has bearings and oil seals. It sits in a cast iron housing. The standard lubrication is oil. The outside of the housing gives a cooling effect. The inside holds a lot of oil. This makes the clutch safe for a long time. You do not need to change the oil often.
This model needs flexible couplings at both ends. The couplings connect the power source and the driven part. When the main power source runs, the backup power source can stop. This allows for regular maintenance. You can change the oil without stopping the power source.
This series works as a one-way clutch for dual or backup power sources. It handles high power and high speed. It is good for large industrial fans, pumps, and turbines.
Type |

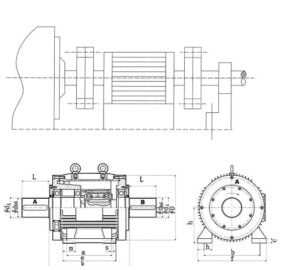

Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Keyway size | Weight | |||||||||||||||
| (N·M) | (r/min) | Width | Height | (kg) | ||||||||||||||||
| Outer race | Inner race | d(h6) | L | K | D | d1 | h | m | n | f | e | a | b | s | c | H | t1 | |||
| ECKZ38 | 288 | 5000 | 3500 | 38 | 80 | 280 | 194 | 45 | 100 | 33.5 | 42 | 200 | 175 | 140 | 160 | 14 | 14 | 10 | 5 | 52.5 |
| ECKZ42 | 612 | 4200 | 2920 | 42 | 110 | 330 | 258 | 55 | 132 | 40 | 55 | 260 | 218 | 178 | 216 | 14 | 16 | 12 | 5 | 69.8 |
| ECKZ65 | 1375 | 3600 | 2430 | 65 | 140 | 430 | 310 | 80 | 160 | 58 | 71.5 | 318 | 260 | 210 | 254 | 18 | 22 | 18 | 7 | 84.6 |
| ECKZ75 | 2250 | 3300 | 2015 | 75 | 140 | 430 | 310 | 80 | 160 | 58 | 71.5 | 318 | 260 | 210 | 254 | 18 | 22 | 20 | 7.5 | 87.2 |
| ECKZ75T | 3312 | 3000 | 1672 | 75 | 140 | 430 | 310 | 80 | 160 | 58 | 71.5 | 318 | 260 | 210 | 254 | 18 | 22 | 20 | 7.5 | 90.3 |
| ECKZ90 | 5000 | 2600 | 1340 | 90 | 170 | 510 | 434 | 95 | 225 | 80.5 | 92 | 436 | 346 | 286 | 356 | 22 | 30 | 25 | 9 | 118.1 |
| ECKZ120 | 9375 | 1900 | 1122 | 120 | 170 | 510 | 434 | 130 | 225 | 80.5 | 92 | 436 | 346 | 286 | 356 | 22 | 30 | 32 | 11 | 120.4 |
| ECKZ120T | 20000 | 1500 | 930 | 120 | 210 | 800 | 610 | 130 | 315 | 100 | 131 | 620 | 550 | 457 | 508 | 30 | 46 | 32 | 11 | 176.5 |
| ECKZ160 | 45000 | 980 | 650 | 160 | 250 | 800 | 610 | 190 | 315 | 100 | 131 | 620 | 550 | 457 | 508 | 30 | 46 | 40 | 13 | 182.3 |
