Conveyor Chains for Steel Mill P500 P500F1 P500F2
Steel mill conveyor chains are used in lumber mills, pulp and plywood mills, bucket elevators, and material handling applications. It provides a cost-effective way of conveying materials. Depending on the chain type, the chain can be heat or induction hardened to improve impact strength and wear resistance.
Conveyor Chains for Steel Mill P500 P500F1 P500F2
Conveyor Chains for Steel Mill P500 P500F1 P500F2 Our company also provides many conveyor chain types. If you need to know more product types and information, such as conveyor chain, you can contact us by email or communicate with our online staff. Looking forward to working with you.
 |
 |

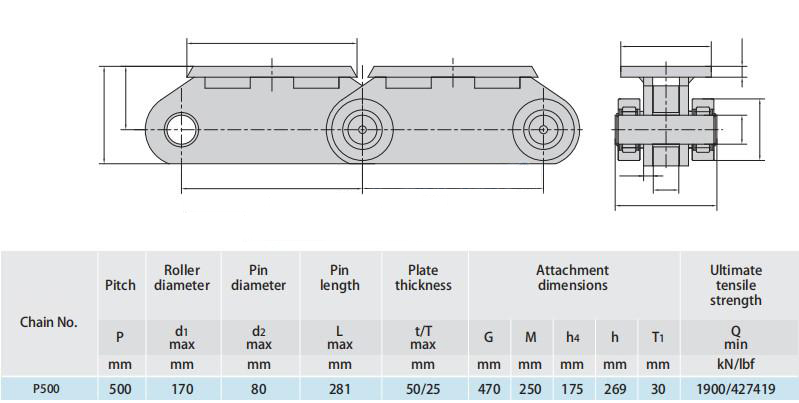

| Chain No. | Pitch (P) | Roller diameter (d1 max) | Pin diameter (d2 max) | Pin length (L max) | Plate thickness (t/T max) | Attachment dimensions (G, m, h4, T1) | Ultimate tensile strength (kN/lbf) |
| P500 | 500 mm | 170 mm | 80 mm | 281 mm | 50/25 mm | G: 470 mm, m: 250 mm, h4: 175 mm, T1: 30 mm | 1900 kN / 427419 lbf |

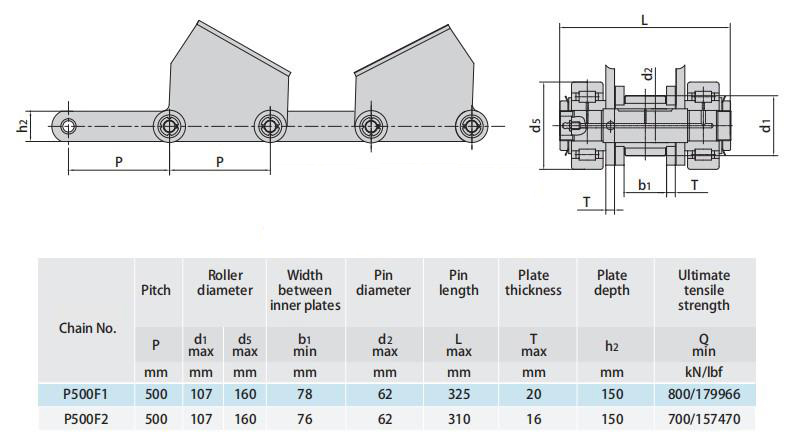

| Chain No. | Pitch (P) | Roller diameter (d1 max) | Width between inner plates (b1 max) | Pin diameter (d2 max) | Pin length (L max) | Plate thickness (T max) | Plate depth (h2) | Ultimate tensile strength (kN/lbf) |
| P500F1 | 500 mm | 107 mm | 78 mm | 62 mm | 325 mm | 20 mm | 150 mm | 800 kN / 179966 lbf |
| P500F2 | 500 mm | 107 mm | 76 mm | 62 mm | 310 mm | 16 mm | 150 mm | 700 kN / 157470 lbf |
