Double Pitch Conveyor Chains with Extended Pins C2052F1 C2052F11 C2050A6 C2062HF63A2F1
Double Pitch Conveyor Chains With Extended Pins have a longer pin shaft than standard roller chains. They are commonly used in light load drives and agricultural applications. These chains are also available in custom lengths and diameters. Double Pitch Chains With Extended Pins can be manufactured with different materials to suit specific applications.
Double Pitch Conveyor Chains with Extended Pins C2052F1 C2052F11 C2050A6 C2062HF63A2F1
Conveyor Chains with Extended Pins C2052F1 With Extended Pins have a longer pin shaft than standard roller chains. They are commonly working in light load drives and agricultural applications. These chains are also available in custom lengths and diameters. Double Pitch Chains With Extended Pins with different materials to suit specific applications.
Constructed on the same principles as single pitch chains, and they meet the same standards. The main difference is that double pitch chains have a longer pin, plate thickness, and link spacing than standard roller chains. These chains are available in C2000 and C2002 series. Double Pitch Chains With Extended Pins can be specified with a normal or heavy plate thickness.
Double Pitch Conveyor Chains With Extended Pins can be ordered with bent or straight attachments, depending on the application. We’re a professional drive chain company, can also provide a customized design for any needs. Some double-pitch chains with extended pins have a stainless steel roller.

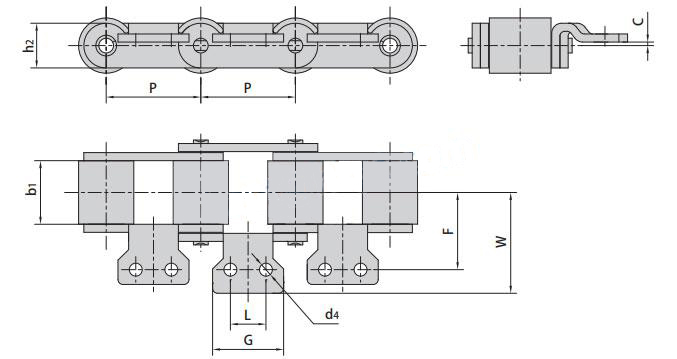

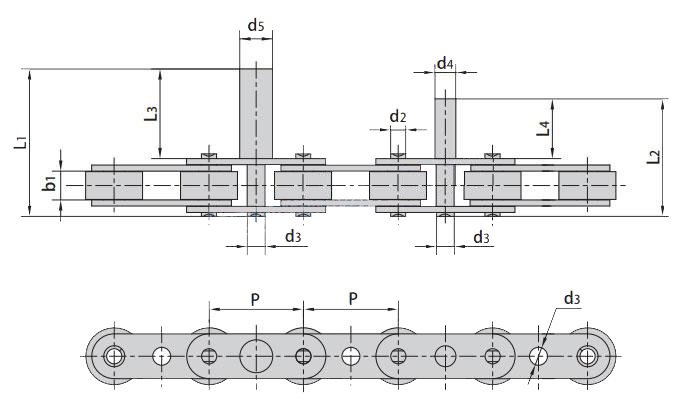

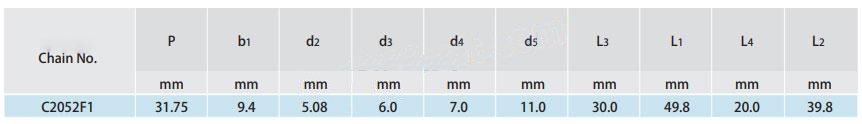

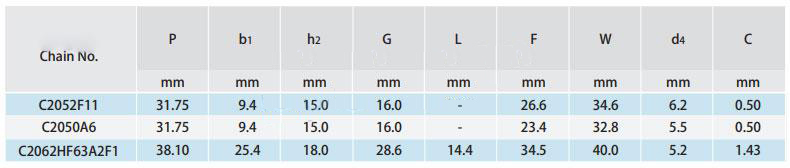

Specifications of C2052F1 C2052F11 C2050A6 C2062HF63A2F1
 |
 |
 |
 |
