DIN 1804 locknuts
DIN 1804 locknuts refer to a standardized type of Slotted Round Nut designed for precision locking applications. They are engineered to improve assembly precision, reduce spindle deflection, resist loosening under vibration, and extend component service life. They are essential fasteners in mechanisms requiring secure, high-strength, and reliable locking.

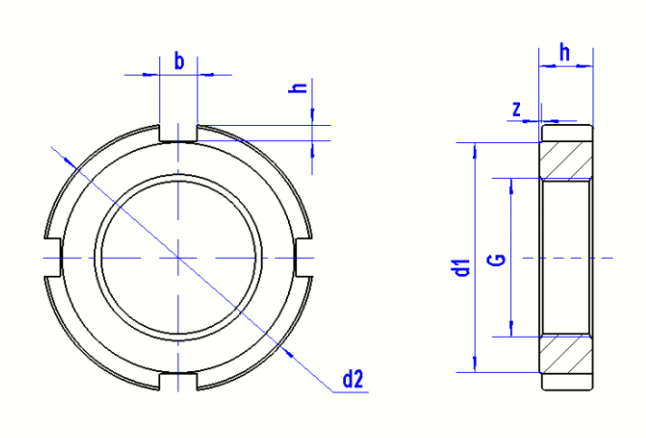

| Designation | Dimensions | Mass kg/100pcs | |||||||
| G | d2 h13 | d1 h13 | h h14 | b | t | slots | z | ||
SPM14 |
M14*1.5 | 30 | 25 | 7 | 5 | 2 | 4 | 0.5 | 2.86 |
SPM16 |
M16*1.5 | 32 | 27 | 7 | 5 | 2 | 4 | 0.5 | 3.14 |
SPM18 |
M18*1.5 | 34 | 28 | 8 | 6 | 2.5 | 4 | 0.5 | 3.8 |
SPM20 |
M20*1.5 | 36 | 30 | 8 | 6 | 2.5 | 4 | 0.5 | 4.13 |
SPM22 |
M22*1.5 | 40 | 34 | 9 | 6 | 2.5 | 4 | 0.5 | 5.9 |
SPM24 |
M24*1.5 | 42 | 36 | 9 | 6 | 2.5 | 4 | 0.5 | 6.3 |
SPM26 |
M26*1.5 | 45 | 38 | 10 | 7 | 3 | 4 | 0.5 | 7.82 |
SPM28 |
M28*1.5 | 50 | 43 | 10 | 7 | 3 | 4 | 0.5 | 10.1 |
SPM30 |
M30*1.5 | 50 | 43 | 10 | 7 | 3 | 4 | 0.5 | 9.35 |
SPM32 |
M32*1.5 | 52 | 45 | 11 | 7 | 3 | 4 | 0.5 | 10.8 |
SPM35 |
M35*1.5 | 55 | 48 | 11 | 7 | 3 | 4 | 0.5 | 11.7 |
SPM38 |
M38*1.5 | 58 | 50 | 11 | 8 | 3.5 | 4 | 0.5 | 12.3 |
SPM40 |
M40*1.5 | 62 | 54 | 12 | 8 | 3.5 | 4 | 0.5 | 15.9 |
SPM42 |
M42*1.5 | 62 | 54 | 12 | 8 | 3.5 | 4 | 0.5 | 14.7 |
SPM45 |
M45*1.5 | 68 | 60 | 12 | 8 | 3.5 | 6 | 0.5 | 18.1 |
SPM48 |
M48*1.5 | 75 | 67 | 13 | 8 | 3.5 | 6 | 0.5 | 25.3 |
SPM50 |
M50*1.5 | 75 | 67 | 13 | 8 | 3.5 | 6 | 0.5 | 23.8 |
SPM52 |
M52*1.5 | 80 | 70 | 13 | 10 | 4 | 6 | 0.5 | 27.5 |
SPM55 |
M55*1.5 | 80 | 70 | 13 | 10 | 4 | 6 | 0.5 | 25.1 |
SPM58 |
M58*1.5 | 90 | 80 | 13 | 10 | 4 | 6 | 0.5 | 36 |
SPM60 |
M60*1.5 | 90 | 80 | 13 | 10 | 4 | 6 | 0.5 | 34.1 |
SPM62 |
M62*1.5 | 95 | 85 | 14 | 10 | 4 | 6 | 0.5 | 42.6 |
SPM65 |
M65*1.5 | 95 | 85 | 14 | 10 | 4 | 6 | 0.5 | 39.4 |
SPM68 |
M68*1.5 | 100 | 90 | 14 | 10 | 4 | 6 | 0.5 | 44.4 |
SPM70 |
M70*1.5 | 100 | 90 | 14 | 10 | 4 | 6 | 0.5 | 41.8 |
SPM72 |
M72*1.5 | 110 | 100 | 14 | 10 | 4 | 6 | 0.5 | 57.7 |
SPM75 |
M75*1.5 | 110 | 100 | 14 | 10 | 4 | 6 | 0.5 | 54 |
SPM80 |
M80*2 | 115 | 105 | 16 | 10 | 4 | 6 | 1 | 57.6 |
SPM85 |
M85*2 | 120 | 110 | 16 | 10 | 4 | 6 | 1 | 68 |
SPM90 |
M90*2 | 130 | 120 | 16 | 10 | 4 | 6 | 1 | 84.3 |
SPM95 |
M95*2 | 135 | 120 | 16 | 12 | 5 | 6 | 1 | 86 |
SPM100 |
M100*2 | 145 | 130 | 16 | 12 | 5 | 6 | 1 | 104 |
SPM105 |
M105*2 | 155 | 140 | 16 | 12 | 5 | 6 | 1 | 123 |
SPM110 |
M110*2 | 155 | 140 | 16 | 12 | 5 | 6 | 1 | 113 |
SPM115 |
M115*2 | 165 | 150 | 18 | 12 | 5 | 6 | 1 | 150 |
SPM120 |
M120*2 | 165 | 150 | 18 | 12 | 5 | 6 | 1 | 137 |
| SPM125 | M125*2 | 180 | 165 | 18 | 12 | 5 | 8 | 1 | 178 |
SPM130 |
M130*3 | 180 | 165 | 18 | 12 | 5 | 8 | 1 | 167 |
SPM140 |
M140*3 | 195 | 180 | 18 | 12 | 5 | 8 | 1 | 200 |
SPM150 |
M150*3 | 205 | 190 | 18 | 12 | 5 | 8 | 1 | 212 |
SPM160 |
M160*3 | 220 | 205 | 20 | 12 | 5 | 8 | 1 | 278 |
SPM170 |
M170*3 | 230 | 210 | 20 | 12 | 7 | 8 | 1 | 286 |
SPM180 |
M180*3 | 245 | 225 | 20 | 16 | 7 | 8 | 1 | 330 |
SPM190 |
M190*3 | 260 | 240 | 20 | 16 | 7 | 8 | 1 | 377 |
SPM200 |
M200*3 | 270 | 250 | 22 | 16 | 7 | 8 | 1 | 436 |
