KMTA Precision Locknuts

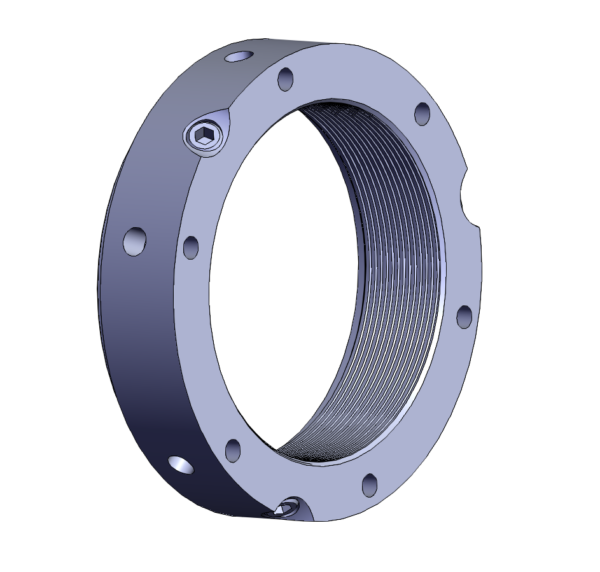

KMTA precision locknuts have a cylindrical outside surface and are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components.

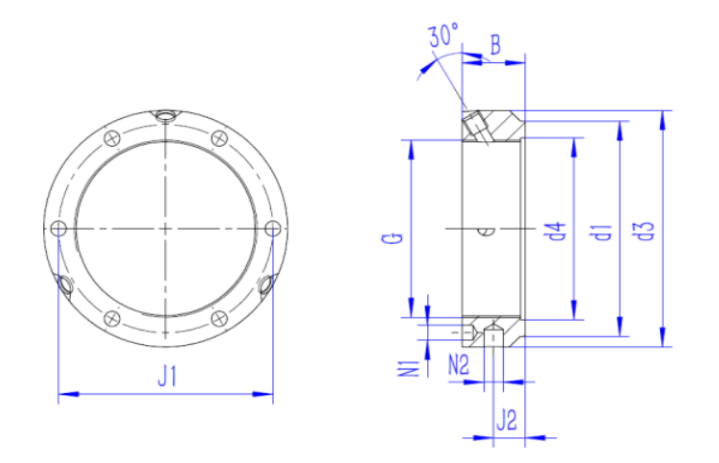

| Designation | Dimensions | Grub locking screw size | Locknut | Mass kg/pcs | |||||||||
| G | d₁ | B | d₃ | d₄ | J₁ | J₂ | N₁ | N₂ | Axial static load carrying capacity | Recommended tightening torque N.m | |||
KMTA 5 |
M 25×1.5 | 35 | 20 | 42 | 26 | 32.5 | 11 | 4.3 | 4 | M6 | 130 | 8 | 0.13 |
KMTA 6 |
M 30×1.5 | 40 | 20 | 48 | 32 | 40.5 | 11 | 4.3 | 5 | M6 | 160 | 8 | 0.16 |
KMTA 7 |
M 35×1.5 | 47 | 20 | 53 | 38 | 45.5 | 11 | 4.3 | 5 | M6 | 190 | 8 | 0.19 |
KMTA 8 |
M 40×1.5 | 52 | 22 | 58 | 42 | 50.5 | 12 | 4.3 | 5 | M6 | 210 | 8 | 0.23 |
KMTA 9 |
M 45×1.5 | 58 | 22 | 68 | 48 | 58 | 12 | 4.3 | 6 | M6 | 240 | 8 | 0.33 |
KMTA 10 |
M 50×1.5 | 63 | 24 | 70 | 52 | 61.5 | 13 | 4.3 | 6 | M6 | 300 | 8 | 0.34 |
KMTA 11 |
M 55×1.5 | 70 | 24 | 75 | 58 | 66.5 | 13 | 4.3 | 6 | M6 | 340 | 8 | 0.37 |
KMTA 12 |
M 60×1.5 | 75 | 24 | 84 | 62 | 74.5 | 13 | 5.3 | 6 | M8 | 380 | 18 | 0.49 |
KMTA 13 |
M 65×1.5 | 80 | 25 | 88 | 68 | 78.5 | 13 | 5.3 | 6 | M8 | 460 | 18 | 0.52 |
KMTA 14 |
M 70×1.5 | 86 | 26 | 95 | 72 | 85 | 14 | 5.3 | 8 | M8 | 490 | 18 | 0.62 |
KMTA 15 |
M 75×1.5 | 91 | 26 | 100 | 77 | 88 | 13 | 6.4 | 8 | M8 | 520 | 18 | 0.66 |
KMTA 16 |
M 80×2 | 97 | 30 | 110 | 83 | 95 | 16 | 6.4 | 8 | M8 | 620 | 18 | 1 |
KMTA 17 |
M 85×2 | 102 | 32 | 115 | 88 | 100 | 17 | 6.4 | 8 | M10 | 650 | 35 | 1.15 |
KMTA 18 |
M 90×2 | 110 | 32 | 120 | 93 | 108 | 17 | 6.4 | 8 | M10 | 680 | 35 | 1.2 |
KMTA 19 |
M 95×2 | 114 | 32 | 125 | 98 | 113 | 17 | 6.4 | 8 | M10 | 710 | 35 | 1.25 |
KMTA 20 |
M 100×2 | 120 | 32 | 130 | 103 | 118 | 17 | 6.4 | 8 | M10 | 740 | 35 | 1.3 |
KMTA 22 |
M 110×2 | 132 | 32 | 140 | 112 | 128 | 17 | 6.4 | 8 | M10 | 800 | 35 | 1.45 |
KMTA 24 |
M 120×2 | 142 | 32 | 155 | 122 | 140 | 17 | 6.4 | 8 | M10 | 860 | 35 | 1.85 |
KMTA 26 |
M 130×3 | 156 | 32 | 165 | 132 | 153 | 17 | 6.4 | 8 | M10 | 920 | 35 | 2 |
KMTA 28 |
M 140×3 | 166 | 32 | 180 | 142 | 165 | 17 | 6.4 | 8 | M10 | 980 | 35 | 2.45 |
KMTA 30 |
M 150×3 | 180 | 32 | 190 | 152 | 175 | 17 | 6.4 | 10 | M10 | 1040 | 35 | 2.6 |
KMTA 32 |
M 160×3 | 190 | 32 | 205 | 162 | 185 | 17 | 8.4 | 10 | M10 | 1100 | 35 | 3.15 |
KMTA 34 |
M 170×3 | 205 | 32 | 215 | 172 | 195 | 17 | 8.4 | 10 | M10 | 1160 | 35 | 3.3 |
KMTA 36 |
M 180×3 | 215 | 32 | 230 | 182 | 210 | 17 | 8.4 | 10 | M10 | 1220 | 3.9 | 3.9 |
KMTA 38 |
M 190×3 | 225 | 32 | 240 | 192 | 224 | 17 | 8.4 | 10 | M10 | 1280 | 35 | 4.1 |
KMTA 40 |
M 200×3 | 237 | 32 | 245 | 202 | 229 | 17 | 8.4 | 10 | M10 | 1340 | 35 | 3.85 |
