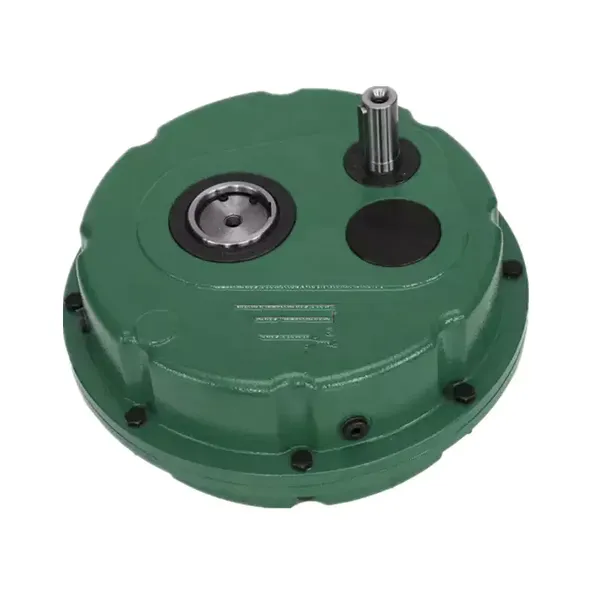

DXG(ATA) Series Hanging Shaft Mounted Gearbox for Quarrying and Mining Industry
The DXG(ATA) series shaft mounted gearbox is well-received by industries after becoming the best-selling mining gearbox. It is favored because its absolute reliability and low maintenance characteristics are critical factors in the mining and ore fields. The shaft-mounted speed reducer adopts a modular design that can be modified according to customer requirements. DXG(ATA) series shaft mounted gearbox is widely applied to the mining industry, such as Crusher, Ore Mill, Crane, Screening Machine, Conveyor, etc.
DXG(ATA) Series Hanging Shaft Mounted Gearbox for Quarrying and Mining Industry
The DXG(ATA) series shaft mounted gearbox(Mining Industry gearbox) is well-received by industries after becoming the best-selling mining gearbox. It is favored because its absolute reliability and low maintenance characteristics are critical factors in the mining and ore fields. The shaft-mounted speed reducer adopts a modular design that can be modified according to customer requirements. DXG(ATA) series shaft mounted gearbox is widely applied to the mining industry, such as Crusher, Ore Mill, Crane, Screening Machine, Conveyor, etc.
Mining Industry gearbox Components:

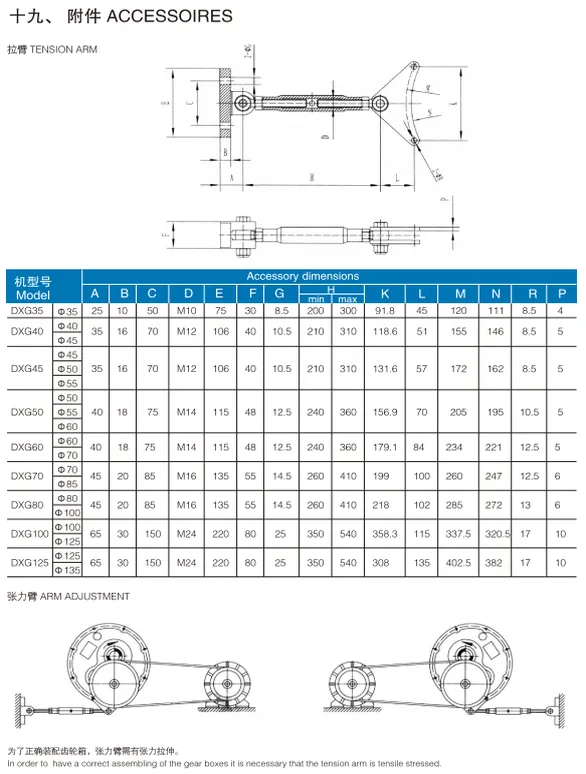

| Housing: | Nodular Cast Iron(Ductile Iron) QT600 |
| Gears Profile: | Hardened Helical Gears |
| Gears Material: | 20CrMnTi |
| Gears Processing: | Carburizing, Quenching, Grinding |
| Gears Hardness: | Surface Hardness: HRC58-62, Inner Hardness: HBS156-207 |
| Gears Accuracy: | 6 Class |
| Shafts Material: | 40Cr |
| Input Configurations: | Keyed Solid Shaft Input, IEC Normalized Motor Flange |
| Output Configurations: | Keyed Hollow Shaft Output |
| Oil Seal: | TAIWAN SOG |
| Bearings: | NSK, SKF, FAG, HRB, ZWZ, LYC |
| Spare Parts: | Shaft mounted gearbox torque arm, Optional Backstop |
Our Products Advantages
1. Absolute reliability and low maintenance for the quarry and mine applications.
2. Sturdy ductile iron housing suitable for outdoor installation.
3. Up to three optional output shaft bore diameters.
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized).
5. Optional backstop for all models(Excluded ATA30) to prevent back driving in case of incline conveyors.
6. Dimensions are the same as Bonfiglioli(TA Series).
7. Double lips oil seal combines the functions of seal and dust-proof.
8. Widely used in belt conveyor and pulley drive systems.
DXG(ATA) Series Shaft Mounted Gearbox Models:
1 Stage: ATA30, ATA35, ATA40, ATA45, ATA50, ATA60, ATA70, ATA80, ATA100, ATA125
2 Stage: ATA35D, ATA40D, ATA45D, ATA50D, ATA60D, ATA70D, ATA80D, ATA100D, ATA125D

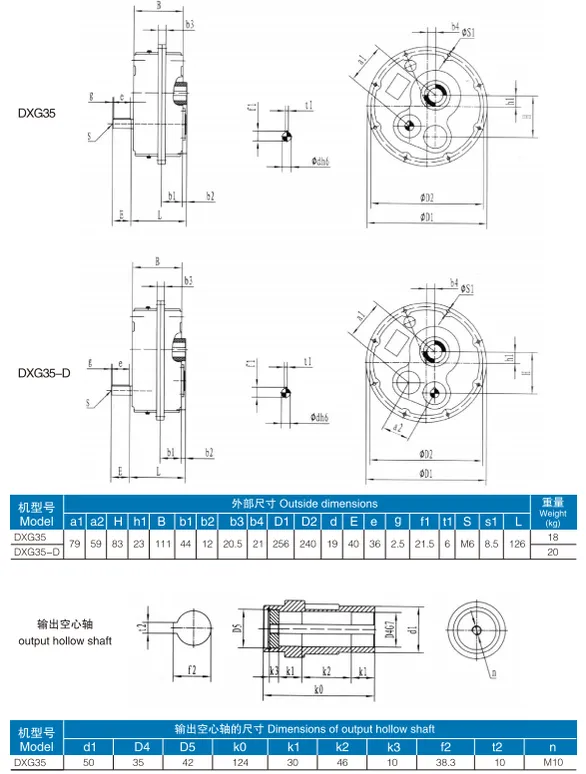

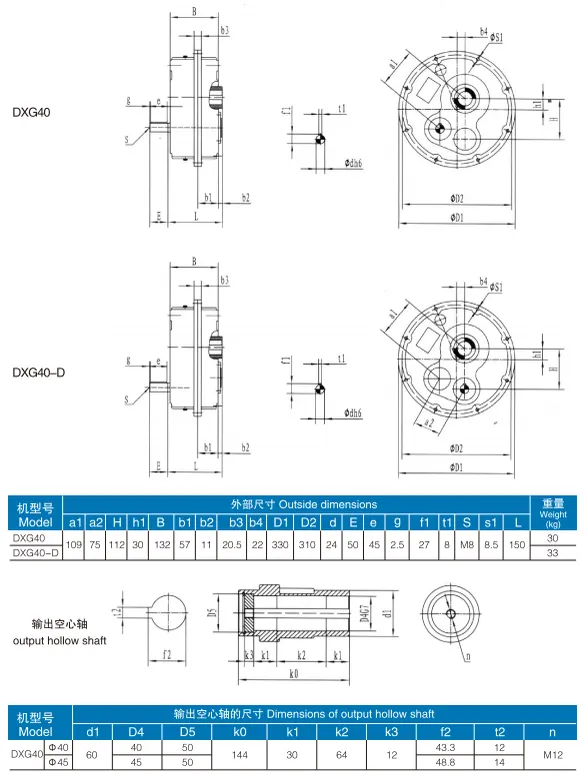

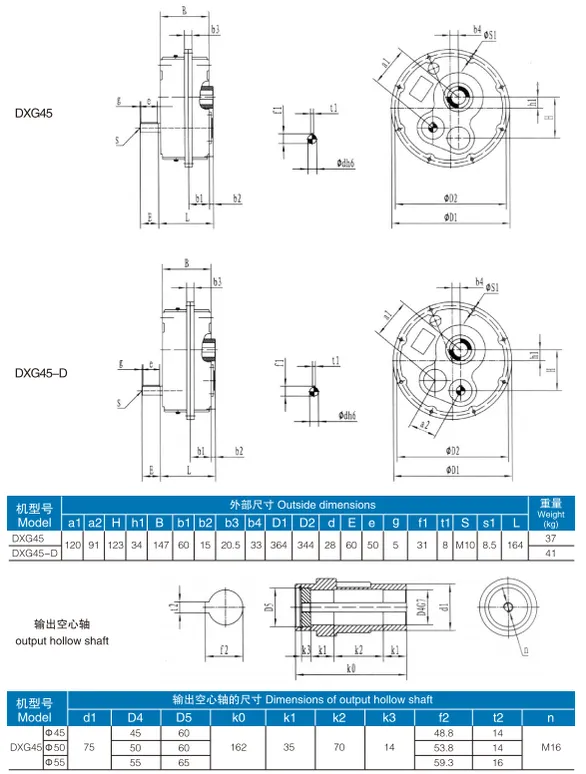

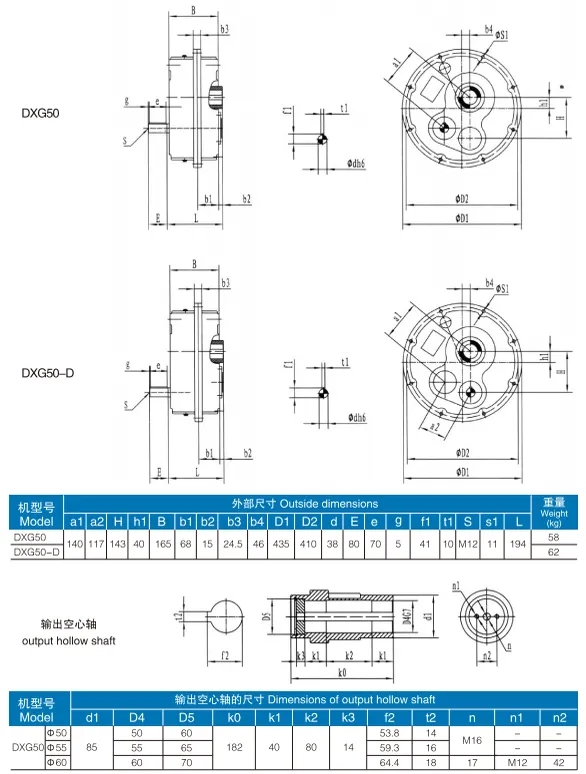

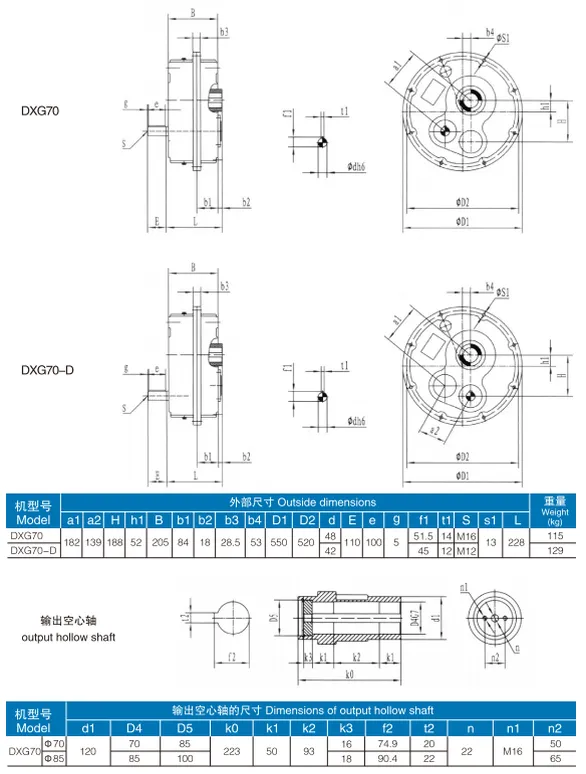

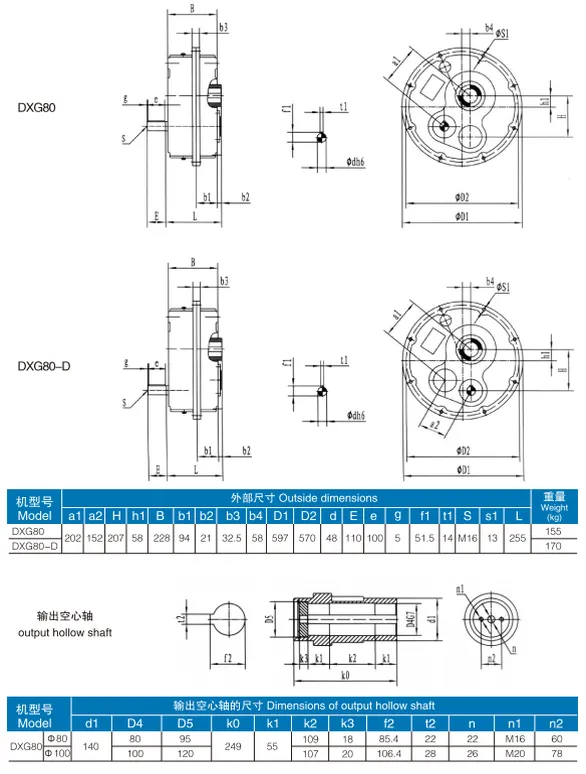

| Models | Output Bore Dia. | Maximum Torque | Nominal Ratio(i) |
| ATA30 | 30mm | 180Nm | 5 7 10 12.5 15 20 25 31 |
| ATA35 | 35mm | 420Nm | |
| ATA40 | 40mm/45mm | 950Nm | |
| ATA45 | 45mm/50mm/55mm | 1400Nm | |
| ATA50 | 50mm/55mm/60mm | 2300Nm | |
| ATA60 | 60mm/70mm | 3600Nm | |
| ATA70 | 70mm/85mm | 5100Nm | |
| ATA80 | 80mm/100mm | 7000Nm | |
| ATA100 | 100mm/125mm | 11000Nm | |
| ATA125 | 125mm/135mm | 17000Nm |
DXG(ATA) Series Shaft Mounted Gearbox Applications

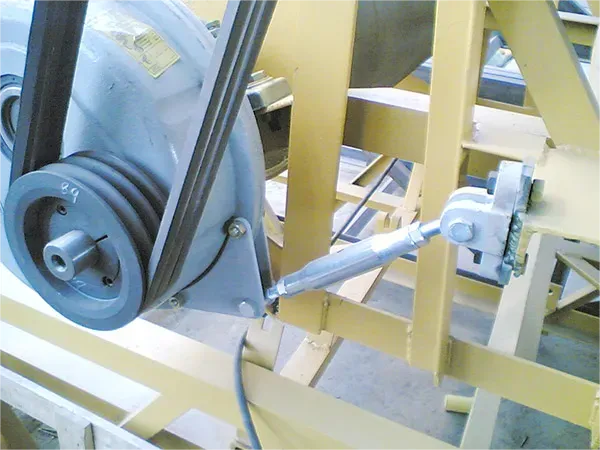

DXG(ATA) Series Shaft Mounted Gearbox applications: applied to the mining industry, such as Crusher, Ore Mill, Crane, Screening Machine, Conveyor, etc. The following pictures illustrate how DXG(ATA) is working with the conveyor belt. The motorized pulley(drum motor) is configuring with a DXG(ATA) series shaft-mounted gearbox and then transmits power to the conveyor.
| DXG(ATA) Series Shaft Mounted Conveyor Gearbox for Mining Industry | DXG(ATA) Series Shaft Mounted Gearbox Configured with Motorized Pulley |
 |
 |

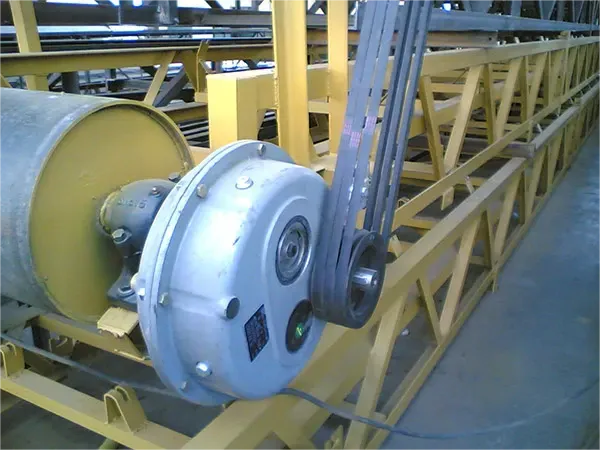

| DXG(ATA) Series Shaft Mounted Gearbox Applied to Conveyor | DXG(ATA) Shaft Mounted Gearbox with Electric Roller Configured |
 |
 |

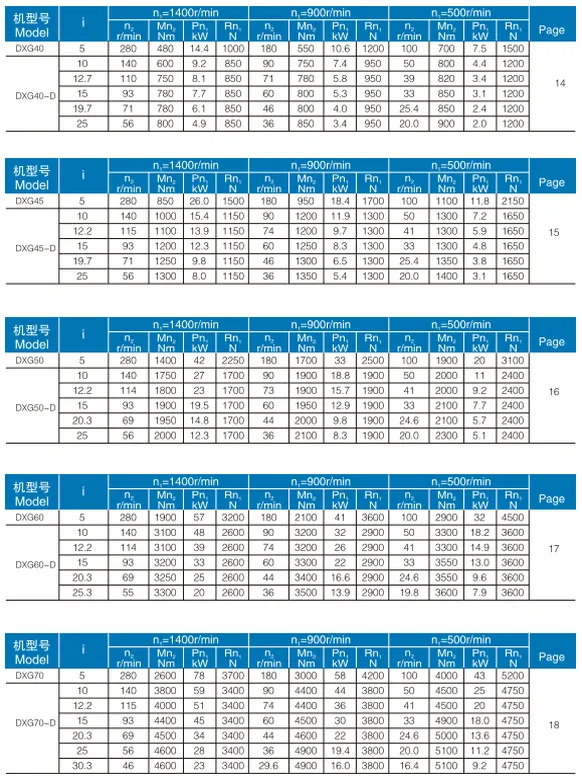

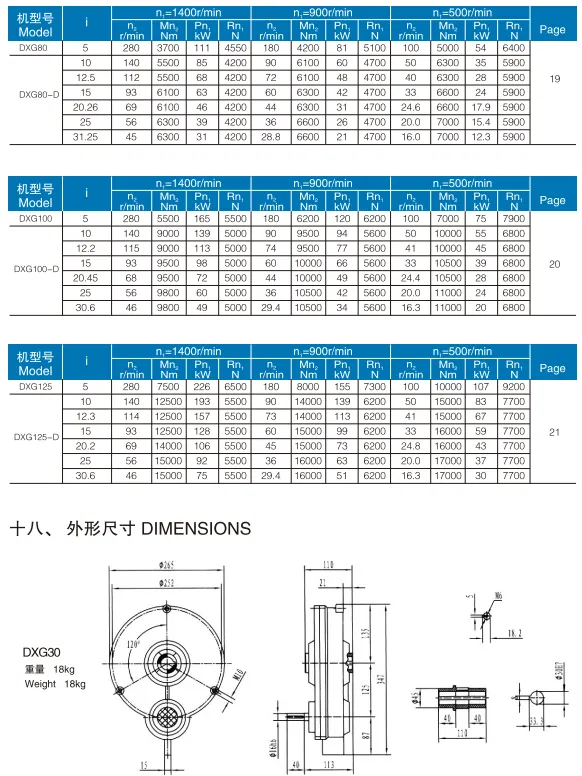

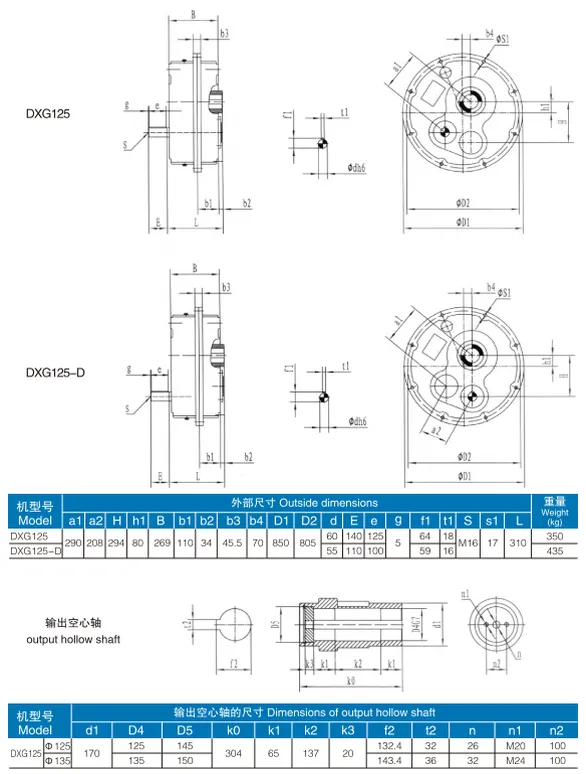

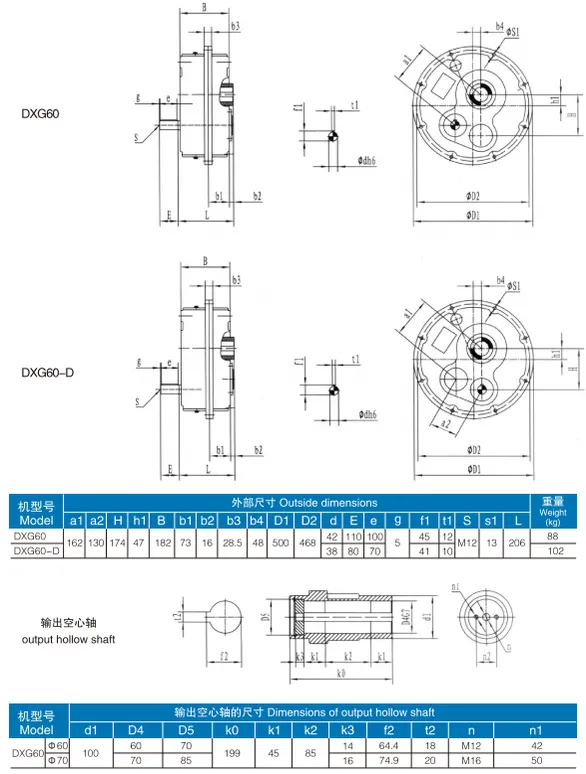

Selection Table
 |
 |
Packing Shipping Delivery
  |
 |
|
 |
 |
|
