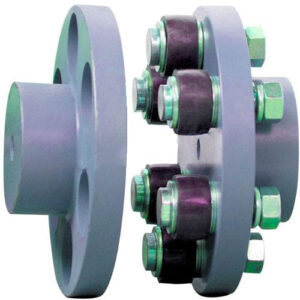

Flange Flexible Couplings
The flexible Coupling Model is widely used for its compact design， easy installation， convenient maintenance， small size, and lightweight． As long as the relative displacement between shafts is kept within the specified tolerance， the coupling will operate the best function and have a longer working life. Thus it is greatly demanded in medium and minor power transmission systems driven by motors， such as speed reducers， hoists， compressors， spinning &weaving machines, and ball mills.
Flange Flexible Couplings

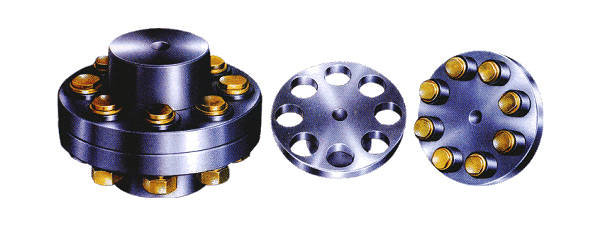

Flange Flexible Couplings are Designed to minimize transmission vibration and reduce the cost of transmission repairs. We provides a fail-safe design that reduces transmission damage and noise. The product is also designing to make installation and adjustment easier.
Flexible Couplings are using polyester elastomer that does not deform with lubrication fluids. The coupling is designing to transmit torque at a rate of about one-quarter inch per minute, resulting in a working life of several years.

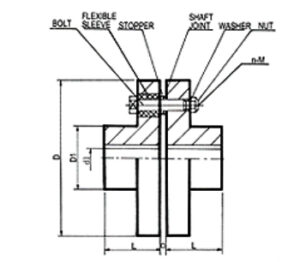

Flange Flexible Couplings Specifications
| SIZE | N.m | r/min | D | D1 | d1 | L | C | n-M | KG |
| 90 | 4 | 4000 | 90 | 35.5 | 11 | 28 | 3 | 4-M8*50 | 1.7 |
| 100 | 10 | 4000 | 100 | 40 | 11 | 35.5 | 3 | 4-M10*56 | 2.3 |
| 112 | 16 | 4000 | 112 | 45 | 13 | 40 | 3 | 4-M10*56 | 2.8 |
| 125 | 25 | 4000 | 125 | 50 | 13 | 45 | 3 | 4-M12*64 | 4.0 |
| 140 | 50 | 4000 | 140 | 63 | 13 | 50 | 3 | 6-M12*64 | 5.4 |
| 160 | 110 | 4000 | 160 | 80 | 15 | 56 | 3 | 8-M12*64 | 8.0 |
| 180 | 157 | 3500 | 180 | 90 | 15 | 63 | 3 | 8-M12*64 | 10.5 |
| 200 | 245 | 3200 | 200 | 100 | 21 | 71 | 4 | 8-M20*85 | 16.2 |
| 224 | 392 | 2850 | 224 | 112 | 21 | 80 | 4 | 8-M20*85 | 21.3 |
| 250 | 618 | 2550 | 250 | 125 | 25 | 90 | 4 | 8-M24*100 | 31.6 |
| 280 | 980 | 2300 | 280 | 140 | 34 | 100 | 4 | 8-M24*116 | 44.0 |
| 315 | 1568 | 2050 | 315 | 160 | 41 | 112 | 4 | 10-M24*116 | 57.7 |
| 355 | 2450 | 1800 | 355 | 180 | 60 | 125 | 5 | 8-M30*150 | 89.5 |
| 400 | 3920 | 1600 | 400 | 200 | 60 | 125 | 5 | 10-M30*150 | 89.5 |
| 450 | 6174 | 1400 | 450 | 224 | 65 | 140 | 5 | 12-M30*150 | 145 |
| 560 | 9800 | 1150 | 560 | 250 | 85 | 160 | 5 | 14-M30*150 | 229 |
| 630 | 15680 | 1000 | 630 | 280 | 95 | 180 | 5 | 18-M30*150 | 296 |
