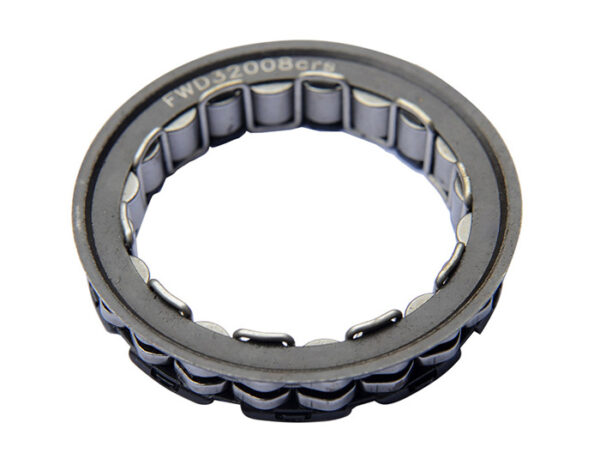

FWD Sprag Freewheel Cage
FWD are all sprag types freewheel cage without inner or outer races. This series must install in a design that has inner and outer races, and bearings to support axial and radial loads.
FWD Sprag Freewheel Cage usually works in motorcycle starter clutches.

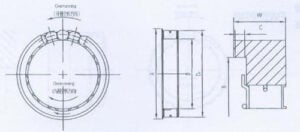

| Type | Inner race | Outer race | Wmin | A | B | C | Tkn | Weight |
| D(mm) | D0±0.013(mm) | W(mm) | (mm) | (mm) | (mm) | (Kgf-m) | (g) | |
| FWD331608CRB | 39.627 | 56.294 | 13 | 60 | 62 | 1 | 27 | 73 |
| FWD331808CRB | 45.665 | 62.332 | 13.3 | 65 | 68 | 1 | 35 | 83 |
| FWD332008CRB | 51.71 | 68.377 | 13.3 | 71 | 74 | 1 | 45 | 92 |
| FWD332211CRB | 57.76 | 74.427 | 16.3 | 76 | 79 | 1 | 78 | 134 |

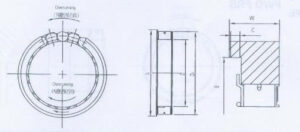

| Type | Inner race | Outer race | Wmin | A | B | C | Tkn | Weight |
| D(mm) | D0±0.013 | W(mm) | (mm) | (mm) | (mm) | (Kgf-m) | (g) | |
| FWD331608CRS | 39.627 | 56.294 | 13 | 60 | 62 | 1 | 27 | 78 |
| FWD331808CRS | 45.665 | 62.332 | 13.3 | 65 | 68 | 1 | 35 | 88 |
| FWD332008CRS | 51.71 | 68.377 | 13.3 | 71 | 74 | 1 | 45 | 98 |
| FWD332211CRS | 57.76 | 74.427 | 16.3 | 76 | 79 | 1 | 78 | 140 |

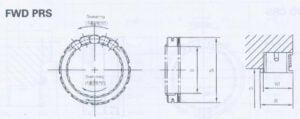

| Type | Lnner race | Outer race | Wmin | Wmin | DC | Tkn | Weight |
| D(mm) | D0±0.013 | W(mm) | W1(mm) | (mm) | (Kgf-m) | (g) | |
| FWD331608PRS | 39.627 | 56.294 | 13 | 11.4 | 45 | 27 | 75 |
| FWD331808PRS | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 85 |
| FWD332008PRS | 51.71 | 68.377 | 13.3 | 11.7 | 57 | 45 | 94 |
| FWD332211PRS | 57.76 | 74.427 | 16.3 | 14.7 | 63 | 78 | 139 |

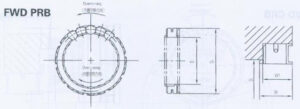

| Type | Lnner race | Outer race | Wmin | Wmin | DC | Tkn | Weight |
| D(mm) | D0±0.013 | W(mm) | W1(mm) | (mm) | (Kgf-m) | (g) | |
| FWD331608PRB | 39.627 | 56.294 | 13 | 11.4 | 45 | 27 | 70 |
| FWD331808PRB | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 80 |
| FWD332008PRB | 51.71 | 68.377 | 13.3 | 11.7 | 57 | 45 | 89 |
| FWD332211PRB | 57.76 | 74.427 | 16.3 | 14.7 | 63 | 78 | 130 |
The opposite freewheel direction to the picture above is customizable.
