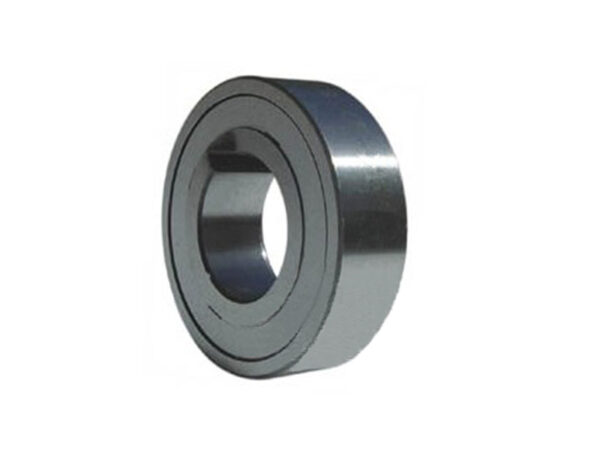

GC-C Roller Type Freewheel
Type GC-C is a roller type freewheel non-bearing supported. Nominal outer diameter is the same as a series 62 ball bearings. Bearings are required to support axial and radial loads.
Type GC-C is a roller type freewheel non-bearing supported. Nominal outer diameter is the same as a series 62 ball bearings. The clutch requires bearing support to withstand axial and radial loads.The units come pre-lubricated with grease.

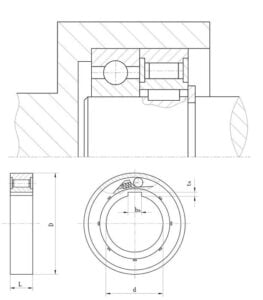

Standard arrangement is to install this type alongside a series 62 bearing within the same location tolerances. The inner race key to the shaft. The outer race has a positive n6 tolerance to give apress fit in H7 housing, but the housing must be strong enough.
This series extensive used in machinery system of packing, printing, papermaking, weaving, chemical, medical, food and so on.
| Type | Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Weight | ||||
| (N·M) | (r/min) | D(n6) | L | D(H7) | bn*tn | (kg) | ||
| Outer race | Inner race | |||||||
| CG-C1030 | 4.6 | 1750 | 2600 | 30 | 9 | 10 | 3*1.4 | 0.03 |
| GC-C1232 | 8.5 | 1600 | 2400 | 32 | 10 | 12 | 4*1.8 | 0.04 |
| GC-C1535 | 9.3 | 1400 | 2150 | 35 | 11 | 15 | 3*1.4 | 0.05 |
| GC-C2047 | 27 | 1100 | 1650 | 47 | 14 | 20 | 6*2.8 | 0.12 |
| GC-C2552 | 38 | 950 | 1450 | 52 | 15 | 25 | 8*3.3 | 0.14 |
| GC-C3062 | 61 | 800 | 1200 | 62 | 16 | 30 | 8*3.3 | 0.22 |
| GC-C3572 | 97 | 650 | 1000 | 72 | 17 | 35 | 10*3.3 | 0.31 |
| GC-C4080 | 126 | 600 | 900 | 80 | 18 | 40 | 10*3.3 | 0.39 |
| GC-C4585 | 148 | 500 | 800 | 85 | 19 | 45 | 8*2.8 | 0.44 |
| GC-C5090 | 153 | 475 | 750 | 90 | 20 | 50 | 8*2.8 | 0.49 |
| GC-C55100 | 209 | 400 | 650 | 100 | 21 | 55 | 16*4.3 | 0.66 |
| GC-C60110 | 346 | 350 | 550 | 110 | 22 | 60 | 18*4.4 | 0.81 |
| GC-C80140 | 722 | 300 | 450 | 140 | 26 | 80 | 22*5.4 | 1.41 |
| GC-C1542 | 20 | 1200 | 1750 | 42 | 11 | 15 | 3*1.4 | 0.11 |
| GC-C1545 | 27 | 1200 | 1750 | 45 | 15 | 15 | 3*1.4 | 0.12 |
| GC-C2547 | 20 | 1100 | 1650 | 47 | 25 | 25 | 6*2.8 | 0.12 |
| GC-C2562 | 60 | 800 | 1200 | 62 | 17 | 25 | 8*3.3 | 0.17 |
