Heavy-Duty Steel & Nylon Gear Racks for Automatic Sliding Gates
Standard ModulesModule 4 (M4 for Gate Openers), M1, M1.5, M2, M2.5, M3, M5, M8, M12Tooth ConfigurationStraight Spur Teeth / Helical Teeth (Right/Left Hand)Material OptionsC45 Carbon Steel, Stainless Steel (304/316), Nylon with Steel Core, Brass, Aluminum AlloySurface TreatmentsGalvanized / Zinc-Plated, Black Oxide, Dacromet, Powder Coating, Anodizing

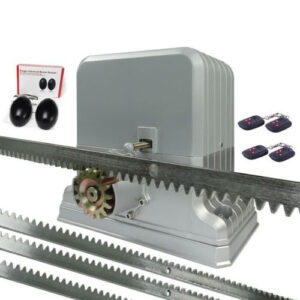

Gear Racks for Automatic Sliding Gates are essential motion transmission components engineered to convert the rotational torque of an electric gate opener motor into smooth, linear gate travel. Paired with a driving pinion gear, these precision rack-and-pinion systems provide reliable operation, high load capacity, and anti-vibration linear drive performance for residential, commercial, and heavy industrial sliding gates.
We manufacture both heavy-duty Galvanized C45 Steel Gear Racks for high-security applications and quiet-operating Nylon Gear Racks with Steel Core Inserts for residential gate automation systems.
Key Features & Advantages
- Universal Pinion Compatibility: Available in standard Module 4 (M4) pitch as well as M1–M12 options to fit major international sliding gate operators.
- All-Weather Protection: Corrosion-resistant galvanizing, zinc plating, or anodizing ensures exceptional rust protection during long-term outdoor exposure.
- Quiet & Smooth Operation: Precision-milled gear teeth (DIN 6 to DIN 9 accuracy) reduce meshing friction, backlash, and mechanical drive noise.

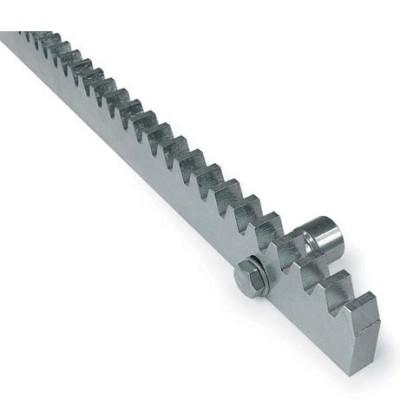

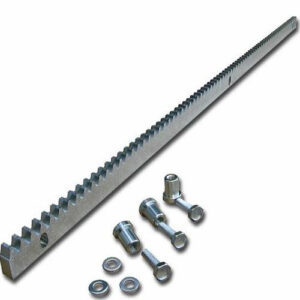

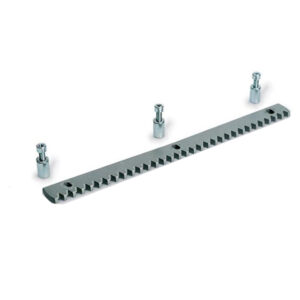

- Flexible Mounting Options: Pre-drilled oval slots with weld-on lugs, standoff spacers, or bolt-through holes for fast and precise field installation.
Technical Specifications Matrix
| Specification Parameter | Technical Capability & Options |
|---|---|
| Standard Modules | Module 4 (M4 for Gate Openers), M1, M1.5, M2, M2.5, M3, M5, M8, M12 |
| Tooth Configuration | Straight Spur Teeth / Helical Teeth (Right/Left Hand) |
| Material Options | C45 Carbon Steel, Stainless Steel (304/316), Nylon with Steel Core, Brass, Aluminum Alloy |
| Surface Treatments | Galvanized / Zinc-Plated, Black Oxide, Dacromet, Powder Coating, Anodizing |
| Precision Grade | DIN 6, DIN 7, DIN 8, DIN 9 (ISO Class 6–9) |
| Teeth Processing | Precision Hobbed / Milled / Induction Hardened / Ground Teeth |
| Dimensional Tolerance | ±0.01 mm to ±0.1 mm |
| Standard Lengths | 500 mm, 1000 mm, 1005 mm, 2000 mm (Custom lengths on request) |
Straight vs. Helical Gear Racks for Sliding Gates
While straight-tooth spur gear racks are the standard choice for general automatic sliding gates due to their cost-effectiveness and ease of alignment, helical gear racks feature slanted teeth that offer higher tooth engagement ratios, greater load capacity, and significantly reduced acoustic noise during high-speed gate travel.

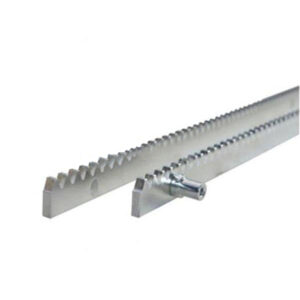

Product Details & Structural Showcase
Our automated production facilities produce consistent tooth profiles and uniform surface coatings across all steel and nylon rack varieties:
Looking for custom mounting lug configurations, non-standard module sizing, or complete OEM gate hardware kits? Explore our complete line under the Industrial Precision Gear Racks Category or Contact Our Sales Engineers for bulk B2B pricing and custom manufacturing inquiries.
