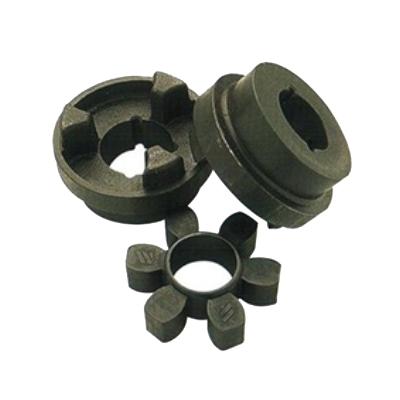

HRC Flexible Couplings
HRC Couplings are essentially general-purpose couplings with a flexible component that allows for greater misalignment.
The parallel misalignment can be up to 0.5 millimeters
Axial misalignment up to 1.7 millimeters
Due to their unique style, HRC Couplings can accommodate larger shafts. This can make them a more cost-effective option.

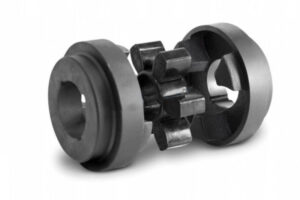

HRC Flexible Couplings consist of two high-grade cast-iron flange hubs connected by a resilient elastomeric flexible element (spider). Designed for quick installation, HRC couplings effectively dampen shock loads, absorb transient vibration, and accommodate incidental shaft misalignments (up to 0.5mm parallel and 1.7mm axial displacement). Available in Taper Lock Bushing (Type F/H) and Pilot Bore (Type B) configurations across sizes 70 through 280, operating across a wide temperature range from -40°C to +100°C.

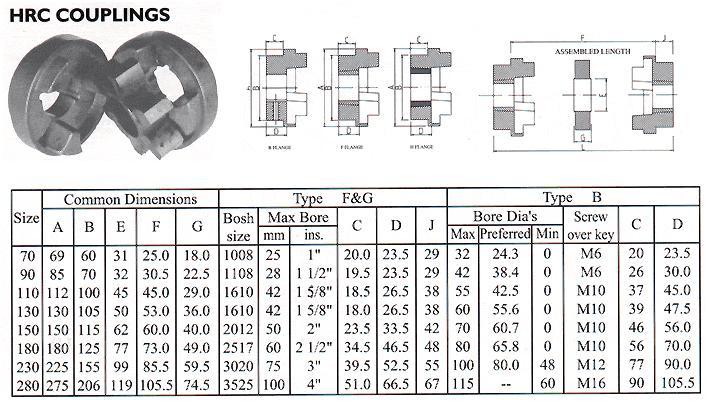

HRC Coupling Specifications & Dimensions
| Size | Common Dimensions (mm) | Type F & G (Taper Lock) | Type B (Pilot Bore) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | E | F | G | Bush Size | Max Bore (mm) | Max Bore (in) | Screw Over Key | Max Bore (mm) | Preferred Bore (mm) | Min Bore (mm) | |
| 70 | 69 | 60 | 31 | 25.0 | 18.0 | 1008 | 25 | 1″ | M6 | 32 | 24.3 | 0 |
| 90 | 85 | 70 | 32 | 30.5 | 22.5 | 1108 | 28 | 1-1/2″ | M6 | 42 | 38.4 | 0 |
| 110 | 112 | 100 | 45 | 45.0 | 29.0 | 1610 | 42 | 1-5/8″ | M10 | 55 | 42.5 | 0 |
| 130 | 130 | 105 | 50 | 53.0 | 36.0 | 1610 | 42 | 1-5/8″ | M10 | 60 | 55.6 | 0 |
| 150 | 150 | 115 | 62 | 60.0 | 40.0 | 2012 | 50 | 2″ | M10 | 70 | 60.7 | 0 |
| 180 | 180 | 125 | 77 | 73.0 | 49.0 | 2517 | 60 | 2-1/2″ | M10 | 80 | 65.8 | 0 |
| 230 | 225 | 155 | 99 | 85.5 | 59.5 | 3020 | 75 | 3″ | M12 | 100 | 80.0 | 48 |
| 280 | 275 | 206 | 119 | 105.5 | 74.5 | 3525 | 100 | 4″ | M16 | 115 | — | 60 |
Key Design Features
- Economic Efficiency: Optimized design matches power transfer capacity directly to standard motor shaft diameters using Taper Lock Bushings.
- Shock Resilience: Elastomeric spider insert attenuates transient peak shock loads and vibration during drive startup and operation.
- Misalignment Compensation: Accommodates incidental parallel, angular, and axial shaft misalignments to protect connected machinery bearings.
- Fail-Safe Interlocking: In the rare event of element wear, integral flange jaw dogs remain engaged to prevent complete drive disconnection.
- Low Maintenance: Requires zero lubrication and allows simple installation using standard hex keys.
Looking for complementary drive components or complete assemblies? Explore our full catalog of Industrial Shaft Couplings or match your HRC hubs with precision-machined Taper Lock Bushings.
