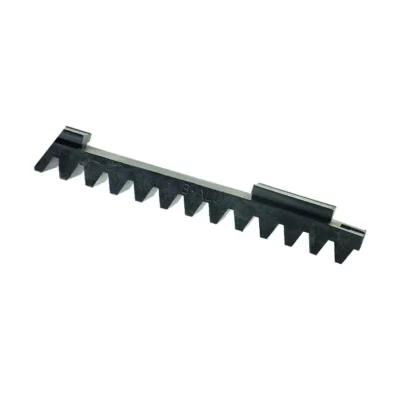

Injection Rack Pinion Gear Plastic Gear Rack
- material:nylon/pom/plastic
- Certification:ISO9001
- moudle:0.5-5.0
- Name:Injection rack pinion gear
- Product Description:Mould plastic injection custom pom small plastic rack pinion gear
Injection Rack Pinion Gear
Injection rack and pinion
Modules: 0.8 modules. 0.5MOD, 1mod, 1.5mod, 2mod… available.
Material: Acetal/POM/Nylon
Tooth type: low noise spur gear
Gear with flange/hub and side holes and screws.
It can be CNC, or it can open the mold for you. Other numbers of teeth, modules, and outside diameters are available.
It can be matched with small motors, 3D printers, etc.

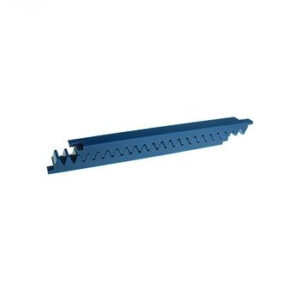

Product display
 |
 |
 |
Flexible Plastic Gear Rack
Unlike conventional rack and pinion gears made from metal, plastic rack and pinion gears have prolonged support for daily life and diminished maintenance prerequisites. They can withstand corrosion and put on greater than metal gears. These are best for industrial applications this kind as cranes and elevators.
The basic structure of the rack and pinion gear is relatively basic. It consists of a rod with teeth lowered into it. The rod and teeth are connecting with sleeve bearings. Whether the rack is stationary or movable will adjust how it functions. A rectangular rack is considerably more potent than a round one in particular.
Design Considerations for Rack and Pinion Systems
When designing rack and pinion gears, engineers carefully evaluate tooth geometry and structure to match application requirements.
- Straight Rack Gears:
Straight racks feature teeth aligned parallel to the axis, requiring less driving force. They reduce energy consumption and operate at lower temperatures, making them ideal for efficient and stable systems. - Helical Rack Gears:
Helical racks use angled teeth to provide smoother engagement and higher load capacity. However, they require greater driving force to generate the same torque, making them suitable for heavy-duty or high-precision applications.
Why Choose Rack and Pinion Gears?
-
- Cost-effective for long travel distances
- High load capacity and durability
- Easy installation and maintenance
- Customizable for precision applications
- Suitable for automation, robotics, and heavy machinery
