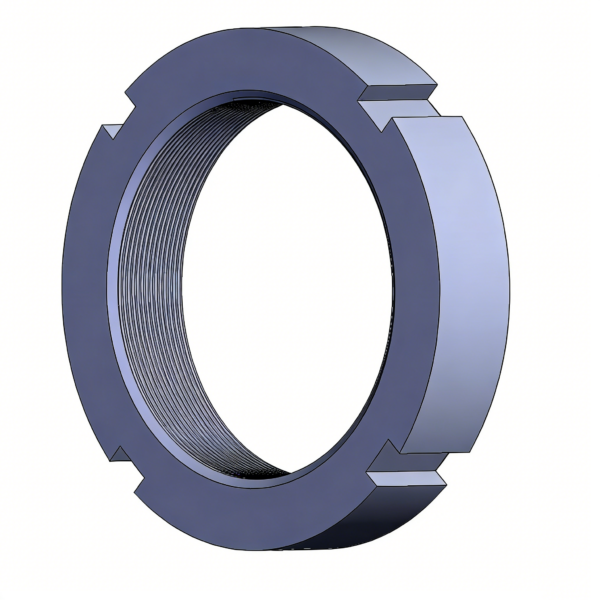

ZM Precision Locknut
We grind the thread and end surfaces for precision squareness.
Bronze bushing enhances the anti-loosening effect and makes alignment easy.
Available in a wide range of sizes from M6 to M150.
| Designation | Dimensions | Grub screw Tightening torque MA Nm | Locknut | Mass kg/pcs | ||||||||||

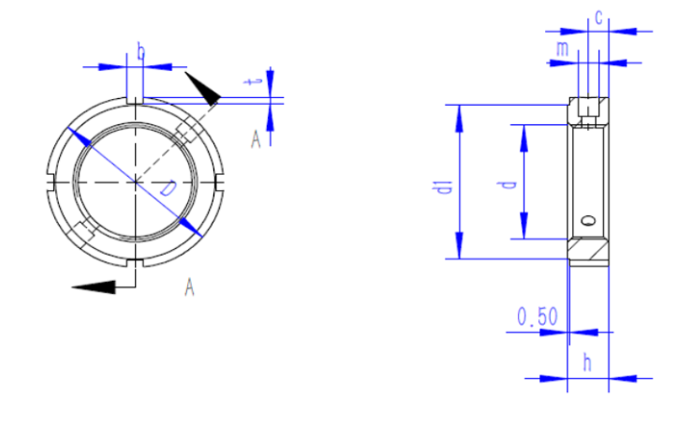

| d | D | h | b | t | d₁ | c | m | Axial rupture load FaB N | Breakaway torque at MAL Nm | Reference tightening torque Nm | Mass moment of inertia MM kg.cm² | |||
ZM06 |
M6*0,5 | 16 | 8 | 3 | 2 | 11 | 4 | M4 | 1 | 17000 | 20 | 2 | 0.004 | 0.01 |
ZM08 |
M8*0,75 | 16 | 8 | 3 | 2 | 11 | 4 | M4 | 1 | 23000 | 25 | 4 | 0.004 | 0.01 |
ZM10 |
M10*1 | 18 | 8 | 3 | 2 | 14 | 4 | M4 | 1 | 31000 | 30 | 6 | 0.006 | 0.01 |
ZM12 |
M12*1 | 22 | 8 | 3 | 2 | 18 | 4 | M4 | 1 | 38000 | 30 | 8 | 0.013 | 0.015 |
ZM15 |
M15*1 | 25 | 8 | 3 | 2 | 21 | 4 | M4 | 1 | 50000 | 30 | 10 | 0.021 | 0.018 |
ZMA15/33 |
M15*1 | 33 | 16 | 4 | 2 | 28 | 8 | M5 | 3 | 106000 | 30 | 10 | 0.14 | 0.08 |
ZM17 |
M17*1 | 28 | 10 | 4 | 2 | 23 | 5 | M5 | 3 | 57000 | 30 | 15 | 0.401 | 0.028 |
ZM20 |
M20*1 | 32 | 10 | 4 | 2 | 27 | 5 | M5 | 3 | 69000 | 40 | 18 | 0.068 | 0.035 |
ZMA20/38 |
M20*1 | 38 | 20 | 5 | 2 | 33 | 10 | M5 | 3 | 174000 | 40 | 18 | 0.297 | 0.12 |
ZMA20/52 |
M20*1 | 52 | 25 | 5 | 2 | 47 | 12.5 | M5 | 3 | 218000 | 40 | 18 | 1.38 | 0.32 |
ZM25 |
M25*1,5 | 38 | 12 | 5 | 2 | 33 | 6 | M6 | 5 | 90000 | 60 | 25 | 0.157 | 0.055 |
ZMA25/45 |
M25*1,5 | 45 | 20 | 5 | 2 | 40 | 10 | M6 | 5 | 211000 | 60 | 25 | 0.572 | 0.16 |
ZMA25/58 |
M25*1,5 | 58 | 28 | 6 | 2.5 | 52 | 14 | M6 | 5 | 305000 | 60 | 25 | 2.36 | 0.43 |
ZM30 |
M30*1,5 | 45 | 12 | 5 | 2 | 40 | 6 | M6 | 5 | 112000 | 70 | 32 | 0.304 | 0.075 |
ZMA30/52 |
M30*1,5 | 52 | 22 | 5 | 2 | 47 | 11 | M6 | 5 | 270000 | 70 | 32 | 1.1 | 0.22 |
ZMA30/65 |
M30*1,5 | 65 | 30 | 6 | 2.5 | 59 | 15 | M6 | 5 | 390000 | 70 | 32 | 3.94 | 0.55 |
ZM35 |
M35*1,5 | 52 | 12 | 5 | 2 | 47 | 6 | M6 | 5 | 134000 | 80 | 40 | 0.537 | 0.099 |
ZMA35/58 |
M35*1,5 | 58 | 22 | 6 | 2.5 | 52 | 11 | M6 | 5 | 300000 | 80 | 40 | 1.66 | 0.26 |
ZMA35/70 |
M35*1,5 | 70 | 30 | 6 | 2.5 | 64 | 15 | M6 | 5 | 460000 | 80 | 40 | 5.2 | 0.61 |
ZM40 |
M40*1,5 | 58 | 14 | 6 | 2.5 | 52 | 7 | M8 | 5 | 157000 | 95 | 55 | 0.945 | 0.14 |
ZMA40/62 |
M40*1,5 | 62 | 22 | 6 | 2.5 | 56 | 11 | M8 | 15 | 310000 | 95 | 55 | 2.07 | 0.27 |
ZMA40/75 |
M40*1,5 | 75 | 30 | 6 | 2.5 | 69 | 15 | M8 | 15 | 520000 | 95 | 55 | 6.72 | 0.67 |
ZM45 |
M45*1,5 | 65 | 14 | 6 | 2.5 | 59 | 7 | M6 | 5 | 181000 | 110 | 65 | 1.48 | 0.17 |
ZMA45/68 |
M45*1,5 | 68 | 24 | 6 | 2.5 | 62 | 12 | M8 | 15 | 360000 | 110 | 65 | 3.2 | 0.35 |
ZMA45/85 |
M45*1,5 | 85 | 32 | 7 | 3 | 78 | 16 | M8 | 15 | 630000 | 110 | 65 | 11.9 | 0.92 |
ZM50 |
M50*1,5 | 70 | 14 | 6 | 2.5 | 64 | 7 | M6 | 5 | 205000 | 130 | 85 | 1.92 | 0.19 |
ZMA50/75 |
M50*1,5 | 75 | 25 | 6 | 2.5 | 68 | 12.5 | M8 | 15 | 415000 | 130 | 85 | 4.89 | 0.43 |
ZMA50/92 |
M50*1,5 | 92 | 32 | 8 | 3.5 | 84 | 16 | M8 | 15 | 680000 | 130 | 85 | 16.1 | 1.06 |
ZM55 |
M55*2 | 75 | 16 | 7 | 3 | 68 | 8 | M6 | 5 | 229000 | 150 | 95 | 2.77 | 0.23 |
ZMA55/98 |
M55*2 | 98 | 32 | 8 | 3.5 | 90 | 16 | M8 | 15 | 620000 | 150 | 95 | 20.5 | 1.17 |
ZM60 |
M60*2 | 80 | 16 | 7 | 3 | 73 | 8 | M6 | 5 | 255000 | 180 | 100 | 3.45 | 0.25 |
ZMA60/98 |
M60*2 | 98 | 32 | 8 | 3.5 | 90 | 16 | M8 | 15 | 680000 | 180 | 100 | 19.6 | 1.07 |
ZM65 |
M65*2 | 85 | 16 | 7 | 3 | 78 | 8 | M6 | 5 | 280000 | 200 | 120 | 4.24 | 0.27 |
ZMA65/105 |
M65*2 | 105 | 32 | 8 | 3.5 | 97 | 16 | M8 | 15 | 750000 | 200 | 120 | 25.6 | 1.21 |
ZM70 |
M70*2 | 92 | 18 | 8 | 3.5 | 85 | 9 | M8 | 15 | 305000 | 220 | 130 | 6.61 | 0.36 |
ZMA70/110 |
M70*2 | 110 | 35 | 8 | 3.5 | 102 | 17.5 | M8 | 15 | 810000 | 220 | 130 | 33 | 1.4 |
ZM75 |
M75*2 | 98 | 18 | 8 | 3.5 | 90 | 9 | M8 | 15 | 331000 | 260 | 150 | 8.41 | 0.4 |
ZMA75/125 |
M75*2 | 125 | 38 | 8 | 3.5 | 117 | 19 | M8 | 15 | 880000 | 260 | 150 | 62.2 | 2.11 |
ZM80 |
M80*2 | 105 | 18 | 8 | 3.5 | 95 | 9 | M8 | 15 | 355000 | 285 | 160 | 11.2 | 0.46 |
ZMA80/120 |
M80*2 | 120 | 38 | 8 | 4 | 105 | 17.5 | M8 | 15 | 810000 | 285 | 160 | 44.6 | 1.33 |
ZM85 |
M85*2 | 110 | 18 | 8 | 3.5 | 102 | 9 | M8 | 15 | 385000 | 320 | 190 | 13.1 | 0.49 |
ZM90 |
M90*2 | 120 | 20 | 10 | 4 | 108 | 10 | M8 | 15 | 410000 | 360 | 200 | 21.8 | 0.7 |
ZMA90/130 |
M90*2 | 130 | 38 | 10 | 4 | 120 | 19 | M8 | 15 | 910000 | 360 | 200 | 64.1 | 2.01 |
ZMA90/155 |
M90*2 | 155 | 38 | 10 | 4 | 146 | 19 | M8 | 15 | 1080000 | 360 | 200 | 150 | 3.36 |
ZM100 |
M100*2 | 130 | 20 | 10 | 4 | 120 | 10 | M8 | 15 | 465000 | 425 | 250 | 28.6 | 0.77 |
ZMA100/14 |
M100*2 | 140 | 38 | 12 | 5 | 128 | 19 | M10 | 20 | 940000 | 425 | 250 | 82.8 | 2.23 |
ZM105 |
M105*2 | 140 | 22 | 12 | 5 | 126 | 11 | M10 | 20 | 495000 | 475 | 300 | 44.5 | 1.05 |
ZM110 |
M110*2 | 145 | 22 | 12 | 5 | 133 | 11 | M10 | 20 | 520000 | 510 | 350 | 50.1 | 1.09 |
ZM115 |
M115*2 | 150 | 22 | 12 | 5 | 137 | 11 | M10 | 20 | 550000 | 550 | 400 | 56.2 | 1.13 |
ZM120 |
M120*2 | 155 | 24 | 12 | 5 | 138 | 12 | M10 | 20 | 580000 | 600 | 450 | 68.4 | 1.28 |
ZM125 |
M125*2 | 160 | 24 | 12 | 5 | 148 | 12 | M10 | 20 | 610000 | 640 | 500 | 76.1 | 1.33 |
ZM130 |
M130*2 | 165 | 24 | 12 | 5 | 149 | 12 | M10 | 20 | 630000 | 700 | 550 | 84.3 | 1.36 |
ZM140 |
M140*2 | 180 | 26 | 14 | 6 | 160 | 13 | M12 | 38 | 690000 | 800 | 600 | 133 | 1.85 |
ZM150 |
M150*2 | 195 | 26 | 14 | 6 | 171 | 13 | M12 | 38 | 750000 | 900 | 650 | 188 | 2.24 |
