LM Adjustable Open Linear Bearing
LM Adjustable Open Linear Bearing is a high-performance metric component designed for versatile industrial applications like CNC machines and robotics. This type is a metric dimension series widely used in Japan and other countries. Available in durable Stainless Steel or Synthetic Resin, this series offers Standard, Open, and Adjustable configurations to meet specific needs such as easy installation on pre-assembled shafts or precise clearance tuning. Manufactured to strict metric dimensions, it ensures full interchangeability with international systems while delivering reliable, smooth linear motion.
Technical Specificationsļ¼
LM/LM-AJ/LM-OP Series
| Nominal Part No. | Nominal Shaft Diameter (mm) |
Major Dimensions(mm) | Eccentricity (max) Ī¼ m |
Radial Clearance (max) Ī¼ m |
Basic Load Rating | Nominal Part No. |
|||||||||||||
| Resin Retainer |
Stainless Steel Retainer |
Ball Circuit |
Weight g |
Adjustable Type |

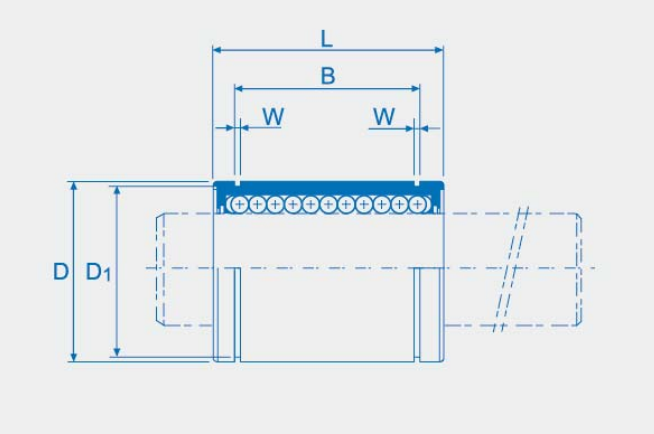

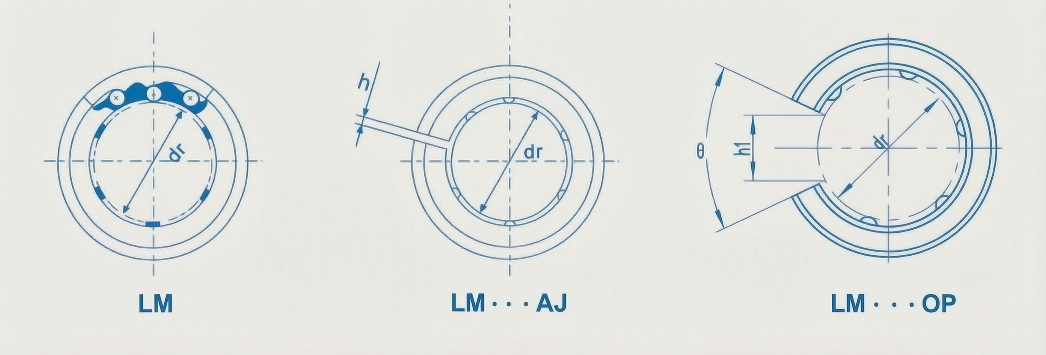

Open Type | dr | D | L | B | W | D1 | h | h1 | Īø | Dynamic C(N) |
Static Co(N) |
|||
LM3UU |
4 | 1.4 | 3 | 7 | 10 | 69 | 105 | LM3 | |||||||||||
LM4UU |
4 | 2 | 4 | 8 | 12 | 88 | 127 | LM4 | |||||||||||
LM5UU |
4 | 4 | 5 | 10 | 15 | 10.2 | 1.1 | 9.6 | ā | ā | ā | 8 | -3 | 167 | 206 | LM5 | |||
LM6UU |
LM6-A | 4 | 8.5 | LM6-AJ | 6 | 12 | 19 | 13.5 | 1.1 | 11.5 | 1 | ā | ā | 12 | -3 | 206 | 265 | LM6 | |
LM8SUU |
4 | 11 | LM8S-AJ | 8 | 15 | 17 | 11.5 | 1.1 | 14.3 | 1 | ā | ā | 12 | -3 | 176 | 225 | LM8S | ||
LM8UU |
LM8-A | 4 | 17 | LM8-AJ | 8 | 15 | 24 | 17.5 | 1.1 | 14.3 | 1 | ā | ā | 12 | -3 | 265 | 402 | LM8 | |
LM10UU |
LM10-A | 4 | 36 | LM10-AJ | 10 | 19 | 29 | 22 | 1.3 | 18 | 1 | ā | ā | 12 | -4 | 373 | 549 | LM10 | |
LM12UU |
LM12-A | 4 | 42 | LM12-AJ | LM12-OP | 12 | 21 | 30 | 23 | 1.3 | 20 | 1.5 | 8 | 80Ā° | 12 | -4 | 412 | 590 | LM12 |
LM13UU |
4 | 49 | LM13-AJ | LM13-OP | 13 | 23 | 32 | 23 | 1.3 | 22 | 1.5 | 9 | 80Ā° | 12 | -4 | 510 | 775 | LM13 | |
LM16UU |
LM16-A | 5 | 76 | LM16-AJ | LM16-OP | 16 | 28 | 37 | 26.5 | 1.6 | 27 | 1.5 | 11 | 80Ā° | 12 | -6 | 775 | 1180 | LM16 |
LM20UU |
LM20-A | 5 | 100 | LM20-AJ | LM20-OP | 20 | 32 | 42 | 30.5 | 1.6 | 30.5 | 1.5 | 11 | 60Ā° | 15 | -6 | 863 | 1370 | LM20 |
LM25UU |
LM25-A | 6 | 240 | LM25-AJ | LM25-OP | 25 | 40 | 59 | 41 | 1.85 | 38 | 2 | 12 | 50Ā° | 15 | -6 | 980 | 1570 | LM25 |
LM30UU |
LM30-A | 6 | 270 | LM30-AJ | LM30-OP | 30 | 45 | 64 | 44.5 | 1.85 | 43 | 2.5 | 15 | 50Ā° | 15 | -8 | 1570 | 2750 | LM30 |
LM35UU |
LM35-A | 6 | 425 | LM35-AJ | LM35-OP | 35 | 52 | 70 | 49.5 | 2.1 | 49 | 2.5 | 17 | 50Ā° | 20 | -8 | 1670 | 3140 | LM35 |
LM40UU |
LM40-A | 6 | 654 | LM40-AJ | LM40-OP | 40 | 60 | 80 | 60.5 | 2.1 | 57 | 3 | 20 | 50Ā° | 20 | -10 | 2162 | 4020 | LM40 |
LM50UU |
LM50-A | 6 | 1700 | LM50-AJ | LM50-OP | 50 | 80 | 100 | 74 | 2.6 | 76.5 | 3 | 25 | 50Ā° | 20 | -13 | 3820 | 7940 | LM50 |
LM60UU |
LM60-A | 6 | 2000 | LM60-AJ | LM6O-OP | 60 | 90 | 110 | 85 | 3.15 | 86.5 | 3 | 30 | 50Ā° | 25 | -13 | 4710 | 10000 | LM60 |
LM80UU |
LM80_A | 6 | 4420 | LM80-AJ | LM8O-OP | 80 | 120 | 140 | 105.5 | 4.15 | 116 | 3 | 40 | 51Ā° | 25 | -20 | 7350 | 16000 | LM80 |
LM100UU |
LM100-A | 6 | 8600 | LM100-AJ | LMlOO-OP | 100 | 150 | 175 | 125.5 | 4.15 | 145 | 3 | 50 | 52Ā° | 30 | -20 | 14100 | 34800 | LM100 |
LM120UU |
LM120-A | 8 | 15000 | LM120-AJ | LM120-OP | 120 | 180 | 200 | 158.6 | 4.15 | 175 | 3 | 85 | 53Ā° | 30 | -25 | 16400 | 4000 | LM120 |
LM150UU |
LM150-A | 8 | 20250 | LM150-AJ | LM150-QP | 150 | 210 | 240 | 170.6 | 5.15 | 204 | 3 | 105 | 54Ā° | 40 | -25 | 21100 | 54300 | LM150 |
LM_L Series
| Nominal Part No. | Nominal Shaft Diamete (mm) |
Major Dimensions (mm) | Eccentricity (max) Ī¼m |
Basic Load Rating | Nominal Part No. |
||||||||
| Resin Retainer |
Stainless Steel Retainer |
Ball Circuit |
Weight g |
dr | D | L | B | L | D1 | Dynamic C(N) | Static Co(N) | ||
| LM3L | 4 | 3.2 | 3 | 7 | 19 | 19 | 138 | 210 | LM3L | ||||
| LM4L | 4 | 4.8 | 4 | 8 | 23 | 10 | 176 | 254 | LM4L | ||||
| LM5L | 4 | 11 | 5 | 10 | 28 | 20.4 | 1.1 | 9.6 | 10 | 256 | 412 | LM5L | |
| LM6L | LM6L-A | 4 | 16 | 6 | 12 | 35 | 77 | 1.1 | 11.5 | 15 | 323 | 530 | LM6L |
| LM8L | LM8L-A | 4 | 31 | 8 | 15 | 45 | 35 | 1.1 | 14.3 | 15 | 431 | 784 | LM8L |
| LM10L | LM10L-A | 4 | 62 | 10 | 19 | 55 | 44 | 1.3 | 18 | 15 | 588 | 1,100 | LM10L |
| LM12L | LM12L-A | 4 | 80 | 12 | 21 | 57 | 46 | 1.3 | 20 | 15 | 813 | 1,570 | LM12L |
| LM13L | LM13L-A | 4 | 90 | 13 | 23 | 61 | 46 | 1.3 | 22 | 15 | 813 | 1,570 | LM13L |
| LM16L | LM16L-A | 5 | 145 | 16 | 28 | 70 | 53 | 1.6 | 27 | 15 | 1,230 | 2,350 | LM16L |
| LM20L | LM20L-A | 5 | 180 | 20 | 32 | 80 | 61 | 1.6 | 30.5 | 20 | 1,400 | 2,740 | LM20L |
| LM25L | LM25L-A | 6 | 440 | 25 | 40 | 112 | 82 | 1.85 | 38 | 20 | 1,560 | 3.14 | LM25L |
| LM30L | LM30L-A | 6 | 480 | 30 | 45 | 123 | 89 | 1.85 | 43 | 20 | 2,490 | 5,490 | LM30L |
| LM35L | LM35L-A | 6 | 795 | 35 | 52 | 135 | 99 | 2.1 | 49 | 25 | 2,650 | 6,270 | LM35L |
| LM40L | LM40L-A | 6 | 1,170 | 40 | 60 | 151 | 121 | 2.1 | 57 | 25 | 3,430 | 8,040 | LM40L |
| LM50L | 6 | 3,100 | 50 | 80 | 192 | 148 | 2.6 | 76.5 | 25 | 6,080 | 15,900 | LM50L | |
| LM60L | 6 | 3,500 | 60 | 90 | 209 | 170 | 3.15 | 86.5 | 30 | 7,650 | 20,000 | LM60L | |
