LME Adjustable Open Linear Bearing

LME Adjustable Open Linear Bearing is a precision European-standard linear guide ideal for industrial automation. Available in Stainless Steel or Synthetic Resin, it offers Standard, Open, and Adjustable configurations for versatile installation and clearance control. Built to exact metric tolerances, it ensures seamless compatibility and smooth operation.

Technical Specifications：

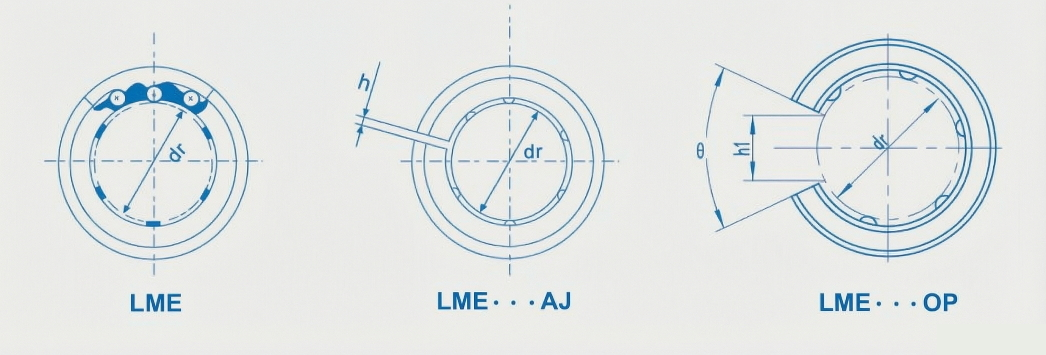

LME/LME-AJ/LME-OP Series

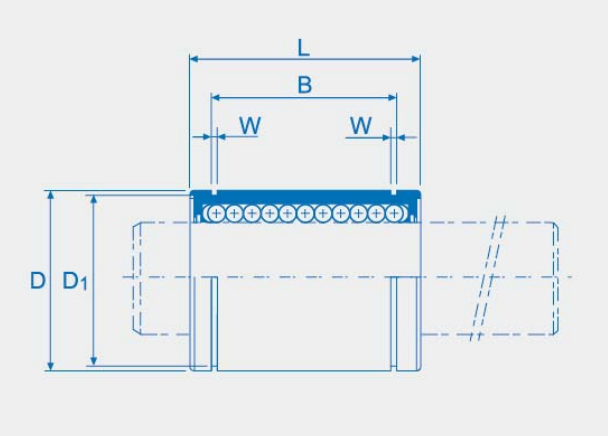

Nominal Part No.						Nominal Shaft Diameter (mm)	Major Dimensions(mm)								Eccentricity (max) μ mm	Radial Clearance (max) μ mm	Basic Load Rating		Nominal Part No.
Resin Retainer	Stainless Steel Retainer	Ball Circuit	Weight g	Adjustable Type	Open Type	dr	D	L	B	W	D1	h	h1	θ	Eccentricity (max) μ mm	Radial Clearance (max) μ mm	Dynamic C(N)	Static Co(N)	Nominal Part No.
LME5		4	11	LME5-AJ	LME5-OP	5	12	22	14.5	1.1	11.5	1			12	-3	206	265	LME5
LME8	LME8-A	4	22	LME8-AJ		8	16	25	16.5	1.1	15.2	1			12	-3	265	402	LME8
LME12	LME12-A	4	45	LME12-AJ	LME12-OP	12	22	32	22.9	1.3	21	1.5	7.5	78°	12	-4	510	784	LME12
LME16	LME16-A	5	60	LME16-AJ	LME16-OP	16	26	36	24.9	1.3	24.9	1.5	10	78°	12	-4	578	892	LME16
LME20	LME20-A	5	102	LME20-AJ	LME20-OP	20	32	45	31.5	1.6	30.5	2	10	60°	15	-6	862	1370	LME20
LME25	LME25-A	6	235	LME25-AJ	LME25-OP	25	40	58	44.1	1.85	38	2	12.5	60°	15	-6	980	1570	LME25
LME30	LME30-A	6	360	LME30-AJ	LME30-OP	30	47	68	52.1	1.85	44.5	2	12.5	50°	15	-8	1570	2740	LME30
LME40	LME40-A	6	720	LME40-AJ	LME40-OP	40	62	80	60.6	2.15	59	3	16.8	50°	17	-8	2160	4020	LME40
LME50		6	1015	LME50-AJ	LMESO-OP	50	75	100	77.6	2.65	72	3	21	50°	17	-13	3820	7940	LME50
LME60	LME60-A	6	2220	LME60-AJ	LME60-QP	60	90	125	101.7	3.15	86.5	3	27.2	54°	20	-13	4700	9800	LME60

LME-L Series

Nominal Part No.				Nominal Shaft Diameter (mm)	Major Dimensions(mm)					Eccentricity (max) μm	Basic Load Rating		Nominal Part No.
Resin Retainer	Stainless Steel Retainer	Ball Circuit	Weight g	dr	D	L	B	W	D1	Eccentricity (max) μm	Dynamic C(N)	Static Co(N)	Nominal Part No.
LME8LUU	LME8L-A	4	40	8	16	46	33	1.1	15.2	15	421	804	LME8L
LME12LUU	LME12L-A	4	80	12	22	61	45.8	1.3	21	15	813	1,570	LME12L
LME16LUU	LME16L-A	5	115	16	26	68	49.8	1.3	24.9	15	921	1,780	LME16L
LME20LUU	LME20L-A	5	180	20	32	80	61	1.6	30.5	17	1,370	2,740	LME20L
LME25LUU	LME25L-A	6	430	25	40	11?	82	1.85	38	17	1,570	3,140	LME25L
LME30LUU	LME30L-A	6	615	30	47	123	104.2	1.85	44.5	17	2,500	5,490	LME30L
LME40LUU	LME40L-A	6	1,400	40	62	151	121.2	2.15	59	20	3,430	8,040	LME40L
LME50LUU		6	2.32	50	75	19?	155.2	2.65	72	20	6,080	15,900	LME50L
LME60LUU		6	3,500	60	90	209	170	3.15	86.5	25	7,550	20,000	LME60L
