Moving Walkway Escalator Chain PT131 PT133 PT135

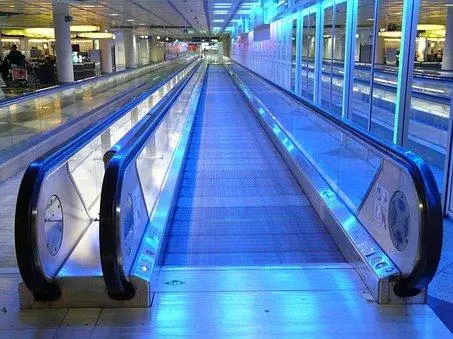

A moving walkway escalator chain is a mechanical device used in escalators. Moving walkway escalator chains move people and goods horizontally and are powered by AC induction motors. They’re commonly found in public buildings, such as shopping malls. Unlike the escalators that sway up and down, these stair-like escalators are easy to maintain.
Moving Walkway Escalator Chains

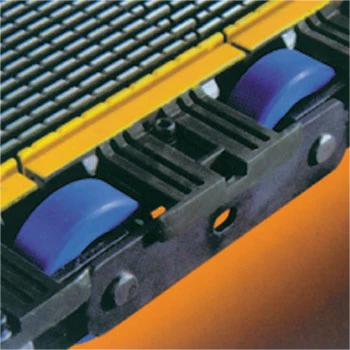

A moving walkway escalator chain is a mechanical device used in escalators. The chains attach to the escalator’s steps, causing them to move in a helical motion. Its main components include the drive system, which comprises a reversing element configured as a chain wheel. The chain comprises a plurality of plate links connected by joints. Step bolts and rollers connect the chain to its steps. The tread length of the escalator is 400 mm, and the chain pitch is 133 mm.
The curved sections of escalator tracks are located on the top landing platforms. These platforms contain the main drive gear and the step return idler sprockets. The bottom landing platform has a floor plate that provides a place for passengers to stand. The floor plate is fixed and is not removable, whereas the comb plate is removable. A moving walkway is also possible if the incline of the track is less than 14 degrees. The moving walkway escalator chain is powered by an AC induction motor. The machine may be 67.5 cm or wider, with the length varying from 62 cm to 140 cm.
|
 |
Moving Walkway Escalator Chain Specifications

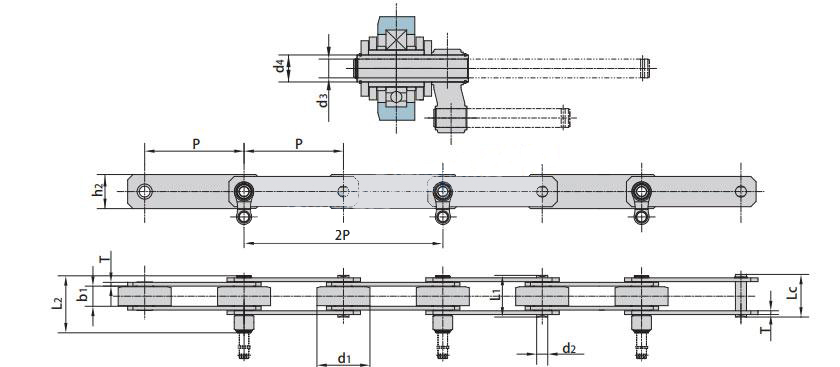

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | (Hollow) Pin diameter | Pin length | Plate dimension | Ultimate tensile strength | Average tensile strength | Weight per step | ||||
| P | d1 max | b1 min | d2 max | d3 min | d4 max | L1 max |
L2 max |
Lc max | h2 | T | Q min |
Q0 | q | |
| mm | kN/lbf | kN | kg | |||||||||||
| PT131HP | 131.33 | 70.0 | 27.0 | 14.63 | 12.7 | 18.26 | 55.0 | 75.3 | 56.0 | 40.0 | 5.0 | 150.0/33721 | 165.0 | 7.53 |
| PT135HPF1 | 135.46 | 76.2 | 24.0 | 12.70 | 14.1 | 20.00 | 51.3 | 68.1 | – | 40.0 | 5.0 | 127.0/28550 | 140.0 | – |

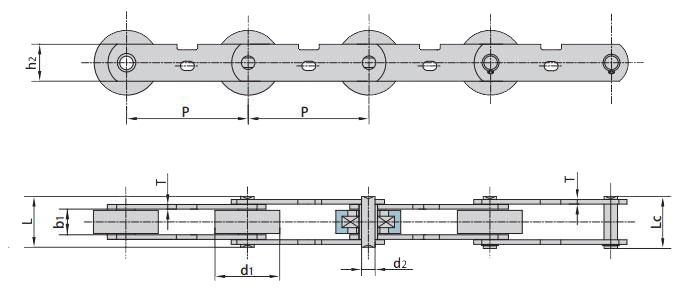

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max |
Lc max |
h2 | T max |
Q min |
Q0 | q | |
| mm | kN/lbf | kN | kg/m | ||||||||
| PT131 | 131.33 | 70.00 | 27.00 | 14.63 | 55.0 | 56.0 | 40.0 | 5.0 | 180.0/40465 | 198.0 | 5.97 |
| PT133 | 133.33 | 70.00 | 27.00 | 14.63 | 55.0 | 56.0 | 40.0 | 5.0 | 180.0/40465 | 198.0 | 5.75 |
Moving walkway escalator chains move people and goods horizontally and are working with AC induction motors. They’re commonly working in public buildings. Such as shopping malls. Unlike the escalators that sway up and down, these stair-like escalators are easy to maintain.
Moving Walkways Are Escalator Chains
Escalator chains are not the only types of escalators, and moving walkways are another type. Depending on the design, they can be as small as 67.5 cm, or as large as 140 cm. Powered by AC induction motors and do not require a handrail. Horizontal moving walkways are also available but usually do not include one. These chains can move at a very high speed, which is more than enough to be dangerous for the rider.
Both escalators and moving walkways are working with alternating current motors. The speed of the escalator is approximately one to two feet per second. The standard escalator rise is 60 ft (18 m).
