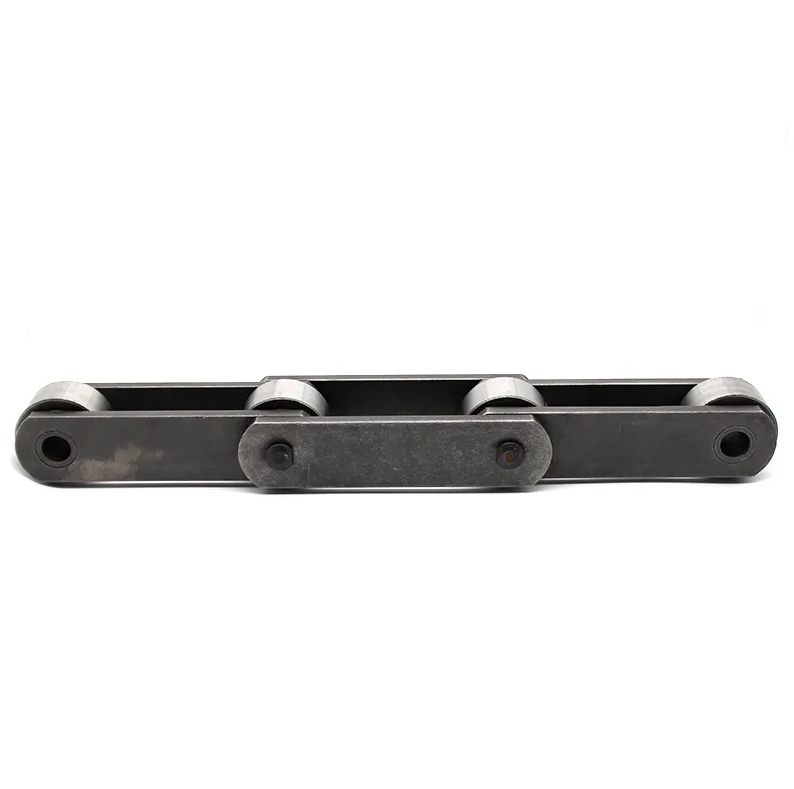

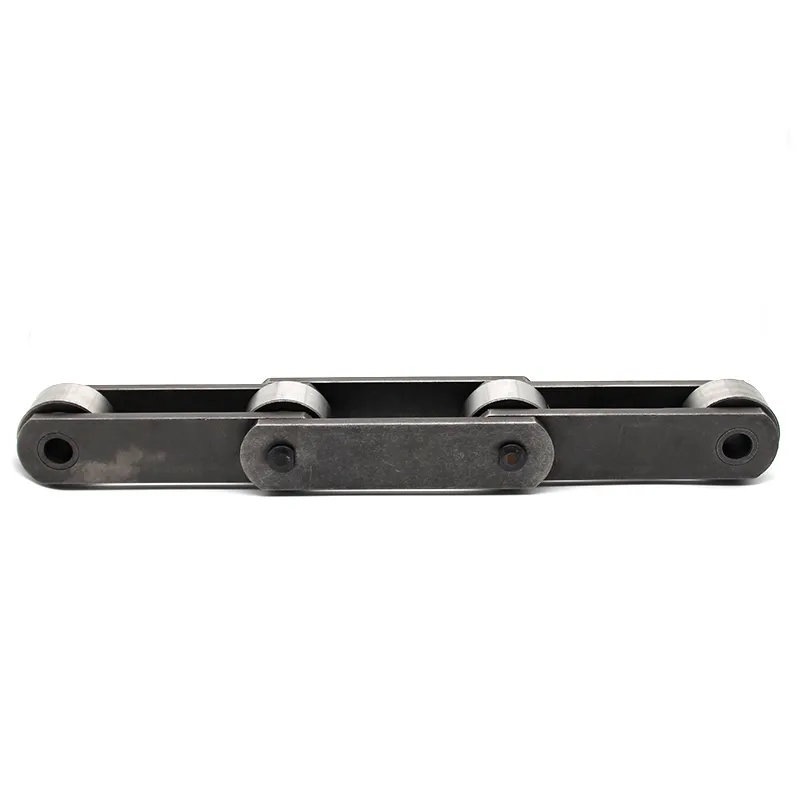

Palm Oil Conveyor Mill Chain With Straight Plate
A palm oil mill chain(Mill Chain With Straight Plate) is a transmission chain. It working with convey materials in palm oil production. In the palm oil production line, the chain needs to have good tensile strength and wear resistance to be produced safely and efficiently.
Carbon Steel Stainless Steel Palm Oil Chain Conveyor mill Chain With Straight Plate
Product Description
A palm oil mill chain(Mill Chain With Straight Plate) is a transmission chain. It working with convey materials in palm oil production. In the palm oil production line, the chain needs to have good tensile strength and wear resistance to be produced safely and efficiently. The most common chain of palm oil processing line is the palm oil mill chain, palm oil conveying chain, and palm oil hollow pin giving chain. As a professional palm oil mill chain manufacturer, we have carried out careful material selection, precision machining, special heat treatment, precision assembly, and pre-lubrication to produce palm oil mill chains.
Therefore, our palm oil grinding chain has good accuracy, durability, wear resistance, and can efficiently convey materials. In addition to the palm oil mill chain, the company also produces timber obtaining chain, industrial cement chain, coal gangue chain, timber processing industry, cement production industry, coal processing industry, sugar industry, and other conveying application chains. The product has stable performance and excellent quality, conforming to ISO, ANSI, DIN, BS, JIS, and different standards. If you are looking for a palm oil processing chain, please do not hesitate to contact us!

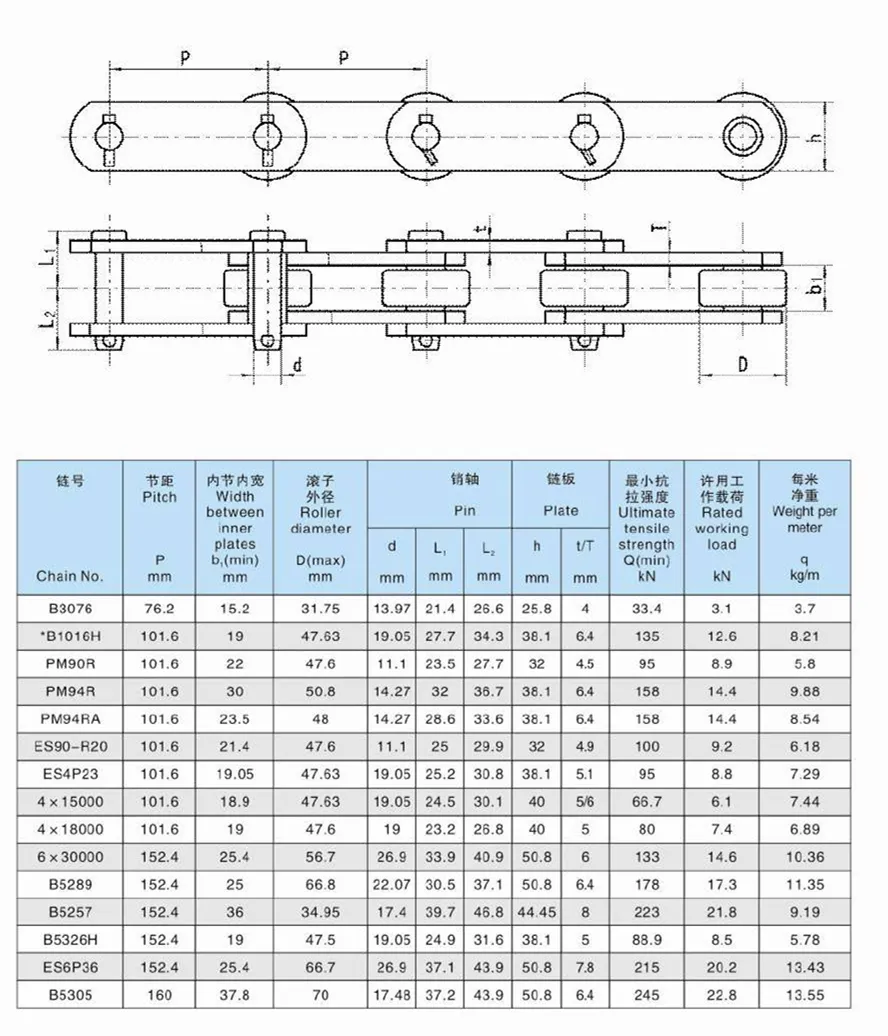

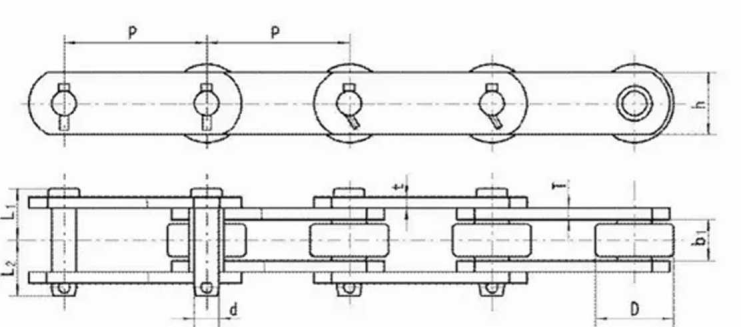

Chain No. |
Pitch P mm | Width between inner plates b1(min) mm | Roller diameter | Pin | Plate | Ultimate tensile strength | Rated working load kN | Weight per meter q kg/m | |||
| D(max) mm | d mm | L1 mm | L2 mm | h mm | t/T mm | Q(min) KN | |||||
| B3076 | 76.2 | 15.2 | 31.75 | 13.07 | 21.4 | 26.6 | 25.8 | 4 | 33.4 | 3 1 | 3.7 |
| •B1016H | 101.6 | 19 | 47.63 | 19.05 | 27.7 | 34.3 | 36.1 | 6.4 | 135 | 12.6 | 8 21 |
| PM90R | 101.6 | 22 | 470 | 11.1 | 23.5 | 27.7 | 32 | 4.5 | 95 | 8.9 | 5.8 |
| PM94R | 101.6 | 30 | 50.8 | 14.27 | 32 | 36.7 | 36.1 | 6.4 | 158 | 14.4 | 9.88 |
| PM94RA | 101.6 | 23.5 | 46 | 14.27 | 20.6 | 33.6 | 38.1 | 6.4 | 158 | 14.4 | 8.54 |
| ES90-R20 | 101.6 | 21.4 | 476 | 11.1 | 25 | 29.9 | 32 | 49 | 100 | 92 | 6.18 |
| ES4P23 | 101.6 | 19.05 | 47.63 | 19.05 | 25.2 | 30.8 | 38.1 | 5.1 | 95 | 88 | 7.29 |
| 4×15000 | 101.6 | 18.9 | 47.63 | 19.05 | 24.5 | 30.1 | 40 | 5.6 | 66 7 | 6 1 | 7.44 |
| 4×18000 | 101.6 | 19 | 47.6 | 19 | 23.2 | 26.8 | 40 | 5 | 80 | 74 | 6.89 |
| 6 x 30000 | 152.4 | 25.4 | 56.7 | 26.9 | 33.9 | 40.9 | 50.8 | 6 | 133 | 14.6 | 10.36 |
| B5289 | 152 4 | 25 | 66.8 | 22.07 | 30.5 | 37.1 | 50.8 | 64 | 178 | 17.3 | 11.35 |
| B5257 | 152.4 | 36 | 34.95 | 17.4 | 39.7 | 45 8 | 44 45 | 8 | 223 | 21.8 | 9.19 |
| B5326H | 152.4 | 19 | 47.5 | 19.05 | 24.9 | 31.6 | 38.1 | 5 | 88.9 | 8S | 5.78 |
| ES6P36 | 152 4 | 25.4 | 66.7 | 26.9 | 37.1 | 43.9 | 50.8 | 7.8 | 215 | 20.2 | 13.43 |
| B5305 | 37.8 | 70 | 17.48 | 37.2 | 43.9 | 50.8 | 64 | 245 | 22.8 | 13.55 | |
There are two kinds of materials for pin and bushing, which are carbon steel and stainless steel.
