Silent Chains for Engine Timing CL04D-4×5W CL05D-4×4W CL05D-3×4W

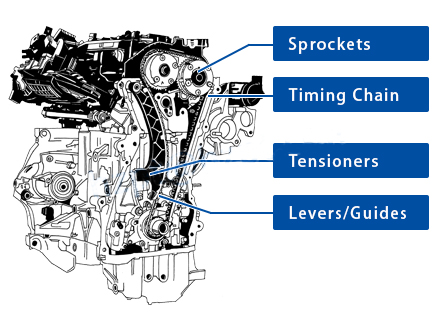

An automobile engine’s timing chain system is used to adjust the movement timing of each component to operate the “intake” process correctly → compression → combustion→ engine “exhaust.”
Automotive engine timing chain system has won a high reputation for meeting the stringent requirements of high-power, compact and high-performance engines, such as excellent wear resistance, fatigue strength, and quietness. In particular, for the 6.35mm pitch silent chain and diesel engine roller chain that is first used in small car engines worldwide, we lead the global auto engine chain market with our unique surface treatment technology.
Silent Chains for Engine Timing

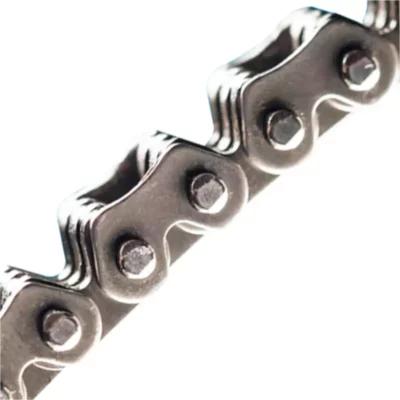

A silent chain for engine timing is mainly working in automobile engine timing systems. The chain is the critical engine component with excellent performance, high strength, durability, silencing, etc.
|
 |

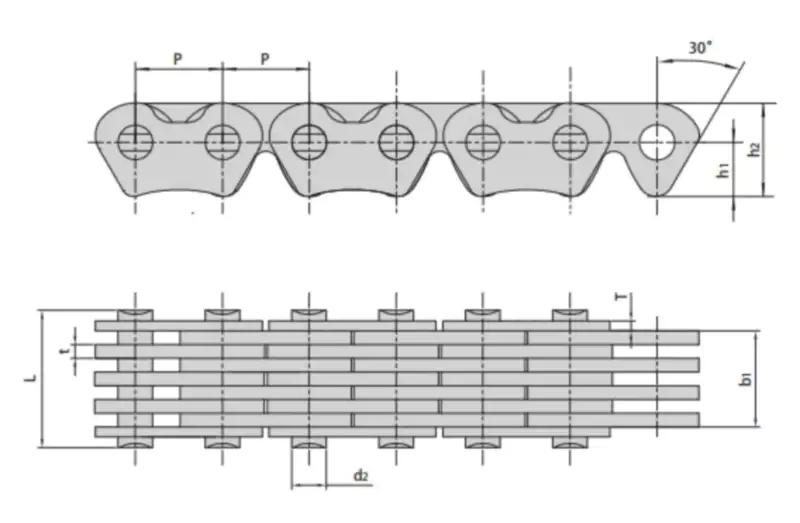

| Chain No. | Pitch | Chain width |
Pin diameter |
Pin length |
Plate depth |
Plate thickness |
Guide form |
Number of plates | Ultimate tensile strength |
Weight per meter |
|
| P | b1 min | d2 max | L max | h2 max | t max | T max | n | Q min | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |||
| CL04D-4×5W | 6.35 | 7.6 | 2.40 | 11.70 | 6.95 | 1.2 | 0.75 | Outside | 9(4X5) | 12.4/2790 | 0.38 |
| CL05D-4×4W | 8.00 | 7.6 | 2.92 | 11.78 | 9.59 | 1.3 | 1.04 | Outside | 8(4X4) | 16.5/3712 | 0.51 |
| CL05D-3×4W | 8.00 | 6.5 | 2.92 | 10.48 | 9.59 | 1.3 | 1.04 | Outside | 7(3X4) | 12.4/2790 | 0.45 |
The silent chain is using metal links held in place by cylindrical pins. This type of chain is featured in the Ford engine developing the ILSAC GF-6 chain wear test.
It is a standard design with many advantages:
- Simplicity
- Lower cost
- Low chain noise
The roller chain is a more complex system. Designed to reduce friction, in which link pins are reinforced by roller support (or bushing) that accommodates freely rotating steel rollers. However, this type has several disadvantages:
- Expensive to manufacture
- Rapid wear if particles become trapped
- Significant chain noise
