Stainless Steel Short Pitch Conveyor Chain With Extended Pins
We offer a wide variety of chains based on our years of experience according to the industry applications, one of which is extended pin chain, in these chains the pins are extended outside the chain for housing special attachments or for performing push or pull operations or for any special purpose applications. These pins may be alternately placed or placed at a particular distance as according to customers requirements, manufactured with finest materials, excellent machining processes, build to standard dimensions, maintaining the quality, offering a product with sustainable long product life.

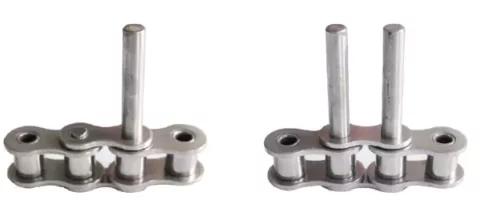

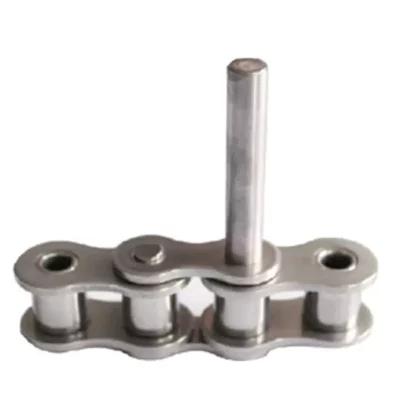

Stainless Steel Short Pitch Conveyor Chain With Extended Pins
Stainless Steel Short Pitch Conveyor Chain With Extended Pins are working in a wide variety of applications. Such as packaging, food, cosmetics, pharmaceutical, bottling, glass containers,manufacturing and many other industrial applications. These chains are usually manufactured using the components of standard transmission roller chains and specially designed attachments or parts.
Raw materials used are high quality carbon steels, stainless steels,plastic resins, carbon steels with protective coatings and carbon steels that undergo special surface hardening treatments.
We offer a wide variety of chains based on our years of experience according to the industry applications. One of which is extended pin chain, in these chains the pins are extending outside the chain for housing special attachments or for performing push or pull operations or for any special purpose applications.
These pins is place at a particular distance as according to customers requirements, manufacture with finest materials, excellent machining processes. And build to standard dimensions, maintaining the quality, offering a product with sustainable long product life.

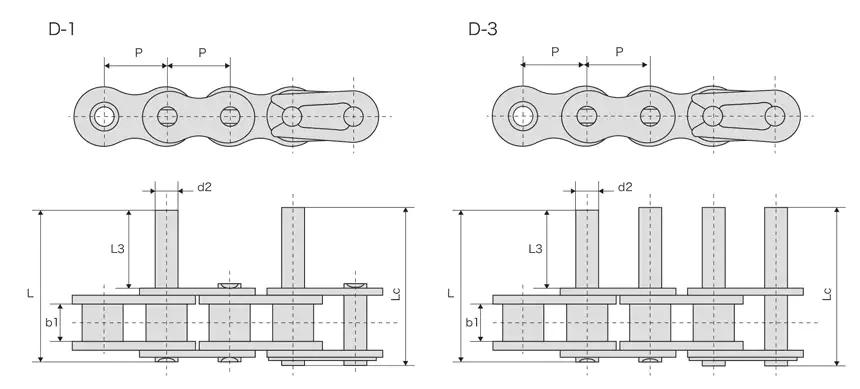

The extended pins for roller chains include D-1, D-3 and D-5. They are the most widely using attachments type in the industry. If you don’t find the right extended pin type you requested, contact us and our engineer will give you a right solution.

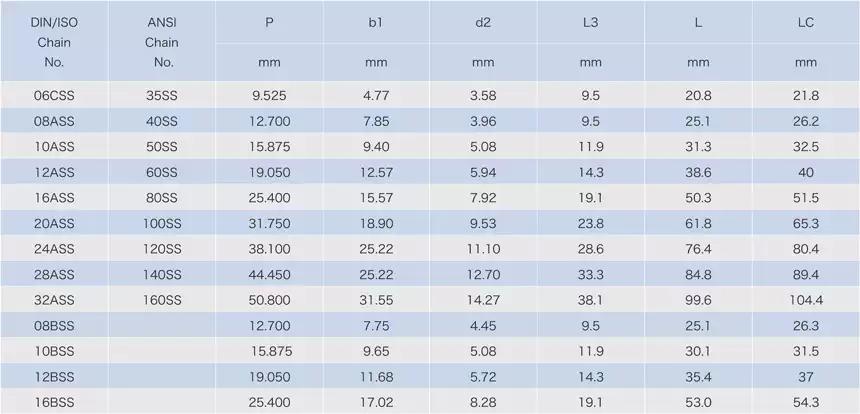

DIN/ISO Chain No. |
ANSI Chain No. | P mm | b1 mm | d2 mm | L3 mm | L mm | LC mm |
| 06CSS | 35SS | 9.525 | 4.77 | 3.58 | 9.5 | 208 | 21.8 |
| 08ASS | 40SS | 12.700 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 |
| 10ASS | 50SS | 15.875 | 9.40 | 5.08 | 11.9 | 31.3 | 325 |
| 12ASS | 60SS | 19.050 | 12.57 | 5.94 | 14.3 | 38.6 | 40 |
| 16ASS | 80SS | 25.400 | 15.57 | 7.92 | 19.1 | 50.3 | 51.5 |
| 20ASS | 100SS | 31.750 | 18.90 | 9.53 | 23.8 | 61.8 | 65.3 |
| 24ASS | 120SS | 38.100 | 25.22 | 11.10 | 28.6 | 76.4 | 80.4 |
| 28ASS | 140SS | 44.450 | 25.22 | 12.70 | 33.3 | 84.8 | 89.4 |
| 32ASS | 160SS | 50.800 | 31.55 | 14.27 | 38.1 | 99.6 | 104.4 |
| 08BSS | 12.700 | 7.75 | 4.45 | 9.5 | 25.1 | 26.3 | |
| 10BSS | 15.875 | 9.65 | 5.08 | 11.9 | 30.1 | 31.5 | |
| 12BSS | 19.060 | 11.68 | 5.72 | 14.3 | 35.4 | 37 | |
| 16BSS | 25.400 | 17.02 | 8.28 | 19.1 | 53.0 | 54.3 |
