China Taper Lock Pulleys SPZ-1 Manufacturer
Single Groove SPZ Taper Lock Pulleys (SPZ-01)
SPZ-1 groove taper lock pulley
Key Benefits
- Universal Dual-Duty Grooves: Fully compliant with ISO 4183 standards to accommodate both standard V-belts and wedge belts.
- Precision Balancing: Statically balanced to exceed Grade G6.3 (ISO 1940) for smooth, high-speed operation.
- High Line Speed Capacity: Safe for rim speeds up to a maximum of 40 m/s.
- Corrosion Protection: Surface blackened to prevent rust, serving as an ideal primer while eliminating the need to degrease prior to installation.
- High Manufacturing Accuracy: Strict wobble tolerance exceeds DIN 2211 Part 1 requirements.
- Easy Mounting: Utilizes standard Taper Lock bushings for rapid, effortless installation and removal.
- Customization: Special designs, non-standard sizes, and custom bores are available upon request.

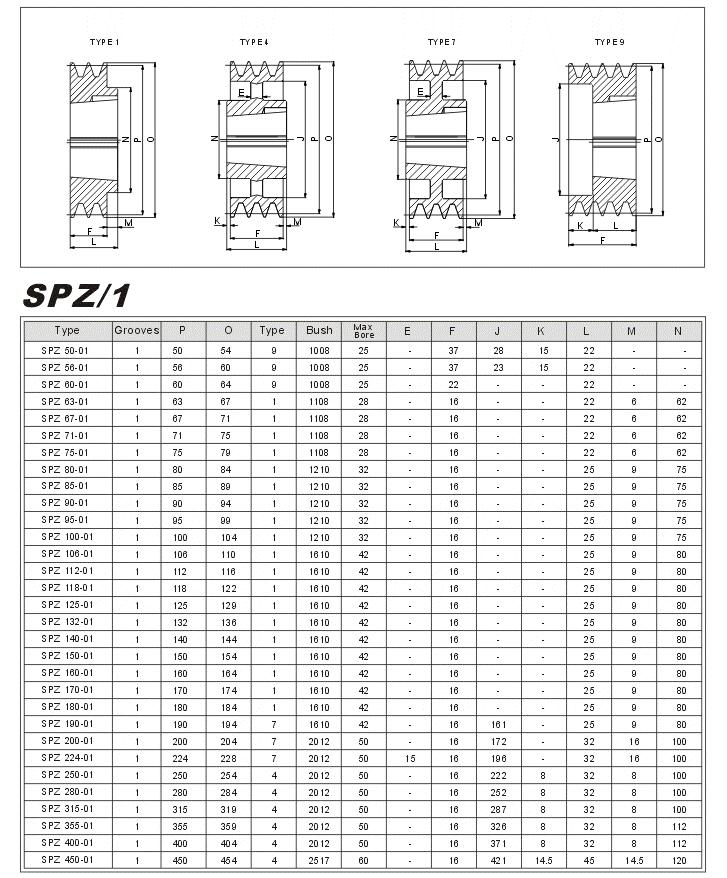

Dimensions & Specification Chart
| Type | Grooves | Dp (mm) | De (mm) | Design Type | Bush No. | Max Bore (mm) | E | F | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPZ 50-01 | 1 | 50 | 54 | 9 | 1008 | 25 | – | 37 | 28 | 15 | 22 | – | – |
| SPZ 56-01 | 1 | 56 | 60 | 9 | 1008 | 25 | – | 37 | 23 | 15 | 22 | – | – |
| SPZ 60-01 | 1 | 60 | 64 | 9 | 1008 | 25 | – | 22 | – | – | 22 | – | – |
| SPZ 63-01 | 1 | 63 | 67 | 1 | 1108 | 28 | – | 16 | – | – | 22 | 6 | 62 |
| SPZ 67-01 | 1 | 67 | 71 | 1 | 1108 | 28 | – | 16 | – | – | 22 | 6 | 62 |
| SPZ 71-01 | 1 | 71 | 75 | 1 | 1108 | 28 | – | 16 | – | – | 22 | 6 | 62 |
| SPZ 75-01 | 1 | 75 | 79 | 1 | 1108 | 28 | – | 16 | – | – | 22 | 6 | 62 |
| SPZ 80-01 | 1 | 80 | 84 | 1 | 1210 | 32 | – | 16 | – | – | 25 | 9 | 75 |
| SPZ 85-01 | 1 | 85 | 89 | 1 | 1210 | 32 | – | 16 | – | – | 25 | 9 | 75 |
| SPZ 90-01 | 1 | 90 | 94 | 1 | 1210 | 32 | – | 16 | – | – | 25 | 9 | 75 |
| SPZ 95-01 | 1 | 95 | 99 | 1 | 1210 | 32 | – | 16 | – | – | 25 | 9 | 75 |
| SPZ 100-01 | 1 | 100 | 104 | 1 | 1210 | 32 | – | 16 | – | – | 25 | 9 | 75 |
| SPZ 106-01 | 1 | 106 | 110 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 0 | 80 |
| SPZ 112-01 | 1 | 112 | 116 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 118-01 | 1 | 118 | 122 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 125-01 | 1 | 125 | 129 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 132-01 | 1 | 132 | 136 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 140-01 | 1 | 140 | 144 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 150-01 | 1 | 150 | 154 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 160-01 | 1 | 160 | 164 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 170-01 | 1 | 170 | 174 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 180-01 | 1 | 180 | 184 | 1 | 1610 | 42 | – | 16 | – | – | 25 | 9 | 80 |
| SPZ 190-01 | 1 | 190 | 194 | 7 | 1610 | 42 | – | 16 | 161 | – | 25 | 9 | 80 |
| SPZ 200-01 | 1 | 200 | 204 | 7 | 2012 | 50 | – | 16 | 172 | – | 32 | 16 | 100 |
| SPZ 224-01 | 1 | 224 | 228 | 7 | 2012 | 50 | 15 | 16 | 196 | – | 32 | 16 | 100 |
| SPZ 250-01 | 1 | 250 | 254 | 4 | 2012 | 50 | – | 16 | 222 | 8 | 32 | 8 | 100 |
| SPZ 280-01 | 1 | 280 | 284 | 4 | 2012 | 50 | – | 16 | 252 | 8 | 32 | 8 | 100 |
| SPZ 315-01 | 1 | 315 | 319 | 4 | 2012 | 50 | – | 16 | 287 | 8 | 32 | 8 | 100 |
| SPZ 355-01 | 1 | 355 | 359 | 4 | 2012 | 50 | – | 16 | 326 | 8 | 32 | 8 | 112 |
| SPZ 400-01 | 1 | 400 | 404 | 4 | 2012 | 50 | – | 16 | 371 | 8 | 32 | 8 | 112 |
| SPZ 450-01 | 1 | 450 | 454 | 4 | 2517 | 60 | – | 16 | 421 | 14.5 | 45 | 14.5 | 120 |
