ASNU Roller Type Freewheel

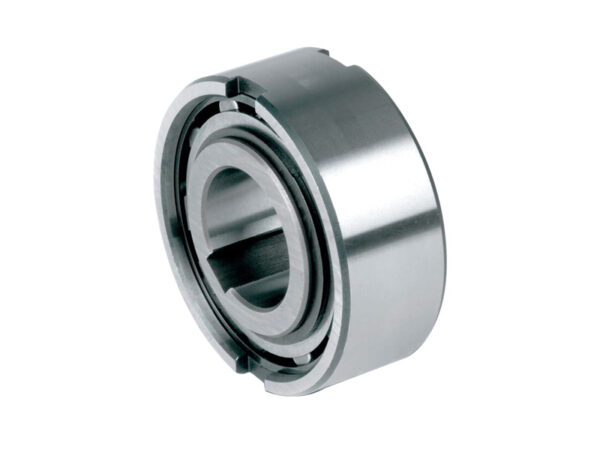

Type ASNU is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads.Lubrication and sealing must also be provided by the installation.
Type ASNU is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads.

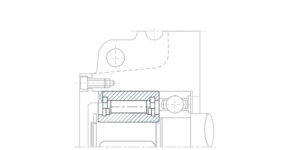

Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 63.ball bearings. A typical arrangement is to install this type alongside a bearing within the same location tolerances. The inner race keys to the shaft. The outer race has positive N6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission. If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race of + S/2.
| TYPE | Size | Torque | Overrunning Speeds | Dimensions | Weight | Drag Torque | ||||||||
| mm | TKN (Nm) | nmax (min⁻¹) | nmax (min⁻¹) | Dn6 (mm) | L (mm) | D6 (mm) | b (mm) | t (mm) | s (mm) | e (mm) | f (mm) | kg | Ncm | |
ASNU |
8 | 9.2 | 3300 | 5000 | 35 | 13 | 28 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.07 | 1.6 |
| 12 | 9.2 | 3300 | 5000 | 35 | 13 | 28 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.06 | 1.6 | |
| 15 | 24 | 2400 | 3600 | 42 | 18 | 37 | 5 | 1.8 | 2.4 | 0.8 | 0.3 | 0.11 | 1.9 | |
| 17 | 39 | 2300 | 3400 | 47 | 19 | 40 | 5 | 2.3 | 2.4 | 1.2 | 0.8 | 0.15 | 1.9 | |
| 20 | 62 | 2100 | 3100 | 52 | 21 | 42 | 6 | 2.3 | 2.4 | 1.2 | 0.8 | 0.19 | 1.9 | |
| 25 | 100 | 1700 | 2600 | 62 | 24 | 51 | 8 | 2.8 | 2.4 | 1.2 | 0.8 | 0.38 | 5.6 | |
| 30 | 204 | 1400 | 2200 | 72 | 27 | 60 | 10 | 2.5 | 2.4 | 1.8 | 1 | 0.54 | 14 | |
| 35 | 306 | 1200 | 1900 | 80 | 31 | 70 | 12 | 3.5 | 2.4 | 1.8 | 1 | 0.74 | 16 | |
| 40 | 430 | 1100 | 1700 | 90 | 33 | 78 | 12 | 4.1 | 2.5 | 1.8 | 1 | 0.92 | 38 | |
| 45 | 624 | 1000 | 1600 | 100 | 36 | 85 | 14 | 4.6 | 2.5 | 1.8 | 1 | 1.31 | 43 | |
| 50 | 810 | 850 | 1350 | 110 | 40 | 92 | 14 | 5.6 | 2.5 | 1.8 | 1 | 1.74 | 55 | |
| 60 | 1460 | 750 | 1050 | 130 | 46 | 110 | 18 | 5.5 | 3.6 | 2.6 | 1.5 | 2.77 | 110 | |
| 70 | 1840 | 600 | 950 | 150 | 51 | 125 | 20 | 6.9 | 3.6 | 2.6 | 1.5 | 4.16 | 140 | |
| 80 | 2620 | 550 | 850 | 170 | 58 | 140 | 20 | 7.5 | 3.6 | 2.6 | 1.5 | 6.09 | 180 | |
| 90 | 4260 | 500 | 750 | 190 | 64 | 160 | 20 | 8 | 3.6 | 2.6 | 2 | 8.2 | 230 | |
| 100 | 5800 | 450 | 680 | 215 | 73 | 175 | 24 | 8.5 | 3.6 | 2.6 | 2 | 12.6 | 380 | |
| 120 | 10800 | 370 | 550 | 260 | 86 | 215 | 28 | 10 | 3.6 | 2.6 | 2.5 | 22 | 650 | |
| 150 | 21300 | 300 | 460 | 320 | 108 | 260 | 32 | 12 | 3.6 | 3.6 | 2.5 | 42 | 1000 | |
| 200 | 35600 | 230 | 420 | 420 | 138 | 350 | 45 | 16 | 7.6 | 3.6 | 3 | 93 | 2000 | |
