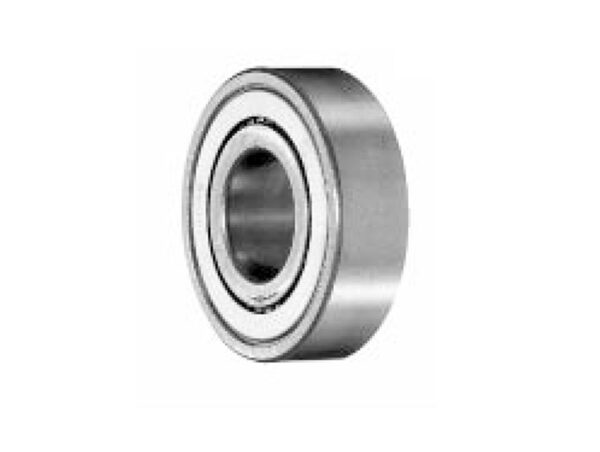

BB Cam Clutch
- The BB series cam clutch is designed for press-fit installation.
- BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race. Keyways, exceptsize 25 are manutactured to DIN 6885.3, BB40-1K-K and BB40-2GD 1K-K are manufactured to DIN 6885.1.
- BB-2K-K series has a keyway on both the inner and outer race, “-K” means keysshipped together with cam clutch.
- The clutches need correct interference dimensions at the shaft and housing for maximum performance. The BB, BB-1K, and BB-2K clutches come with bearing support and grease. They keep out dust particles of 0.25 mm and larger. The BB-2GD and BB-2GD-1K clutches are 5 mm wider than the standard BB series. They use special lip seals to block all dust.
- The arrow on the inner race shows the direction of inner race engaging.
- To install the clutch, use a press tool of the appropriate diameter to apply even pressure over the entire face of the inner and outer race.
- Do not hammer or apply other shock to the clutch.
- Make sure the housing has enough strength to withstand the pressure required for the press fitting installation of the clutch.
- Operating temperature range: -30° C to +100° C.

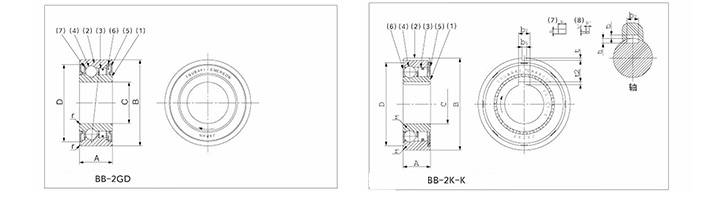

TYPE |
Torque Capacity | Max Overrunning | Drag Torque (Nm) | A | B | C | D | r | Weight (g) | Bearing Load | ||||||
| Inner Race | Outer Race | BB BB-1K-K BB-2K-K |
BB-2GD BB-2GD 1K-K |
BB BB-1K-K BB-2K-K |
BB-2GD BB-2GD 1K-K |
BB BB-1K-K BB-2K-K |
BB-2GD BB-2GD 1K-K |
BB BB-1K-K BB-2K-K |
BB-2GD BB-2GD 1K-K |
CN | CON | |||||
| N. m | ||||||||||||||||
| BB15 | 29 | 3600 | 2000 | 0.01 | 0.04 | 11 | 16 | 35 | 15 | 32.6 | 32.45 | 0.6 | 50 | 70 | 5950 | 3230 |
| BB17 | 43 | 3500 | 1900 | 0.01 | 0.05 | 12 | 17 | 40 | 17 | 36.1 | 36.45 | 0.6 | 80 | 100 | 7000 | 3700 |
| BB20 | 61 | 3000 | 1600 | 0.014 | 0.055 | 14 | 19 | 47 | 20 | 41.7 | 42.35 | 1 | 120 | 150 | 8500 | 4900 |
| BB25 | 78 | 2500 | 1400 | 0.017 | 0.055 | 15 | 20 | 52 | 25 | 47.1 | 47.05 | 1 | 150 | 200 | 10700 | 6300 |
| BB30 | 140 | 2000 | 1100 | 0.03 | 0.058 | 16 | 21 | 62 | 30 | 56.6 | 55.6 | 1 | 230 | 280 | 11900 | 7900 |
| BB35 | 173 | 1800 | 1000 | 0.034 | 0.06 | 17 | 22 | 72 | 35 | 64 | 64.6 | 1.1 | 320 | 410 | 13500 | 9700 |
| BB40 | 260 | 1800 | 900 | 0.04 | 0.08 | 22 | 27 | 80 | 40 | 71 | 71.6 | 1.1 | 400 | 600 | 14500 | 11700 |
