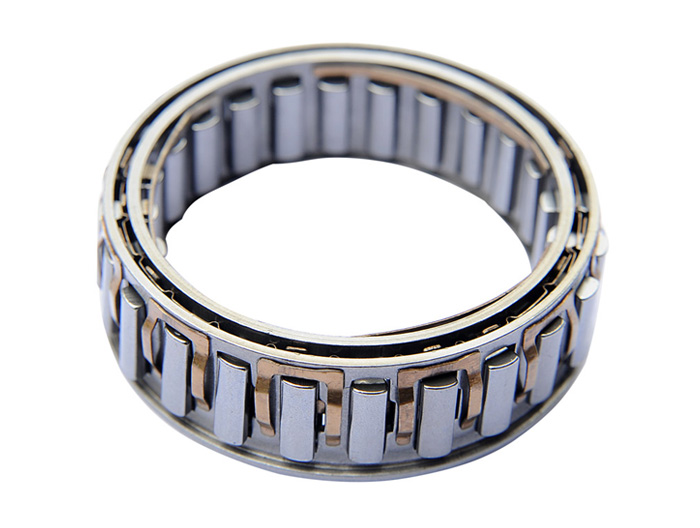

DC Sprag Freewheel Cage
Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.
Type DC is a sprag type freewheel cage without inner or outer races. This type must install it in a design with races, bearing support for axial and radial loads, lubrication and sealing.

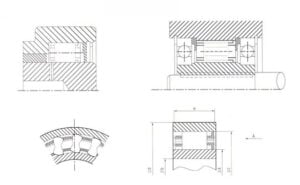

Do not exceed the sprag space tolerance.Inner and outer races must both have a minimum plain width”e”, without any recess, to ensure the freewheel functions correctly.
Type |
Torque | Size(mm) | Number of clips | Number of sprags | Weight | |||||
| TKN1) | a | c | sprag space | e | d | b | ||||
| (Nm) | ||||||||||
| DC2222G | 50 | 22.225 | 38.885 | 8.33±0.075 | 10 | 50 | 17 | – | 12 | 0.03 |
| DC2776 | 95 | 27.762 | 44.422 | 8.33±0.075 | 13.5 | 58 | 21 | – | 14 | 0.055 |
| DC3034 | 99 | 30.34 | 47 | 8.33±0.075 | 13.5 | 62 | 23 | – | 14 | 0.06 |
| DC3175(3G) | 127 | 31.75 | 48.41 | 8.33±0.075 | 13.5 | 63 | 24 | 3 | 16 | 0.06 |
| DC3809A | 220 | 38.092 | 54.752 | 8.33±0.075 | 16 | 71 | 29 | – | 18 | 0.085 |
| DC4127(3G) | 179 | 41.275 | 57.935 | 8.33±0.075 | 13.5 | 75 | 32 | 3 | 18 | 0.09 |
| DC4445A | 290 | 44.45 | 61.11 | 8.33±0.075 | 16 | 79 | 34 | – | 20 | 0.095 |
| DC4912(4C) | 245 | 49.721 | 66.381 | 8.33±0.075 | 13.5 | 86 | 38 | 4 | 22 | 0.1 |
| DC5476A | 420 | 54.766 | 71.425 | 8.33±0.075 | 16 | 92 | 42 | – | 24 | 0.11 |
| DC5476A(4G） | 420 | 54.765 | 71.425 | 8.33±0.075 | 16 | 92 | 42 | 4 | 24 | 0.13 |
| DC5476B(4G） | 615 | 54.765 | 71.425 | 8.33±0.075 | 21 | 92 | 42 | 4 | 24 | 0.18 |
| DC5476C（4G） | 792 | 54.765 | 71.425 | 8.33±0.075 | 25.4 | 92 | 42 | 4 | 24 | 0.2 |
| DC5776A | 483 | 57.76 | 74.42 | 8.33±0.075 | 16 | 98 | 44 | – | 26 | 0.11 |
| DC63348 | 645 | 63.34 | 80 | 8.33±0.075 | 21 | 104 | 50 | – | 26 | 0.175 |
| DC7221(5G） | 540 | 72.217 | 88.877 | 8.33±0.075 | 13.5 | 115 | 56 | 5 | 30 | 0.14 |
| DC7221B | 1023 | 72.217 | 88.877 | 8.33±0.075 | 21 | 115 | 56 | – | 30 | 0.185 |
| DC7221B(5G) | 1023 | 72.217 | 88.877 | 8.33±0.075 | 21 | 115 | 56 | 5 | 30 | 0.21 |
| DC7969C(5C) | 1630 | 79.698 | 96.358 | 8.33±0.075 | 25.4 | 124 | 61 | 5 | 34 | 0.28 |
| DC8334C | 1645 | 83.34 | 100 | 8.33±0.075 | 25.4 | 132 | 65 | – | 34 | 0.27 |
| DC8729A | 1000 | 87.29 | 103.96 | 8.33±0.075 | 16 | 134 | 67 | – | 34 | 0.165 |
| DC10323A(3C)* | 1290 | 103.231** | 119.891 | 8.33±0.075 | 16 | 155 | 80 | 3 | 40 | 0.205 |
| DC12334C* | 3840 | 123.340** | 140 | 8.33±0.075 | 25.4 | 184 | 96 | – | 50 | 0.4 |
| DC12388C(11C) | 3900 | 123.881 | 142.88 | 9.50±0.10 | 25.4 | 186 | 96 | 11 | 44 | 0.4 |
