CK-A Sprag Type Freewheel
The Type CK-A as a sprag-type freewheel without bearing support. Its nominal diameter matches a standard ball bearing dimension. Engineers must install additional bearings to support axial and radial loads. The factory delivers these units pre-lubricated with grease.
A standard arrangement places this type beside a bearing with the same housing diameter tolerance. Operators key the inner race and the outer race to the shaft and the housing hole.
Various industries extensively use this series in machinery systems for conveyors, hoisting, packing, printing, papermaking, weaving, chemical, medical, and food processing.
Type |

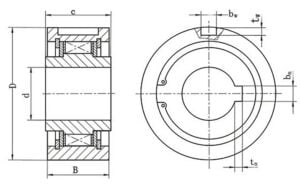

Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | BEARING GB/T276-1994 | Weight | ||||||
| (N·M) | (r/min) | D(H7) | B | bw*tw | d(H7) | C | bn*tn | (kg) | |||
| Outer race | Inner race | ||||||||||
CK-A1542 |
54 | 1750 | 500 | 42 | 23 | 3*1.8 | 15 | 24 | 3*1.4 | 6302 | 0.17 |
CK-A1747 |
75 | 1575 | 400 | 47 | 23 | 3*1.8 | 17 | 24 | 3*1.4 | 6303 | 0.21 |
CK-A2052 |
95 | 1400 | 400 | 52 | 23 | 3*1.8 | 20 | 24 | 3*1.4 | 6304 | 0.25 |
CK-A2652 |
145 | 1260 | 350 | 62 | 23 | 4*2.5 | 25 | 24 | 4*1.8 | 6305 | 0.35 |
CK-A3072 |
208 | 1050 | 300 | 72 | 23 | 5*3.0 | 30 | 24 | 5*2.3 | 6306 | 0.47 |
CK-A3580 |
340 | 815 | 200 | 80 | 28 | 8*4.0 | 35 | 30 | 6*2.8 | 6307 | 0.69 |
CK-A4090 |
462 | 700 | 200 | 90 | 28 | 8*4.0 | 40 | 30 | 6*2.8 | 6308 | 0.87 |
CK-A45100 |
783 | 560 | 200 | 100 | 28 | 8*4.0 | 45 | 30 | 6*2.8 | 6309 | 1.07 |
CK-A50110 |
850 | 525 | 180 | 110 | 28 | 10*5.0 | 50 | 30 | 8*3.3 | 6310 | 1.59 |
CK-A60130 |
1050 | 490 | 180 | 130 | 34 | 10*5.0 | 60 | 36 | 8*3.3 | 6312 | 2.16 |
CK-A65140 |
1224 | 490 | 180 | 140 | 34 | 10*5.0 | 65 | 36 | 10*3.3 | 6313 | 2.49 |
CK-A70150 |
1850 | 455 | 150 | 150 | 40 | 10*5.0 | 70 | 42 | 10*3.3 | 6314 | 3.36 |
CK-A75160 |
2140 | 455 | 150 | 160 | 40 | 12*5.0 | 75 | 42 | 12*3.3 | 6315 | 3.81 |
CK-A80170 |
2450 | 420 | 150 | 170 | 40 | 12*5.0 | 80 | 42 | 12*3.3 | 6316 | 4.29 |
CK-A1250 |
31.5 | 1750 | 400 | 50 | 22 | 3*1.8 | 12 | 24 | 3*1.4 | – | 0.24 |
CK-A1855 |
50 | 1575 | 350 | 55 | 22 | 4*2.5 | 18 | 24 | 4*1.8 | – | 0.28 |
CK-A2060 |
63 | 1600 | 350 | 60 | 22 | 6*3.5 | 20 | 24 | 6*2.8 | – | 0.33 |
CK-A2563 |
100 | 1260 | 350 | 63 | 24 | 6*3.5 | 25 | 26 | 6*2.8 | – | 0.37 |
CK-A2563T |
140 | 1260 | 350 | 63 | 30 | 6*3.5 | 25 | 32 | 8*3.3 | – | 0.68 |
CK-A2870 |
180 | 1050 | 300 | 70 | 30 | 8*4.0 | 28 | 32 | 8*3.3 | – | 1 |
CK-A3080T |
340 | 875 | 200 | 80 | 30 | 8*4.0 | 30 | 32 | 8*3.3 | – | 0.75 |
CK-A3585 |
400 | 815 | 200 | 85 | 30 | 8*4.0 | 35 | 32 | 8*3.3 | – | 1 |
CK-A35100 |
780 | 875 | 200 | 100 | 32 | 10*5 | 35 | 34 | 10*3.3 | – | 1.34 |
CK-A35140 |
1000 | 490 | 180 | 140 | 35 | 8*4.0 | 35 | 35 | 10*3.5 | – | 3.28 |
CK-A40100 |
780 | 560 | 200 | 100 | 34 | 10*5.0 | 40 | 34 | 10*3.3 | – | 1.2 |
CK-A40110 |
850 | 700 | 180 | 110 | 32 | 10*5.0 | 40 | 34 | 10*3.3 | – | 1.19 |
CK-A50125 |
1000 | 490 | 180 | 125 | 36 | 14*5.5 | 50 | 35 | 14*3.8 | – | 2.21 |
CK-A50130 |
1050 | 560 | 180 | 130 | 36 | 14*5.5 | 50 | 38 | 14*3.8 | – | 3.02 |
CK-A55160 |
2000 | 455 | 150 | 160 | 52 | 16*6.0 | 55 | 55 | 16*4.3 | – | 6.96 |
CK-A58130 |
1050 | 490 | 180 | 130 | 36 | 14*5.5 | 58 | 38 | 14*3.8 | – | 2.6 |
CK-A60180 |
2000 | 420 | 140 | 180 | 52 | 18*6 | 52 | 32 | 18*4.4 | – | 7.4 |
