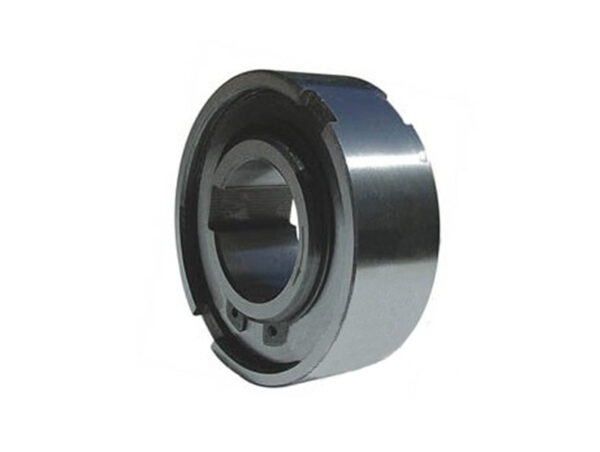

GC-B Roller Type Freewheel
Type GC-B is a roller type freewheel non-bearing supported, Nominal outer diameter is the same as a series 63 ball bearings. Bearings are required to support axial and radial loads.
Type GC-B is a roller type freewheel non-bearing supported, Nominal outer diameter is the same as a series 63 ball bearings. The clutch requires bearing support to withstand axial and radial loads. The units come pre-lubricated with grease.

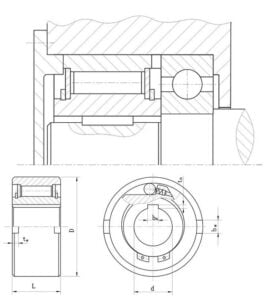

Standard arrangement is to install this type alongside a bearing with the came location tolerance. The inner race key to the shatt. Additional side notches in the outer race provide tor positive torque transmission.
This series extensive used in machinery system of conveyer, hosting, packing, printing, paper making, weaving, chemical, medical, food and so on.
Type |
Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Weight | |||||
| (N·M) | (r/min) | d(H7) | D(H7) | L | bw*tw | bn*tn | (kg) | ||
| Outer race | Inner race | ||||||||
| GC-B835 | 8.3 | 1650 | 2500 | 8 | 35 | 13 | 4*1.4 | 2*1.0 | 0.07 |
| GC-B1235 | 8.3 | 1650 | 2500 | 12 | 35 | 13 | 4*1.4 | 4*1.8 | 0.06 |
| GC-B1542 | 22 | 1200 | 1800 | 15 | 42 | 18 | 5*1.8 | 5*2.3 | 0.11 |
| GC-B1747 | 35 | 1150 | 1700 | 17 | 47 | 19 | 5*2.3 | 5*2..3 | 0.15 |
| GC-B2052 | 56 | 1050 | 1550 | 20 | 52 | 21 | 6*2.3 | 6*2.8 | 0.19 |
| GC-B2562 | 90 | 850 | 1300 | 25 | 62 | 24 | 8*2.8 | 8*3.3 | 0.38 |
| GC-B3072 | 184 | 700 | 1100 | 30 | 72 | 27 | 10*2.5 | 10*33 | 0.54 |
| GC-B3580 | 270 | 600 | 950 | 35 | 80 | 31 | 12*3.5 | 12*33 | 0.74 |
| GC-B4090 | 387 | 550 | 850 | 40 | 90 | 33 | 12*4.1 | 14*3.8 | 0.92 |
| GC-B45100 | 558 | 500 | 800 | 45 | 100 | 36 | 14*4.6 | 14*3.8 | 1.31 |
| GC-B50110 | 720 | 425 | 675 | 50 | 110 | 40 | 14*5.6 | 18*4.4 | 1.74 |
| GC-B60130 | 1315 | 375 | 525 | 60 | 130 | 46 | 18*5.6 | 20*4..9 | 2.77 |
| GC-B70150 | 1656 | 300 | 475 | 70 | 150 | 51 | 20*6.9 | 20*4..9 | 4.16 |
| GC-B80170 | 2096 | 275 | 425 | 80 | 170 | 58 | 20*7.5 | 22*5.4 | 6.09 |
| GC-B90190 | 3468 | 250 | 375 | 90 | 190 | 64 | 20*8.0 | 25*5.4 | 8.2 |
| GC-B100215 | 4640 | 225 | 340 | 100 | 215 | 73 | 24*8.5 | 28*6.4 | 12.6 |
| GC-B120260 | 8640 | 185 | 275 | 120 | 260 | 86 | 28*10 | 32*7.4 | 22 |
| GC-B150320 | 17040 | 150 | 230 | 150 | 320 | 108 | 32*12 | 36*8.4 | 42 |
| GC-B1237 | 8.5 | 1600 | 2500 | 12 | 37 | 20 | 6*3.3 | 4*1.8 | 0.07 |
| GC-B2060 | 90 | 850 | 1300 | 20 | 60 | 20 | 6*13 | 6*3 | 0.08 |
| GC-B2062 | 100 | 850 | 1300 | 20 | 62 | 36 | 8*15 | 6*19 | 0.59 |
| GC-B4393 | 400 | 550 | 850 | 43 | 93 | 36 | 14*4.5 | 10*3 | 1 |
| GC-B60170 | 2500 | 275 | 425 | 60 | 170 | 90 | 20*7.5 | 18*4.3 | 6.5 |
| GC-B65170 | 2500 | 275 | 425 | 65 | 170 | 90 | 20*7.5 | 18*4.3 | 6.3 |
