CKZ-B Sprag Type Freewheels
CKZ-B Sprag Type Freewheels are self-contained, sealed, and bearing-supported, using two ball bearings, and the factory delivers them lubricated with oil or grease according to the type.
Type CKZ-B is sprag type freewheels, self contained, sealed and bearing supported, using two ball bearings. Unit is delivered oil or grease lubricated according to the type.
The inner race is keyed to the shaft, the outer race has a positive h7 tolerance to give a press titin housing to hr and it is screwed to the bond.
This type extensive used in machinery of packing, traffic, metallurgy, mine and so on, to realize backstop or overrunning in dual drives.
Type |

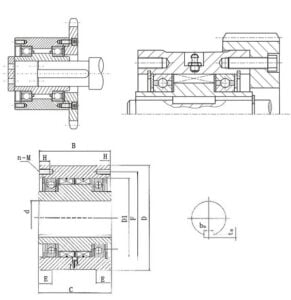

Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Weight | |||||||||||
| (N·M) | (r/min) | Outer race | Inner race | (kg) | |||||||||||
| Outer race | Inner race | D(H7) | D1(H7) | B | F | n-M | E | H | d(H7) | C | bn*tn | e | |||
CKZ-B 25110 |
404 | 700 | 300 | 110 | 80 | 68 | 95 | 6-M8 | 15 | 20 | 25 | 70 | 10*3.3 | 4.5 | 3.98 |
CKZ-B35130 |
825 | 560 | 250 | 130 | 90 | 85 | 100 | 6-M10 | 15 | 25 | 35 | 87 | 10*3.3 | 4.5 | 7.01 |
CKZ-B45150 |
1464 | 490 | 200 | 150 | 110 | 90 | 130 | 6-M10 | 20 | 25 | 45 | 92 | 14*3.8 | 4.5 | 9.69 |
CKZ-B50165 |
1830 | 420 | 150 | 165 | 120 | 92 | 145 | 6-M12 | 20 | 25 | 50 | 97 | 14*3.8 | 5 | 12.36 |
CKZ-B50180 |
2990 | 420 | 150 | 180 | 125 | 106 | 160 | 6-M12 | 20 | 25 | 50 | 108 | 16*3.8 | 5 | 16.51 |
CKZ-B60200 |
3494 | 350 | 120 | 200 | 150 | 115 | 180 | 6-M12 | 25 | 25 | 60 | 117 | 20*4.9 | 6 | 22.02 |
CKZ-B70240 |
4920 | 350 | 120 | 240 | 170 | 122 | 210 | 6-M14 | 25 | 30 | 70 | 124 | 22*5.4 | 6 | 34.65 |
CKZ-B75260 |
5760 | 280 | 100 | 260 | 200 | 130 | 230 | 6-M18 | 25 | 35 | 75 | 138 | 22*5.4 | 8 | 42.38 |
CKZ-B80300 |
7500 | 280 | 100 | 300 | 230 | 136 | 265 | 6-M18 | 25 | 35 | 80 | 138 | 22*5.4 | 8 | 57.17 |
CKZ-B25100 |
400 | 750 | 350 | 100 | 75 | 80 | 88 | 6-M18 | 10 | 16 | 25 | 82 | 8*3.3 | 4.5 | 2.62 |
CKZ-B28105 |
400 | 700 | 300 | 105 | 80 | 68 | 95 | 6-M8 | 15 | 16 | 28 | 70 | 10*3.3 | 4.5 | 2.75 |
CKZ-B3090 |
350 | 800 | 380 | 90 | 62 | 49 | 75 | 6-M6 | 10 | 15 | 30 | 50 | 8*2.0 | 4 | 4.86 |
CKZ-B3290 |
380 | 800 | 380 | 90 | 65 | 60 | 80 | 8-M6 | 10 | 16 | 32 | 60 | 10*3.7 | 4 | 4.32 |
CKZ-B30110 |
404 | 700 | 300 | 110 | 80 | 68 | 95 | 6-M8 | 15 | 16 | 30 | 70 | 10*3.3 | 4.5 | 3.91 |
CKZ-B32125 |
1021 | 560 | 250 | 125 | 95 | 90 | 110 | 8-M8 | 15 | 12 | 32 | 92 | 10*3.3 | 4.5 | 6.53 |
CKZ-B35115 |
800 | 700 | 300 | 115 | 72 | 78 | 95 | 6-∅11 | 15 | 35 | 78 | 10*3.3 | 4.5 | 4.63 | |
CKZ-B40125 |
800 | 600 | 300 | 125 | 95 | 76 | 110 | 6-M8 | 15 | 18 | 40 | 80 | 12*3.3 | 4.5 | 5.6 |
CKZ-B45190 |
2150 | 380 | 130 | 190 | 130 | 86 | 160 | 4-∅14 | 20 | 45 | 86 | 14*3.8 | 6 | 17.5 | |
CKZ-B55155 |
1735 | 490 | 200 | 155 | 125 | 100 | 140 | 8-M8 | 20 | 20 | 55 | 102 | 16*4.3 | 5 | 10.96 |
CKZ-B55175 |
1800 | 420 | 150 | 175 | 110 | 79 | 155 | 6-M10 | 20 | 15 | 55 | 87 | 16*4.3 | 5 | 14.92 |
CKZ-B60180 |
3100 | 420 | 150 | 180 | 140 | 124 | 158 | 8-M10 | 25 | 20 | 60 | 128 | 18*4.4 | 6 | 17.25 |
CKZ-B65180 |
3100 | 420 | 150 | 180 | 140 | 122 | 158 | 8-M10 | 25 | 20 | 65 | 124 | 18*4.4 | 6 | 16.68 |
CKZ-B80160 |
1830 | 420 | 150 | -160 | 130 | 100 | 145 | 6-M8 | 25 | 20 | 80 | 112 | 22*5.4 | 6 | 11.42 |
