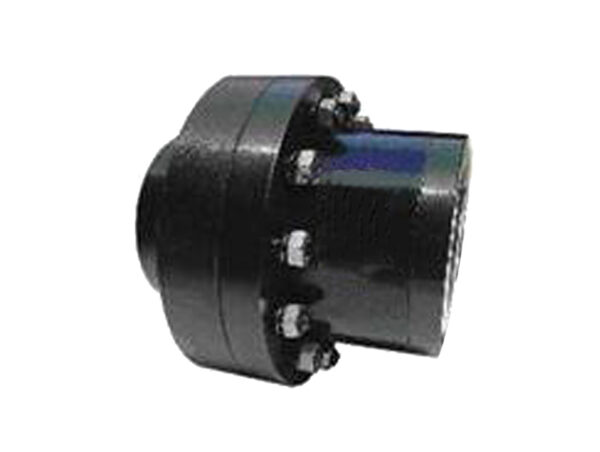

CKL-B Centrifugal Sprag Type Freewheel
Type CKL-B is a centrifugal sprag-type freewheel that the manufacturer designs as a self-contained, sealed, and bearing-supported unit. Engineers mainly use it in occasions requiring high overrunning speeds and low starting speeds. Operators must supply grease or oil during its operation. Mechanically, it shares the same characteristics and dimensions as the CKL-A model. Industries extensively use this combination as an overrunning clutch in packing, metallurgy, mining, and other mechanisms.
| Type | Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Weight | |||||||||
| (N·M) | (r/min) | (kg) | |||||||||||

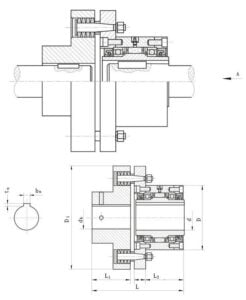

| Outer race | Inner race | d(H7) | Dk(H7) | D | D1 | L | L1 | L2 | B | bn*tn | |||
| CKL-B2590 | 230 | 800 | 2500 | 25 | 20~40 | 90 | 130 | 127.5 | 50 | 60 | 17.5 | 4*1.8 | 6.4 |
| CKL-B30100 | 400 | 780 | 2500 | 30 | 20～50 | 100 | 160 | 146 | 60 | 66 | 20 | 5*2.3 | 11 |
| CKL-B35110 | 580 | 740 | 2500 | 35 | 25～65 | 110 | 190 | 168 | 75 | 74 | 19 | 6*2.8 | 17 |
| CKL-B40125 | 820 | 720 | 2500 | 40 | 25～65 | 125 | 190 | 178 | 75 | 86 | 17 | 6*2.8 | 19 |
| CKL-B45130 | 840 | 660 | 2500 | 45 | 25～65 | 130 | 190 | 178 | 75 | 86 | 17 | 6*2.8 | 19 |
| CKL-B50150 | 1400 | 610 | 2000 | 50 | 30～75 | 150 | 225 | 207 | 90 | 92 | 25 | 14*3.8 | 31 |
| CKL-B55160 | 1600 | 600 | 2000 | 55 | 35～90 | 160 | 270 | 233.5 | 100 | 104 | 29.5 | 16*4.3 | 47 |
| CKL-B60170 | 2200 | 490 | 2000 | 60 | 35~90 | 170 | 270 | 244 | 94 | 114 | 30 | 18*4.4 | 49 |
| CKL-B70190 | 4500 | 480 | 2000 | 70 | 45~110 | 190 | 340 | 312.5 | 140 | 134 | 38.5 | 20*4.9 | 90 |
| CKL-B80210 | 6800 | 450 | 1500 | 80 | 55~125 | 210 | 380 | 340 | 160 | 142 | 35 | 22*5.4 | 107 |
| CKL-B90230 | 11000 | 420 | 1500 | 90 | 65~140 | 230 | 440 | 369 | 160 | 159 | 50 | 25*6.4 | 170 |
| CKL-B100270 | 16000 | 400 | 1500 | 100 | 76~160 | 270 | 500 | 422.5 | 200 | 182 | 40.5 | 28*6.4 | 230 |
