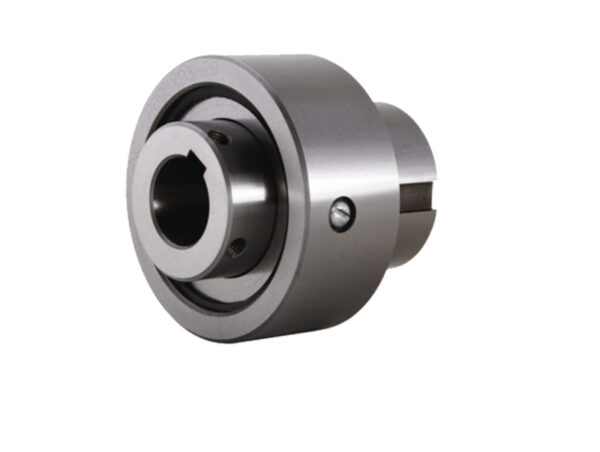

CK-L Bearing Supported Sprag Type Freewheel
The Type CK-L as a bearing-supported sprag-type freewheel. Engineers mainly use it in applications with lower speeds and limited space. Operators must install seals and apply grease when using it.
This series can connect with gears and sprockets, but it cannot withstand shock loads or function as a coupling. Customers must specify the inner race direction of rotation when viewed from the A side.
Various industries extensively use this series in mechanisms for packing, printing, weaving, and other applications to achieve overrunning, indexing, and backstopping.

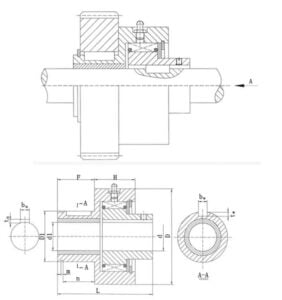

| Type | Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Weight | |||||||||||
| (N·M) | (r/min) | (kg) | |||||||||||||
| Outer race | Inner race | d(H7) | d1〔F8〕 | D | D1(H7) | F | H | L | m | n | bw*tw | bn*tn | |||
| CK-L1560 | 86 | 1260 | 765 | 15 | 15 | 60 | 26 | 25 | 32 | 70 | 1.3 | 21 | 4*2.5 | 4*1.5 | 0.58 |
| CK-L2072 | 225 | 1050 | 680 | 20 | 20 | 72 | 38 | 33 | 38 | 82 | 1.7 | 29 | 6*3.5 | 6*2.8 | 1.17 |
| CK-L2585 | 330 | 840 | 552.5 | 25 | 25 | 85 | 45 | 33 | 40 | 85 | 1.7 | 28 | 14*4.5 | 8*3.3 | 1.67 |
| CK-L3085 | 330 | 840 | 550 | 30 | 30 | 85 | 48 | 35 | 35 | 85 | 1.7 | 31 | 8*4 | 8*3.3 | 1.78 |
| CK-L3095 | 490 | 700 | 340 | 30 | 30 | 95 | 60 | 37 | 41 | 92 | 2.2 | 30 | 8*4 | 8*3.3 | 2.5 |
| CK-L40115 | 900 | 560 | 255 | 40 | 40 | 115 | 65 | 37 | 50 | 100 | 2.7 | 30 | 12*5 | 12*3.3 | 3.6 |
| CK-L45135 | 1240 | 490 | 255 | 45 | 45 | 135 | 75 | 41 | 54 | 112 | 2.7 | 35 | 14*5.5 | 14*3.8 | 6 |
