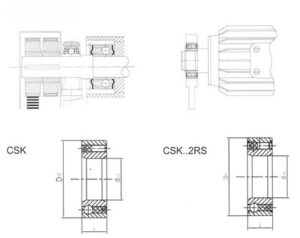

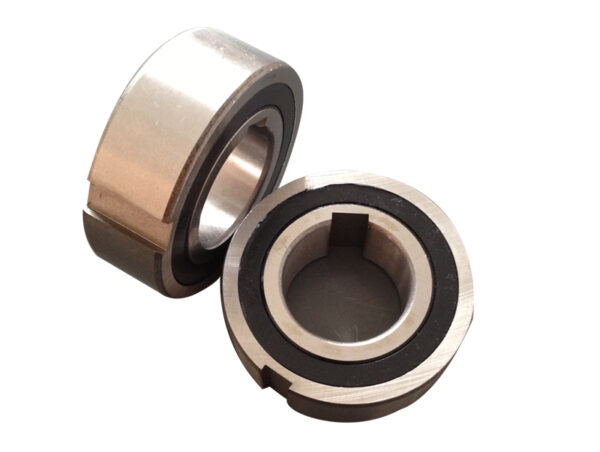

CSK Sprag Type Freewheel
Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40), It is bearing support ed, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional “nylos” type sealsis recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
The CSK sprag type freewheel integrates into a 62 series ball bearing (except sizes 8 and 40). It comes bearing-supported and pre-lubricated with grease. It also keeps out dust larger than 0.3 mm. The use of additional “nylos” type sealsis recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
All CSK versions come with “form chromed” sprags. This process increases several times the overnning life time. Torque transmission is ensured by apress fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with N6 tolerance.
Type |
Size | Bearing Series | Torque | Rotation Speed | Dimensions | Bearing loads | Weight | Drag Torque | ||
| dynamic | static | |||||||||
| d | TKN1) | nmax | D | L | C | C0 | (kg) | TR | ||
| (mm) | (Nm) | (min-1) | (mm) | (mm) | (kN) | (kN) | (Ncm) | |||
| CSK(KK) | 8* | – | 2 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 |
| 12 | 6201 | 7.4 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |
| 15 | 6202 | 13.5 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |
| 17 | 6203 | 24.5 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 40 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 68 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 110 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 140 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 260 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK..2RS | 8** | 2 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.8 | |
| 12 | – | 7.4 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | |
| 15 | 13.5 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | ||
| 17 | 24.5 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | ||
| 20 | 40 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | ||
| 25 | 68 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | ||
| 30 | 110 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | ||
| 35 | 140 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | ||
| 40*** | – | 260 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |
