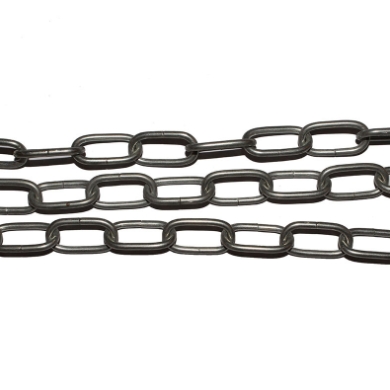

G43 NACM90 Link Chain
- Material: Low Carbon Steel or Alloy Steel
- Surface Treatment: Mainly Polishing, Electro-Galvanized, Hot-dip Galvanized
- Tension Grade: G43
- High Test Chain
G43 NACM90 Link Chain
G43 chains(G43 NACM90 Link Chain) have higher tensile strength than Proof Coil chains and typically have 50% higher working load limits. This grade is also known as a high test chain and is commonly used in trucking and construction applications. It has been 100% proof tested, making it ideal for applications requiring heavy-duty chains.
Our company also provides many conveyor chain types. If you need to know more product types and information, such as conveyor chain, you can contact us by email or communicate with our online staff. Looking forward to working with you.

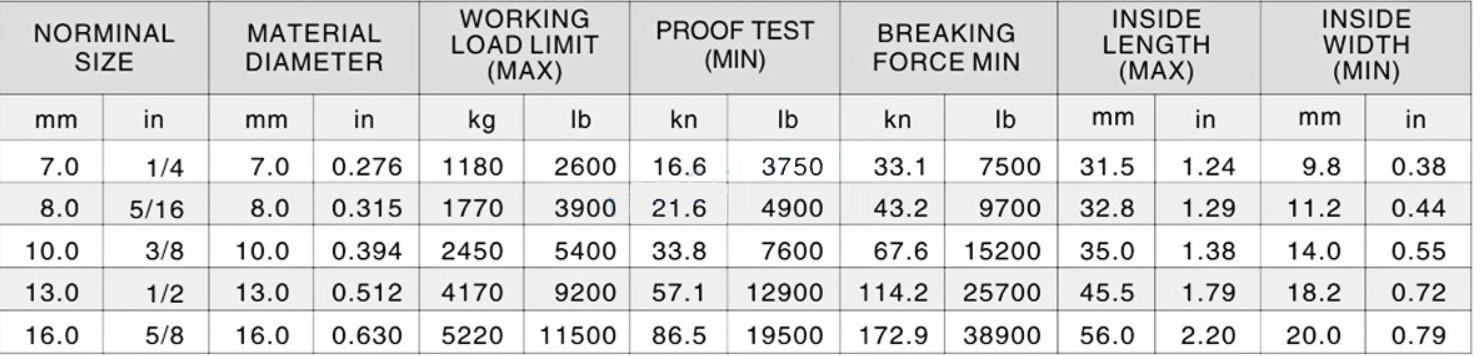

| NORMINAL
SIZE |
MATERIAL
DIAMETER |
WORKING LOAD LIMIT (MAX) | PROOF TEST (MIN) | BREAKING FORCE MIN | INSIDE
LENGTH (MAX) |
INSIDE
WIDTH (MIN) |
|||||||
| mm | in | mm | in | kg | lb | kn | lb | kn | lb | mm | in | mm | in |
| 7.0 | 1/4 | 7.0 | 0.276 | 1180 | 2600 | 16.6 | 3750 | 33.1 | 7500 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8.0 | 5/16 | 8.0 | 0.315 | 1770 | 3900 | 21.6 | 4900 | 43.2 | 9700 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10.0 | 3/8 | 10.0 | 0.394 | 2450 | 5400 | 33.8 | 7600 | 67.6 | 15200 | 35.0 | 1.38 | 14.0 | 0.55 |
| 13.0 | 1/2 | 13.0 | 0.512 | 4170 | 9200 | 57.1 | 12900 | 114.2 | 25700 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16.0 | 5/8 | 16.0 | 0.630 | 5220 | 11500 | 86.5 | 19500 | 172.9 | 38900 | 56.0 | 2.20 | 20.0 | 0.79 |
