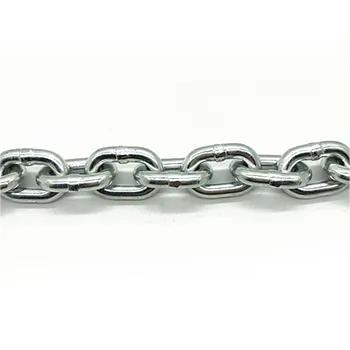

Ordinary Medium Link Chain
- Material: Low Carbon Steel
- Surface Treatment: Mainly Polishing, Electro-Galvanized, Hot-dip Galvanized
- Tension Grade: G25
- In Short/Mid/Long Link Series
Ordinary Medium Link Chain

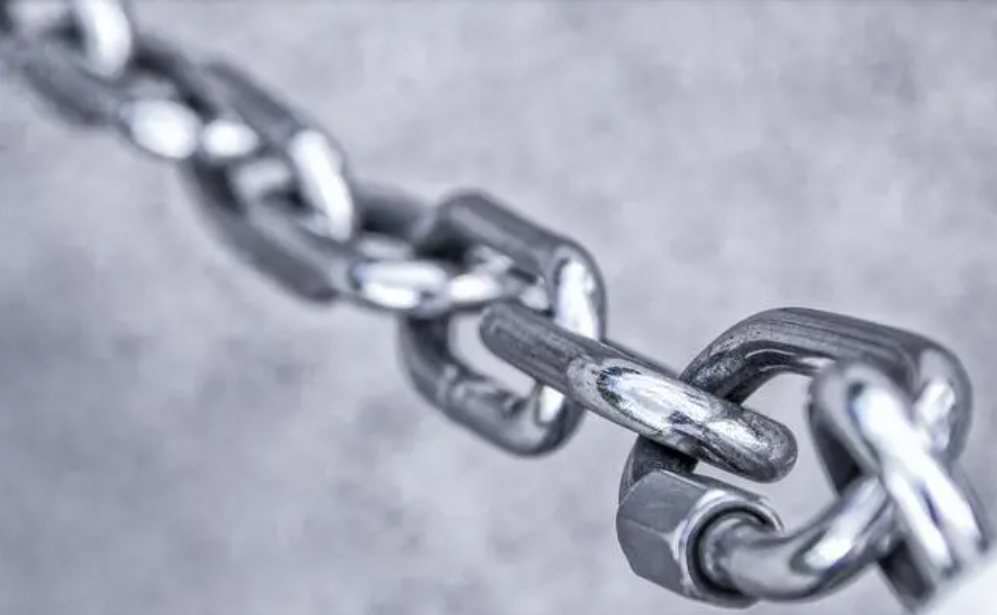

A typical long chain is a chain with multiple interconnect chains. The chain consists of a series of links connect retaining members 35. Each link has a pair of rollers at its ends that mate with a couple of pivots. The external link pivots on pivot 28, and the inner link pivots on auxiliary pivot 28. Auxiliary pivot pins are connectting to the inner links by T-section posts 31 protruding from frame 19.
Regular chains’s material: low-grade carbon steel and come in different link sizes.
- Applications in various industrial, marine, and agricultural applications.
- It is available in unmarked and tested varieties and is available in a variety of link diameters.
- It is available in different finishes, including yellow, blue, and galvanized.
A barbed chain is an ordinary long chain consisting of two side limb sections and a curved bridge. The two side limb sections meet at one end and cross at the other. The curved bridge section eliminates the need for welding and reduces production costs.
Each link is made from two separate side pieces connected by a U-shaped bridge section at their ends. The link ends at the point where the crossbar 60 projects in the opposite direction. Barbed chain’s application: agriculture and is called “barbed chain” because it has spikes on its edges that act as spikes as the chain spins behind the tractor.
Our company also provides many conveyor chain types. If you need to know more product types and information, such as conveyor chain, you can contact us by email or communicate with our online staff. Looking forward to working with you.

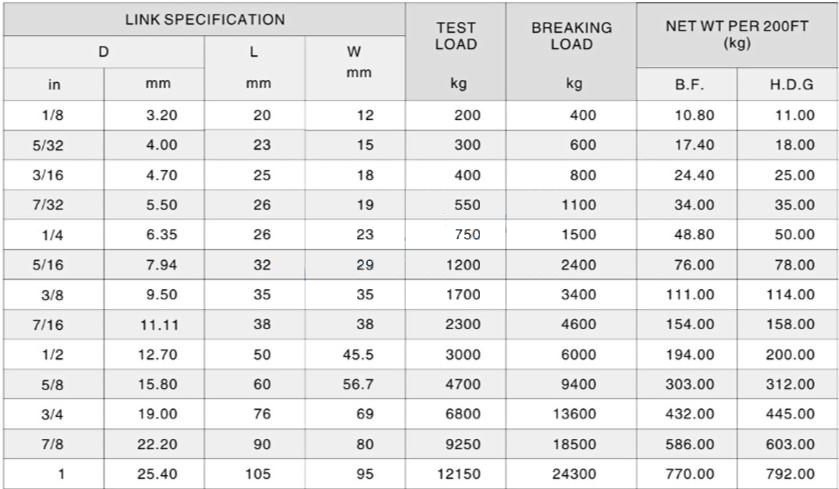

LINK SPECIFICATION |
TEST | BREAKING | NETWTPER200FT | ||||
| D | L | W | LOAD | LOAD | (kg) | ||
| in | mm | mm | mm | kg | kg | B.F. | H.D.G |
| 1/8 | 3.20 | 20 | 12 | 200 | 400 | 10.80 | 11.00 |
| 5/32 | 4.00 | 23 | 15 | 300 | 600 | 17.40 | 18.00 |
| 3/16 | 4.70 | 25 | 18 | 400 | 800 | 24.40 | 25.00 |
| 7/32 | 5.50 | 26 | 19 | 550 | 1100 | 34.00 | 35.00 |
| 1/4 | 6.35 | 26 | 23 | 750 | 1500 | 48.80 | 50.00 |
| 5/16 | 7.94 | 32 | 29 | 1200 | 2400 | 76.00 | 78.00 |
| 3/8 | 9.50 | 35 | 35 | 1700 | 3400 | 111.00 | 114.00 |
| 7/16 | 11.11 | 38 | 38 | 2300 | 4600 | 154.00 | 158.00 |
| 1/2 | 12.70 | 50 | 45.5 | 3000 | 6000 | 194.00 | 200.00 |
| 5/8 | 15.80 | 60 | 56.7 | 4700 | 9400 | 303.00 | 312.00 |
| 3/4 | 19.00 | 76 | 69 | 6800 | 13600 | 432.00 | 445.00 |
| 7/8 | 22.20 | 90 | 80 | 9250 | 18500 | 586.00 | 603.00 |
| 1 | 25.40 | 105 | 95 | 12150 | 24300 | 770.00 | 792.00 |
