GCS Roller Rype Plectrum Overrunning Clutch
Type “GCS” is a roller type plectrum over-running clutch, there is bearing supported.This clutch connects with gears, sprockets, or pulleys to transfer power.

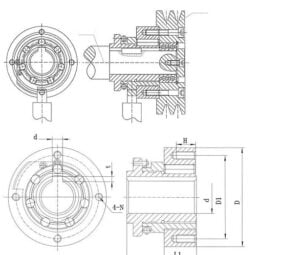

The GCS Series is a roller type plectrum overrunning clutch. It uses plain bearings inside. During work, the driving side turns the driven side together (as shown in the installation drawing). When the inner ring needs to stop, the pawl mechanism controls it. When the block stops the pawl, the driven side stops right away, and the driving side keeps running.
This clutch connects with gears, sprockets, or pulleys to transfer power.
The GCS Series mainly works in feeding devices, stepping mechanisms, packing machines, nail making machines, and binding machines.
| Type | Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Weight | ||||||||
| (N·M) | (r/min) | (kg) | ||||||||||
| Outer race | Inner race | d(H7) | D1 | D | L | L1 | N | b*t | H | |||
| GCS2576 | 49 | 595 | 1000 | 25 | 64 | 76 | 54 | 24.5 | M6 | 8*3.3 | 15 | 1.1 |
| GCS3086 | 60 | 525 | 850 | 30 | 74 | 86 | 55 | 26 | M8 | 10*3.3 | 16 | 1.5 |
| GCS3596 | 100 | 410 | 720 | 35 | 84 | 96 | 68 | 30 | M8 | 10*3.3 | 16 | 3.07 |
| GCS40110 | 160 | 386 | 684 | 40 | 95 | 110 | 80 | 38 | M10 | 12*3.3 | 18 | 4.68 |
| GCS45125 | 246 | 346 | 630 | 45 | 112 | 125 | 85 | 42 | M10 | 12*3.3 | 18 | 5.65 |
| GCS50140 | 380 | 335 | 605 | 50 | 120 | 140 | 96 | 50 | M12 | 14*3.8 | 20 | 7.63 |
| GCS55160 | 613 | 290 | 505 | 55 | 140 | 160 | 108 | 56 | M14 | 14*3.8 | 20 | 10.5 |
| GCS60180 | 1175 | 250 | 423 | 60 | 156 | 180 | 120 | 65 | GCS14 | 16*4.3 | 20 | 17.89 |
| GCS65200 | 1510 | 223 | 360 | 65 | 164 | 200 | 130 | 65 | M16 | 16*4.3 | 20 | 20.15 |
| GCS70225 | 2819 | 168 | 266 | 70 | 180 | 225 | 135 | 70 | M18 | 18*4.4 | 20 | 26.52 |
