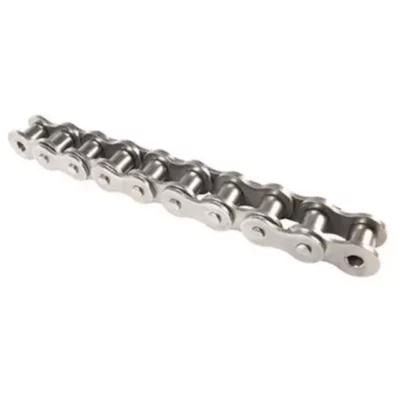

Short pitch precision Stainless Steel Roller Chains (B series)
Our stainless steel roller chain is constructed using strict ANSI standards. Our roller chain utilizes a solid roller design to ensure a long life for the chain. Also, our chain is heat-treated and pre-stressed. Our stainless is constructed with 304 stainless steel. Products are made of high-quality alloy steel production. The plates are punched and squeezed bores by precision technology. The pin, bush, and roller are machined by high-efficiency automatic equipment and automatic grinding equipment, then through heat treatment of carburization, carbon, and nitrogen protection mesh belt furnace, surface blasting process, etc. Assembled precision by Internal hole position, spin riveted by pressure to ensure the performance of the entire chain.
Short pitch precision Stainless Steel Roller Chains (B series)
Our stainless steel roller chain is according to using strict ANSI standards. Our roller chain utilizes a solid roller design to ensure a long life for the chain. Also, our chain with heat-treated and pre-stressed. Our stainless is 304 stainless steel. High-quality alloy steel production. Punched and squeezed bores by precision technology. We use high-efficiency automatic equipment and automatic grinding equipment to produce the pin, bush, and roller. Then through heat treatment of carburization, carbon, and nitrogen protection mesh belt furnace, surface blasting process, etc. Assembled precision by Internal hole position, spin riveted by pressure to ensure the performance of the entire chain.
Power-trans stainless steel chain is made of advanced materials. They perform very well in acidic and alkaline environments, where direct contact with food and chains will be exposed to water, and at extremely high or low temperatures (-40 ° C to +400 ° C) where corrosion resistance is required.
stainless steel chain Stainless Steel Chain Roller Chain B Series When chemical resistance is critical, Reynolds stainless steel chains should be selected. It is manufactured from FDA-approved materials and prelubricated with USDA H1 approved lubricants.
–All parts are made of austenitic rust-proof steel
–All components are surface finish machined to eliminate stress rise factors
–Lubrication to improve wear performance
–Tensile strength is about 65% of standard carbon steel chain1. Standards: ISO /DIN /ANSI
2.Model: 25-160,04B-32B Simplex,Duplex,Triplex,Heavy-duty
3.Materials:304,316
4. Tensile strength:15-20% higher than the standard
5.Certificate of Quality: ISO 9001:2008,SGS,BV
6. Good lubrication with excellent grease.
7. Surface Treatment: Shot peening, Zinc-plated, Nickel-plated, Dacromet-plated
8. Application: Machine manufacturing, food machinery, etc. Also are suitable for high and low-temperature conditions.

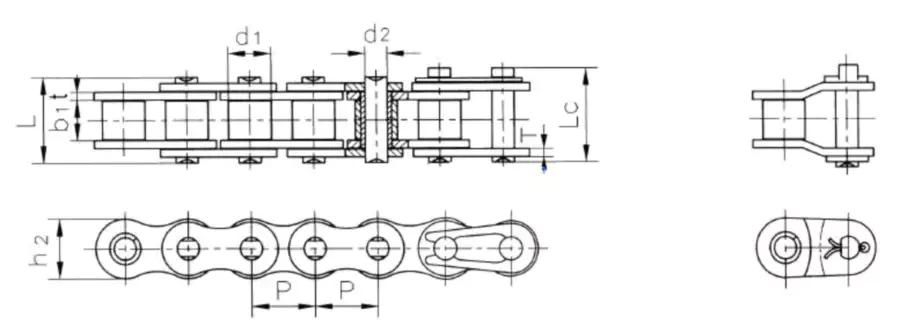

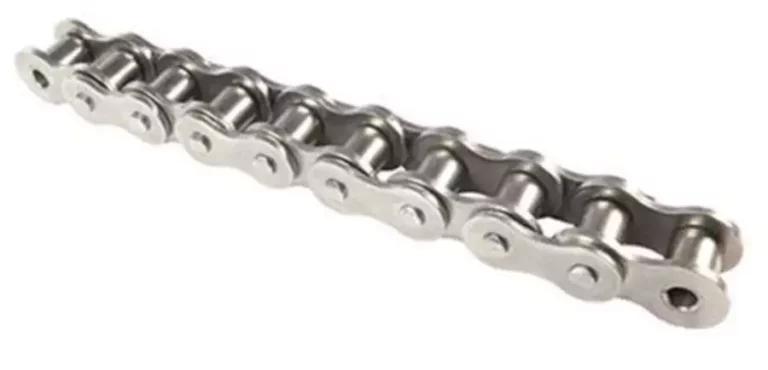

Simplex Stainless Steel Roller Chains
 |
 |
| DIN ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Q(min) | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
| 05BSS-1 | 8 | 5 | 3 | 2.31 | 8.2 | 8.9 | 7.1 | 0.8 | 3 | 3.54 | 0.2 |
| *06BSS-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.2 | 1.3 | 5.4 | 6.24 | 0.41 |
| 08BSS-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 10.8 | 11.64 | 0.69 |
| 10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.7 | 13.44 | 16.5 | 0.93 |
| 12BSS-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24.2 | 16 | 1.85 | 17.4 | 19.3 | 1.15 |
| 16BSS-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 37.4 | 21 | 4.15/3.1 | 3.6 | 43.68 | 2.71 |
| 20BSS-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 1.5/3.5 | 57 | 64.02 | 3.7 |
| 24BSS-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 96 | 106.8 | 7.1 |
| 28BSS-1 | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 120 | 133.2 | 8.5 |
| 32BSS-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 7.0/6.0 | 150 | 166.5 | 10.25 |
| 40BSS-1 | 63.5 | 39.37 | 38.1 | 22.89 | 82.2 | 89.2 | 52.96 | 8.5/8.0 | 213 | 236.4 | 16.35 |
| 48BSS-1 | 76.2 | 48.26 | 45.72 | 29.24 | 99.1 | 107 | 63.8 | 44905 | 336 | 372.96 | 25 |

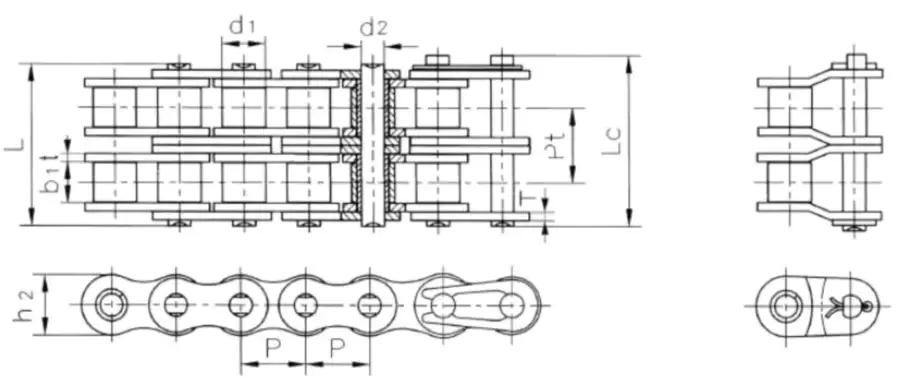

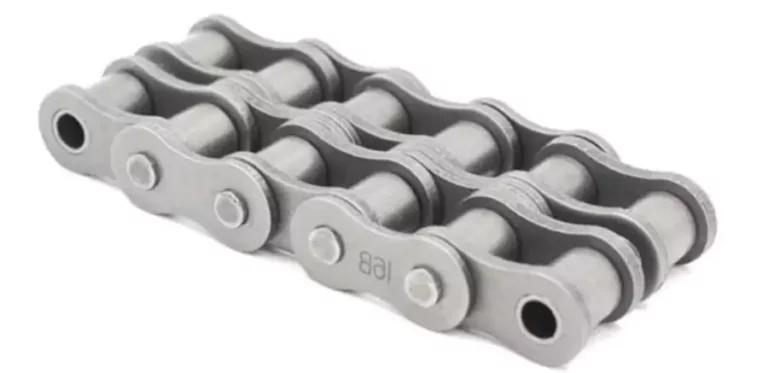

Duplex Stainless Steel Roller Chains
 |
 |
| DIN ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Pt | Q(min) | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
| 05BSS-2 | 8 | 5 | 3 | 2.31 | 13.9 | 14.5 | 7.1 | 0.8 | 5.64 | 4.68 | 6.1 | 0.33 |
| *06BSS-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.4 | 24.4 | 8.2 | 1.3 | 10.24 | 10.14 | 11.22 | 0.77 |
| 08BSS-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.6 | 13.92 | 19.2 | 23.22 | 1.34 |
| 10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.7 | 1.7 | 16.59 | 26.7 | 33.72 | 1.84 |
| 12BSS-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42 | 43.6 | 16 | 1.85 | 19.46 | 34.68 | 39.66 | 2.31 |
| 16BSS-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68 | 69.3 | 21 | 4.15/3.1 | 31.88 | 63.6 | 79.8 | 5.42 |
| 20BSS-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.4 | 4.5/3.5 | 36.45 | 102 | 126.72 | 7.2 |
| 24BSS-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.7 | 106.2 | 33.2 | 6.0/4.8 | 48.36 | 168 | 191.52 | 13.4 |
| 28BSS-2 | 44.45 | 27.94 | 30.99 | 15.9 | 124.6 | 129.1 | 36.7 | 7.5/6.0 | 59.56 | 216 | 244.08 | 16.6 |
| 32BSS-2 | 50.8 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 42 | 7.0/6.0 | 58.55 | 270 | 305.1 | 21 |
| 40BSS-2 | 63.5 | 39.37 | 38.1 | 22.89 | 154.5 | 161.5 | 52.96 | 8.5/8.0 | 72.29 | 378 | 427.14 | 32 |
| 48BSS-2 | 76.2 | 48.26 | 45.72 | 29.24 | 190.4 | 198.2 | 63.8 | 44905 | 91.21 | 600 | 678 | 50 |

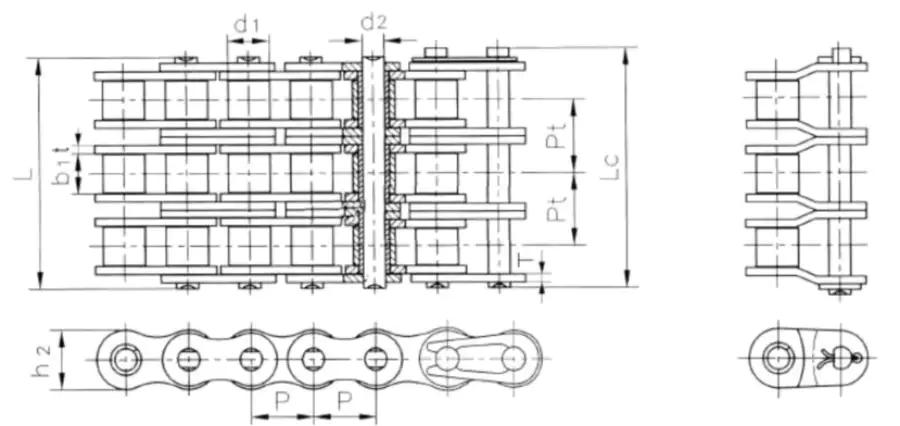

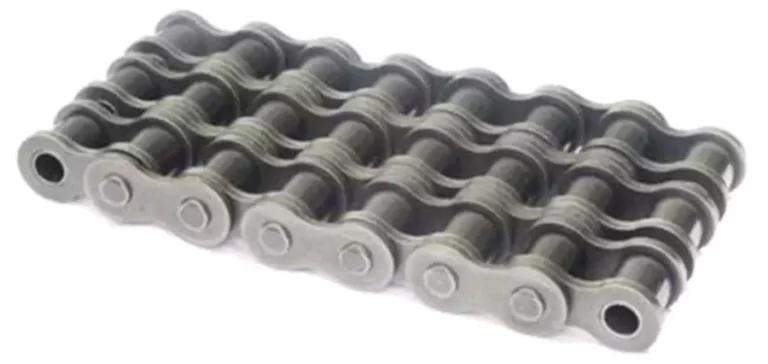

Triplex Stainless Steel Roller Chains
 |
 |
| DIN ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Pt | Q(min) | Q0 | Q0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
| 05BSS-3 | 8 | 5 | 3 | 2.31 | 19.5 | 20.2 | 7.1 | 0.8 | 5.64 | 6.66 | 8.28 | 0.48 |
| *06BSS-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.5 | 34.6 | 8.2 | 1.3 | 10.24 | 14.94 | 18.06 | 1.16 |
| 08BSS-3 | 12.7 | 8.51 | 7.75 | 4.45 | 45.1 | 46.1 | 11.8 | 1.6 | 13.92 | 28.5 | 34.68 | 2.03 |
| 10BSS-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 54.1 | 14.7 | 1.7 | 16.59 | 40.02 | 50.7 | 2.77 |
| 12BSS-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 63.1 | 16 | 1.85 | 19.46 | 52.02 | 61.08 | 3.46 |
| 16BSS-3 | 25.4 | 15.88 | 17.02 | 8.28 | 99.8 | 101.2 | 21 | 4.15/3.1 | 31.88 | 96 | 122.22 | 8.13 |
| 20BSS-3 | 31.75 | 16.05 | 19.56 | 10.19 | 114.2 | 117.9 | 26.4 | 4.5/3.5 | 36.45 | 150 | 174 | 10.82 |
| 24BSS-3 | 38.1 | 25.4 | 25.4 | 14.63 | 150.1 | 154.6 | 33.2 | 6.0/4.8 | 48.36 | 255 | 295.8 | 20.1 |
| 28BSS-3 | 44.45 | 17.94 | 30.99 | 15.9 | 184.2 | 188.7 | 36.7 | 7.5/6.0 | 59.56 | 318 | 365.7 | 24.92 |
| 32BSS-3 | 50.8 | 29.21 | 30.99 | 17.81 | 183.2 | 188.2 | 42 | 7.0/6.0 | 58.55 | 402 | 462.3 | 31.56 |
| 40BSS-3 | 63.5 | 39.37 | 38.1 | 22.89 | 226.8 | 233.8 | 52.96 | 8.5/8.0 | 72.29 | 570 | 655.5 | 48.1 |
| 48BSS-3 | 76.2 | 48.26 | 45.72 | 29.24 | 281.6 | 189.4 | 63.8 | 44905 | 91.21 | 900 | 1026 | 75 |
Short pitch precision Stainless Steel Roller Chains (B series)
