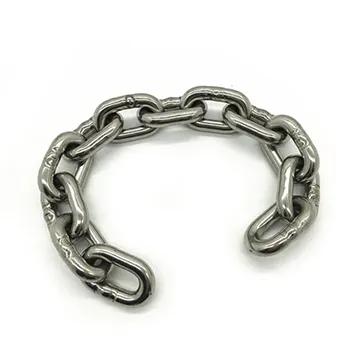

Sus304 Medium Link Chain
* Material: Stainless Steel SS304, SS316, SS316L
* Surface Treatment: Polishing
* Tension Grade: G30/G50
* Size Customization is Available
* In Short/Mid/Long Link Series
* Advantage: Rust-Proof and Corrosion Protection
Sus304 Medium Link Chain
This chain(Sus304 Medium Link Chain) is used in many applications, including construction projects and shade sails. However, chains are not recommended for lifting applications. For this purpose, rated lifting chains are available in stainless steel hardware.
In addition to corrosion resistance, Sus304 also has high fracture toughness. This means it can withstand a lot of pressure. In addition, it is highly resistant to intergranular corrosion. Unlike austenitic steels, 304 stainless steel does not become brittle even at high temperatures.
Our company also provides many conveyor chain types. If you need to know more product types and information, such as conveyor chain, you can contact us by email or communicate with our online staff. Looking forward to working with you.

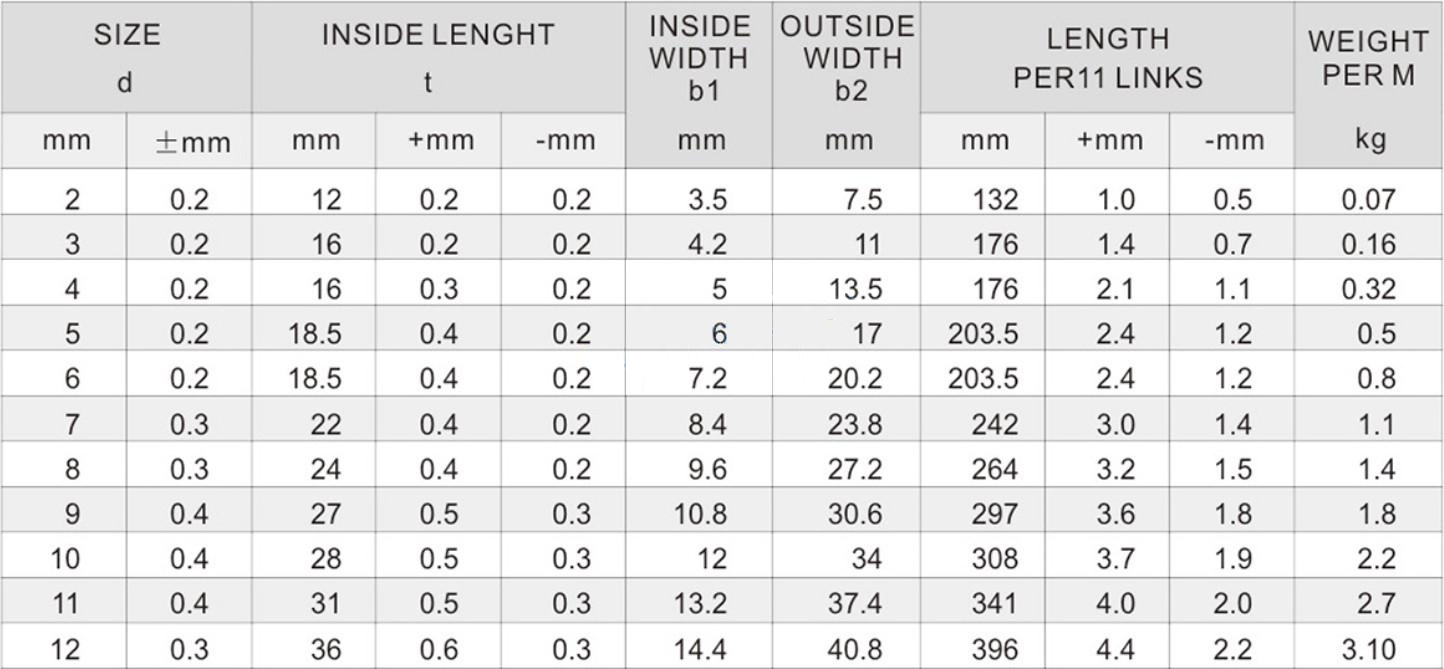

SIZEd |
INSIDE LENGHT t | INSIDE
WIDTH b1 |
OUTSIDE
WIDTH b2 |
LENGTH PER11 LINKS | WEIGHT
PERM |
|||||
| –
mm |
士 mm | mm | +mm | •mm | mm | mm | mm | +mm | •mm | kg |
| 2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1.0 | 0.5 | 0.07 |
| 3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 0.16 |
| 4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 13.5 | 176 | 2.1 | 1.1 | 0.32 |
| 5 | 0.2 | 18.5 | 0.4 | 0.2 | 6 | 17 | 203.5 | 2.4 | 1.2 | 0.5 |
| 6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 0.8 |
| 7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3.0 | 1.4 | 1.1 |
| 8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 1.4 |
| 9 | 0.4 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 1.8 |
| 10 | 0.4 | 28 | 0.5 | 0.3 | 12 | 34 | 308 | 3.7 | 1.9 | 2.2 |
| 11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4.0 | 2.0 | 2.7 |
| 12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 3.10 |

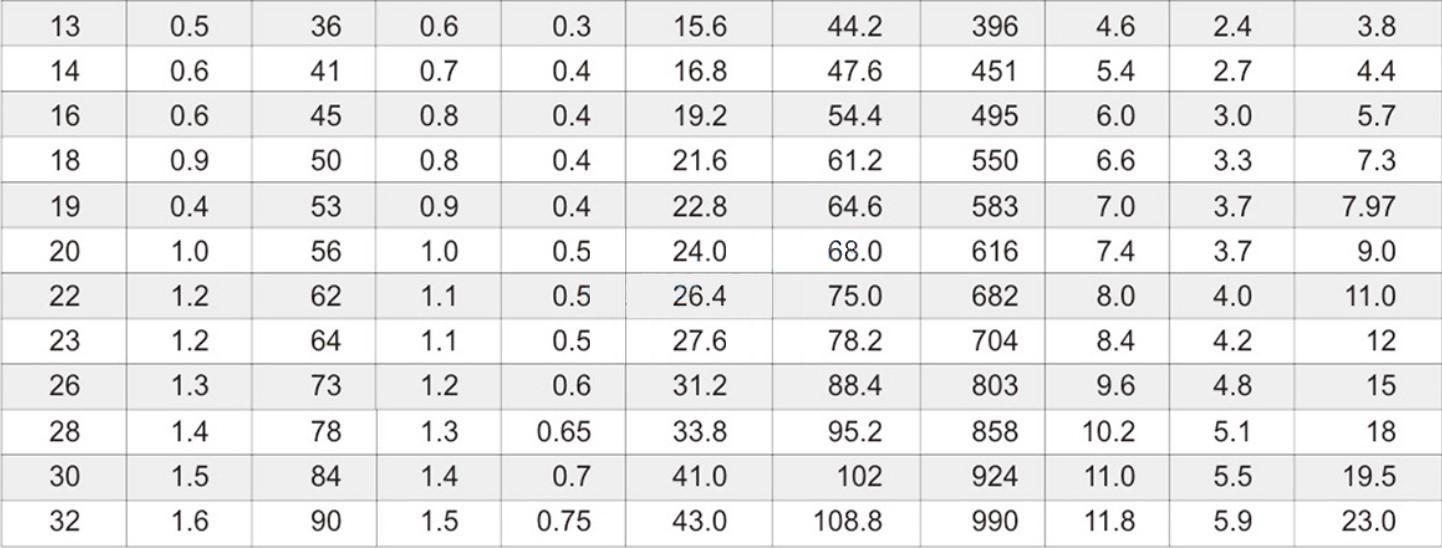

13 |
0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 | 3.8 |
| 14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 | 4.4 |
| 16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6.0 | 3.0 I 5.7 | |
| 18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 7.3 |
| 19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7.0 | 3.7 | 7.97 |
| 20 | 1.0 | 56 | 1.0 | 0.5 | 24.0 | 68.0 | 616 | 7.4 | 3.7 | 9.0 |
| 22 | 1.2 | 62 | 1.1 | 0.5 | 26.4 | 75.0 | 682 | 8.0 | 4.0 | 11.0 |
| 23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 12 |
| 26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 15 |
| 28 | 1.4 | 78 | 1.3 | 0.65 | 33.8 | 95.2 | 858 | 10.2 | 5.1 | 18 |
| 30 | 1.5 | 84 | 1.4 | 0.7 | 41.0 | 102 | 924 | 11.0 | 5.5 | 19.5 |
| 32 | 1.6 | 90 | 1.5 | 0.75 | 43.0 | 108.8 | 990 | 11.8 | 5.9 | 23.0 |

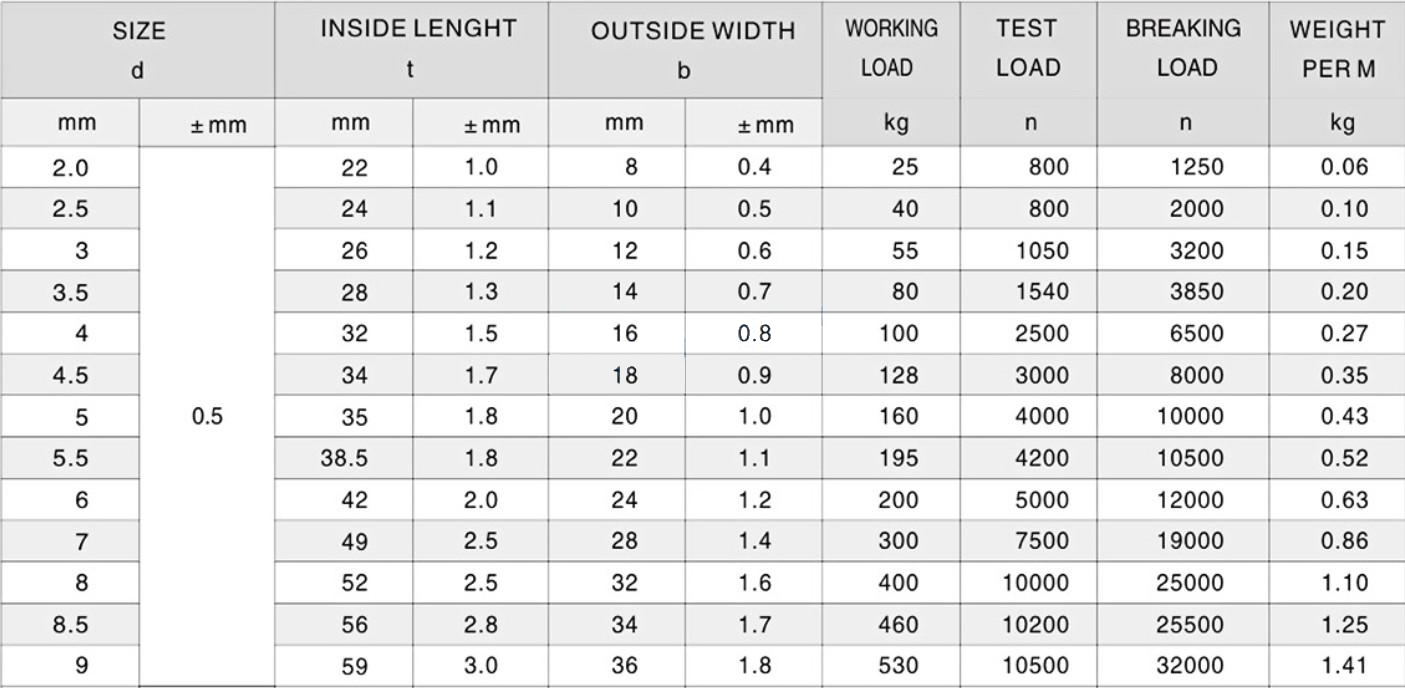

SIZE |
INSIDE LENGHT | OUTSIDE WIDTH | WORKING | TEST | BREAKING | WEIGHT | |||
| d | t | t | ) | LOAD | LOAD | LOAD | PERM | ||
| mm | ±mm | mm | ±mm | mm | ±mm | —kg | n | n | kg |
| 2.0 | 22 | 1.0 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 | |
| 2.5 | 24 | 1.1 | 10 | 0.5 | 40 | 800 | 2000 | 0.10 | |
| 3 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 | |
| 3.5 | 28 | 1.3 | 14 | 0.7 | 80 | 1540 | 3850 | 0.20 | |
| 4 | 32 | 1.5 | 16 | 0.8 | 100 | 2500 | 6500 | 0.27 | |
| 4.5 | 34 | 1.7 | 18 | 0.9 | 128 | 3000 | 8000 | 0.35 | |
| 5 | 0.5 | 35 | 1-8 | 20 | 1.0 | 160 | 4000 | 10000 | 0.43 |
| 5.5 | 38.5 | 1.8 | 22 | 1.1 | 195 | 4200 | 10500 | 0.52 | |
| 6 | 42 | 2.0 | 24 | 1.2 | 200 | 5000 | 12000 | 0.63 | |
| 7 | 49 | 2.5 | 28 | 1.4 | 300 | 7500 | 19000 | 0.86 | |
| 8 | 52 | 2.5 | 32 | 1.6 | 400 | 10000 | 25000 | 1.10 | |
| 8.5 | 56 | 2.8 | 34 | 1.7 | 460 | 10200 | 25500 | 1.25 | |
| 9 | 59 | 3.0 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |

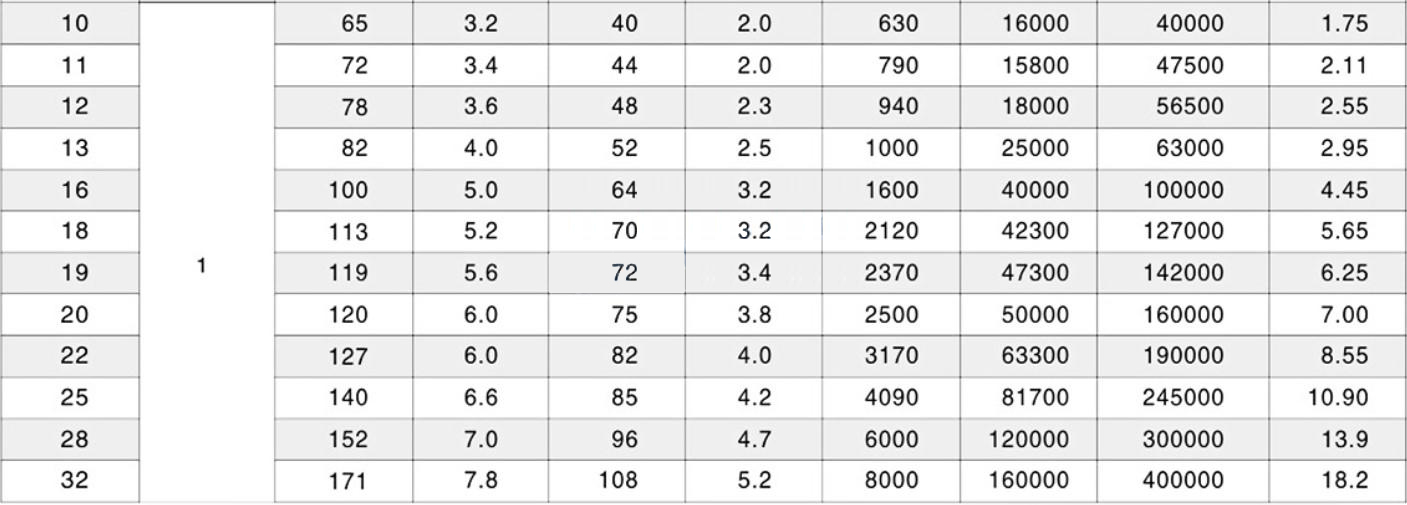

10 |
65 | 3.2 | 40 | 2.0 | 630 | 16000 | 40000 | 1.75 | |
| 11 | 72 | 3.4 | 44 | 2.0 | 790 | 15800 | 47500 | 2.11 | |
| 12 | 78 | 3.6 | 48 | 2.3 | 940 | 18000 | 56500 | 2.55 | |
| 13 | 82 | 4.0 | 52 | 2.5 | 1000 | 25000 | 63000 | 2.95 | |
| 16 | 100 | 5.0 | 64 | 3.2 | 1600 | 40000 | 100000 | 4.45 | |
| 18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
| 19 | 1 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 |
| 20 | 120 | 6.0 | 75 | 3.8 | 2500 | 50000 | 160000 | 7.00 | |
| 22 | 127 | 6.0 | 82 | 4.0 | 3170 | 63300 | 190000 | 8.55 | |
| 25 | 140 | 6.6 | 85 | 4.2 | 4090 | 81700 | 245000 | 10.90 | |
| 28 | 152 | 7.0 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9 | |
| 32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2 |
 |
 |
 |
 |
We offer a full line of high quality bulk chains that meet and exceed NACM, ASTM and OSHA, stainless steel and galvanized specifications.
- Ring chains, also known as torus chains, are widely used in industries in different countries.
- We can also supply different grades of chains, such as G30 chain, G43 chain, G70 chain.
- Stainless steel chain ring, compared with alloy steel or carbon steel chain ring, the material is 304 or 316, suitable for corrosive environment such as food and chemicals, and also suitable for high and low temperature conditions.
- We offer stainless steel chains in standard short, medium and long chains.
