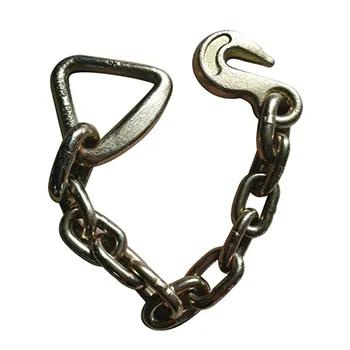

G70 Australian Standard Link Chain
- Material: Alloy Steel
- Surface Treatment: Mainly Electro-Galvanized
- Tension Grade: G70
- Safety factor: Min 4
- Transport Chain
G70 Australian Standard Link Chain
A high-quality chain(G70 Australian Standard Link Chain) can be purchased with a test certificate to ensure its build quality. Such certificates are especially useful when selecting anchor systems that must meet specific classification requirements. The test certificate should be checked carefully to ensure it is accurate and has the correct information.

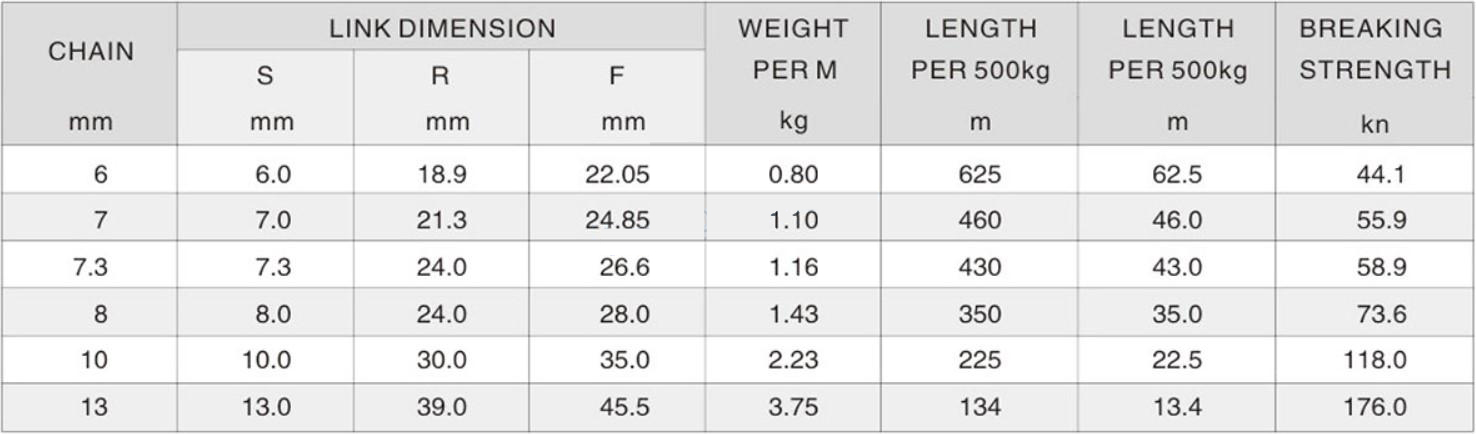

| CHAIN
mm |
LINK DIMENSION | WEIGHT
PER M kg |
LENGTH PER 500kg
m |
LENGTH PER 500kg
m |
BREAKING
STRENGTH kn |
||
| s
mm |
R
mm |
F
mm |
|||||
| 6 | 6.0 | 18.9 | 22.05 | 0.80 | 625 | 62.5 | 44.1 |
| 7 | 7.0 | 21.3 | 24.85 | 1.10 | 460 | 46.0 | 55.9 |
| 7.3 | 7.3 | 24.0 | 26.6 | 1.16 | 430 | 43.0 | 58.9 |
| 8 | 8.0 | 24.0 | 28.0 | 1.43 | 350 | 35.0 | 73.6 |
| 10 | 10.0 | 30.0 | 35.0 | 2.23 | 225 | 22.5 | 118.0 |
| 13 | 13.0 | 39.0 | 45.6 | 3.75 | 134 | 13.4 | 176.0 |
The chain’s working load limit depends on the manufacturer’s safety factor. For example, an G40 chain has a safety factor of 5:1, while an G70 has a safety factor of 3:1. The high strength of the G30 chain is equivalent to the performance of a short BBB chain. However, higher tensile strength means it is more expensive.
Another problem associated with a high-strength G70 chain is its complicated galvanizing process. This process leads to hydrogen embrittlement, which is caused by the deposition of hydrogen in the steel’s crystal lattice. Additionally, chain manufacturers warn against re-galvanizing G70 chains. However, independent sources report that the issue is sporadic and only affects high-strength chains.
Our company also provides many conveyor chain types. If you need to know more product types and information, such as conveyor chain, you can contact us by email or communicate with our online staff. Looking forward to working with you.
