ND (NJ, NYD) Roller Backstop
The ND (NJ, NYD) Roller Backstop is a low-speed anti-reverse device. It has a compact structure and light weight, it locks reliably and runs smoothly without sticking, it is also easy to install and does not need high installation accuracy.
The ND (NJ, NYD) Roller Backstop is a low-speed anti-reverse device. It has a compact structure and light weight, it locks reliably and runs smoothly without sticking, it is also easy to install and does not need high installation accuracy.
This backstop acts as a safety protection device for lifting and transport equipment. It often works in belt conveyors, bucket elevators, scraper conveyors, and other machines that require backstopping.
Type |

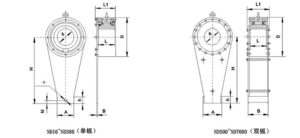

Nominal Torque | Maximum inner race speed | Freewheeling drag torque | Bore range | structure size (mm) | Maximum Weight | ||||||||
| (N·m) | (r/min) | (N·m) | A | B | D1 | H | H1 | Φ | h | L | L1 | (kg) | ||
| ND16(NJ65) | 1600 | 150 | 4 | 50 – 65 | 50 | 6 | 160 | 226 | 16 | 13.5 | 30 | 85 | 106 | 13.5 |
| ND25(NJ75) | 2500 | 150 | 5 | 60 – 75 | 65 | 6 | 170 | 269 | 19 | 16.5 | 35 | 85 | 106 | 16.1 |
| ND60(NJ85) | 6000 | 150 | 8 | 70 – 85 | 95 | 9 | 210 | 329 | 29 | 20.5 | 45 | 110 | 135 | 29.2 |
| ND80(NJ95) | 8000 | 150 | 10 | 80 – 95 | 105 | 9 | 230 | 382 | 32 | 20.5 | 55 | 110 | 138 | 37.2 |
| ND110(NJ110) | 11000 | 150 | 15 | 90 – 110 | 110 | 12 | 270 | 425 | 40 | 26 | 60 | 110 | 141 | 46.2 |
| ND160(NJ130) | 16000 | 100 | 20 | 100 – 130 | 120 | 12 | 320 | 506 | 36 | 26 | 65 | 130 | 161 | 82.8 |
| ND250(NJ160) | 25000 | 100 | 35 | 120 – 160 | 120 | 20 | 360 | 612 | 32 | 31 | 65 | 140 | 183 | 125 |
| ND380(NJ200) | 38000 | 100 | 45 | 160 – 200 | 130 | 20 | 430 | 623 | 43 | 41 | 70 | 160 | 207 | 180 |
| ND500(NJ220) | 50000 | 80 | 75 | 160 – 220 | 238 | 259 | 500 | 820 | 80 | – | – | 230 | 303 | 351 |
| ND650(NJ230) | 65000 | 80 | 85 | 180 – 240 | 260 | 279 | 540 | 900 | 90 | – | – | 250 | 323 | 525 |
| ND900(NJ250) | 90000 | 50 | 95 | 180 – 250 | 288 | 323 | 600 | 1000 | 100 | – | – | 290 | 367 | 675 |
| ND1250(NJ270) | 125000 | 50 | 100 | 200 – 270 | 298 | 323 | 650 | 1100 | 110 | – | – | 290 | 367 | 737 |
| ND1800(NJ300) | 180000 | 50 | 110 | 230 – 300 | 356 | 335 | 780 | 1300 | 135 | – | – | 290 | 392 | 1123 |
| ND2700(NJ320) | 270000 | 50 | 140 | 250 – 320 | 386 | 345 | 850 | 1500 | 135 | – | – | 320 | 412 | 1425 |
| ND3200(NJ350) | 320000 | 50 | 160 | 250 – 350 | 414 | 360 | 930 | 1600 | 135 | – | – | 360 | 426 | 1955 |
| ND2700(NJ420) | 520000 | 50 | 220 | 320 – 420 | 474 | 484 | 1030 | 1800 | 165 | – | – | 450 | 550 | 2930 |
| ND7000(NJ450) | 700000 | 50 | 250 | 350 – 450 | 526 | 494 | 1090 | 2000 | 165 | – | – | 480 | 574 | 3380 |
