RSBI Centrifugal Sprag Freewheel

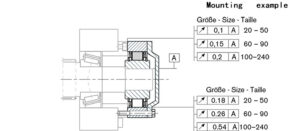

Type RSBI is a centrifugal sprag type freewheel with the inner race rotating. Only the inner race is designed for freewheeling. It is a non self-supported type. Bearings must be provided to ensure con-centricity of the inner and outer race.
Type RSBI is a centrifugal sprag type freewheel with the inner race rotating. Only the inner race allows freewheeling. It does not support itself. The system must provide bearings to keep the inner and outer races perfectly aligned.
As a backstop, this product must keep the overrunning speed above the minimum limit in the table on the next page. The backstop is primarily designed for backstopping. It can also work as an overrunning clutch in dual drives.
TYPE |
Bore dH7 [mm] | Torque TKN [Nm] | Speed | Dimensions | WEIGHT | |||||||||||||||||
| nmax [min⁻¹] | nmin [min⁻¹] | nmax [min⁻¹] | Dh6 [mm] | D1h6 [mm] | D2 H7 [mm] | D3 [mm] | D4 | d5 | z | L [mm] | l [mm] | l1 [mm] | l4 [mm] | f x45° [mm] | dmin [mm] | l2 [mm] | l3 [mm] | RSBI [kg] | F8 [kg] | |||
| RSBI | 60 | 1375 | 200 | 490 | 6100 | 175 | 85 | 125 | 155 | M10 | – | 8 | 60 | 50 | 36 | 5 | 2 | 110 | 12 | 35 | 6.5 | 1.8 |
| RSBI | 70 | 2000 | 210 | 480 | 4500 | 190 | 95 | 140 | 165 | M10 | – | 12 | 60 | 50 | 36 | 5 | 2 | 120 | 12 | 35 | 8.6 | 1.9 |
| RSBI | 80 | 3125 | 190 | 450 | 4000 | 210 | 115 | 160 | 185 | M10 | – | 12 | 70 | 60 | 36 | 5 | 2 | 140 | 12 | 35 | 12.5 | 2.6 |
| RSBI | 90 | 4125 | 180 | 420 | 3000 | 230 | 135 | 180 | 206 | M12 | – | 12 | 80 | 70 | 36 | 5 | 2.5 | 160 | 12 | 35 | 17.4 | 3 |
| RSBI | 100 | 7250 | 200 | 455 | 2700 | 270 | 140 | 210 | 240 | M16 | – | 12 | 90 | 80 | 52.6 | 5 | 2.5 | 180 | 15 | 37 | 28 | 5 |
| RSBI | 130 | 10625 | 180 | 415 | 2400 | 310 | 170 | 240 | 278 | M16 | – | 12 | 90 | 80 | 52.6 | 5 | 3 | 210 | 15 | 37 | 35 | 6 |
| RSBI | 150 | 20325 | 160 | 365 | 1300 | 400 | 240 | 310 | 360 | M16 | – | 12 | 90 | 80 | 52.6 | 5 | 3.5 | 280 | 18 | 44 | 61 | 15 |
| RSBI | 180 | 20375 | 160 | 365 | 3450 | 400 | – | 310 | 360 | M16 | 270 | 12 | 105 | 80 | 52.6 | 5 | 4 | 280 | 18 | 62 | 73 | 16 |
| RSBI | 190 | 25000 | 145 | 340 | 4200 | 420 | – | 330 | 380 | M16 | 290 | 16 | 105 | 80 | 58.6 | 5 | 4 | 300 | 18 | 67 | 75 | 18 |
| RSBI | 220 | 33750 | 140 | 325 | 3600 | 460 | – | 360 | 410 | M16 | 320 | 18 | 105 | 80 | 58.6 | 5 | 4 | 330 | 18 | 67 | 88 | 21 |
| RSBI | 240 | 38250 | 135 | 310 | 3100 | 490 | – | 390 | 440 | M16 | 350 | 18 | 105 | 80 | 58.6 | 5 | 4 | 360 | 20 | 67 | 96 | 25 |
