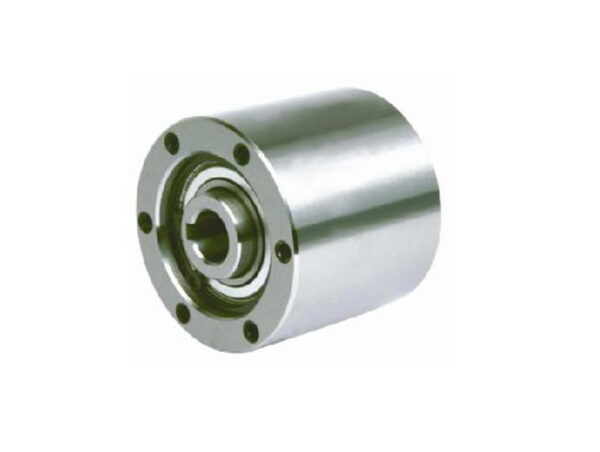

MG/MI One-Way Clutch
MG/MI series is a one-way clutch designed for high-speed applications. Cam assembly engineered for optimum performance and increased cage capacity. Two ball bearings included to support radial load and concentricity between races.
MG/MI series is a one-way clutch designed for high-speed applications. Cam assembly engineered for optimum performance and increased cage capacity. Two ball bearings included to support radial load and concentricity between races.
Positive contact lip or felt seals provided for grease or oil lubrication. The outer race uses end tapped holes to mount auxiliary components.
Type |
Max. Excavation Torque (N·m) | Bucket Crowding Force (MN) | Swing Speed (r/min) | Max. Travel Speed (Times/min) | Spare Hole Size | A | B (h7) | C | D | E | F | G | Taper Pin H-Thread Size*Pitch | Grease Fitting Size*Pitch | Oil Capacity (cc) | Weight (kg) | ||
| Inner Race | Outer Race | Dia. (H7) | Keyway | |||||||||||||||
MG300 |
314 | 0.225 | 2,800 | 900 | 300 | 19 | 5*2 | 63 | 77 | 60 | 66 | 10.4 | 28.5 | 13 | 4M6*P1.0 | M6*P1.0 | 25 | 1.8 |
MI300 |
0.304 | 50 | 50 | |||||||||||||||
MG400 |
539 | 0.284 | 2,600 | 800 | 300 | 22 | 5*2 | 70 | 88 | 67 | 73 | 10.7 | 31.7 | 16 | 4M8*P1.25 | M6*P1.0 | 30 | 2.7 |
MI400 |
0.372 | 50 | 60 | |||||||||||||||
MG500 |
1620 | 0.51 | 2,400 | 800 | 300 | 31.5 | 7*3 | 89 | 108 | 86 | 92 | 12.3 | 44.1 | 16 | 4xM8*P1.25 | M6*P1.0 | 50 | 5 |
MI500 |
0.676 | 50 | 100 | |||||||||||||||
MG600 |
3140 | 0.843 | 2,100 | 700 | 300 | 50 | 12*3.5 | 95 | 136 | 92 | 120 | 12.8 | 69.8 | 16 | 6xM8*P1.25 | M6*P1.0 | 80 | 8.6 |
MI600 |
1.55 | 30 | 160 | |||||||||||||||
MG700 |
5880 | 1.7 | 1,500 | 500 | 300 | 70 | 18*6 | 127 | 180 | 124 | 160 | 19.8 | 101.5 | 20 | 6xM10*P1.5 | M6*P1.0 | 135 | 19.5 |
MI700 |
2.63 | 30 | 250 | |||||||||||||||
MG750 |
9510 | 3.43 | 1,800 | 600 | 300 | 85 | 24*6 | 153 | 200 | 150 | 175 | 75 | 110 | 25 | 8xM14*P2.0 | M8*P1.25 | 400 | 37 |
MI750 |
4.12 | 30 | 800 | |||||||||||||||
MG800 |
17600 | 5.39 | 1,300 | 475 | 300 | 110 | 28*7 | 158 | 250 | 155 | 220 | 77.5 | 140 | 25 | 8xM16*P2.0 | M8*P1.25 | 500 | 46.5 |
MI800 |
8.33 | 20 | 1000 | |||||||||||||||
MG900 |
24500 | 6.76 | 1,200 | 400 | 300 | 135 | 35*9 | 165 | 300 | 160 | 265 | 80 | 170 | 32 | 10xM16*P2.0 | M8*P1.25 | 620 | 70.5 |
MI900 |
9.41 | 20 | 1240 | |||||||||||||||
MG1000 |
33800 | 8.13 | 1,200 | 325 | 300 | 160 | 38*10 | 188 | 370 | 180 | 325 | 90 | 200 | 32 | 12xM16*P2.0 | M8*P1.25 | 850 | 108.5 |
MI1000 |
12.7 | 20 | 1700 | |||||||||||||||
MG1100 |
78400 | 5.19 | 350 | — | 150 | 185 | 45*14 | 260 | 470 | 250 | 415 | 125 | 260 | 40 | 12xM20*P2.5 | M12*P1.75 | 2900 | 250 |
MI1100 |
22.1 | 20 | 5800 | |||||||||||||||
MG1200 |
95100 | 17.6 | 300 | — | 150 | 200 | 45*14 | 260 | 500 | 250 | 440 | 125 | 230 | 45 | 12xM24*P1.0 | M12*P1.75 | 3000 | 280 |
MI1200 |
27.3 | 20 | 6000 | |||||||||||||||
MG1300 |
176400 | 18.7 | 250 | — | 150 | 250 | 56*17.5 | 280 | 600 | 260 | 530 | 130 | 340 | 50 | 12xM130*P3.5 | M12*P1.75 | 3800 | 410 |
MI1300 |
28.1 | 20 | 7600 | |||||||||||||||
