RSBW Sprag Type Freewheel

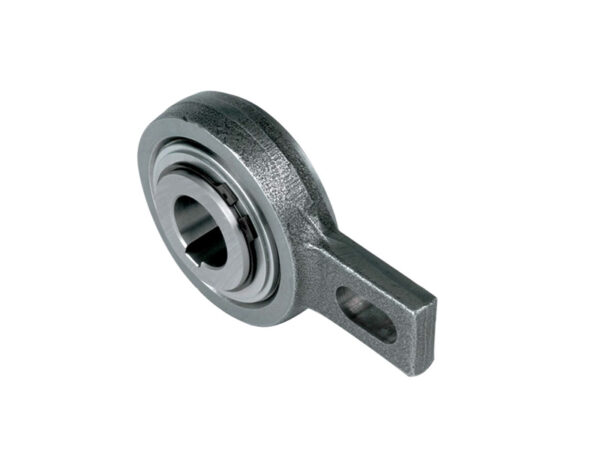

Type RSBW is a DC sprag type freewheel. It is suitable for low-speed applications and uses O-rings for sealing. The unit comes with grease and is ready to install in a horizontal or vertical position. Primarily used as a backstop, this type provides a high torque capacity with a minimum space requirement.
Type RSBW is a DC sprag type freewheel. It is suitable for low-speed applications and uses O-rings for sealing. The unit comes with grease and is ready to install in a horizontal or vertical position. Primarily used as a backstop, this type provides a high torque capacity with a minimum space requirement. The design allows installation in difficult environments such as high humidity or water splash areas.

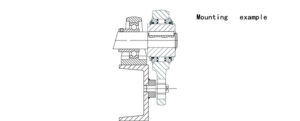

A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt should be equal to 1%-3% of the slot width. The torque arm and the bearings must not be prestressed.
TYPE |
Size dH7 [mm] | Torque TKN [Nm] | Overrunning Speeds nmax [min⁻¹] | D [mm] | L1 [mm] | F [mm] | E [mm] | B [mm] | N [mm] | L [mm] | bH11 [mm] | WEIGHT [kg] |
| RSBW | 20 | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 |
| RSBW | 25 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.6 |
| RSBW | 30 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.5 |
| RSBW | 35M | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 |
| RSBW | 35 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.4 |
| RSBW | 40 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.6 |
| RSBW | 45 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 |
| RSBW | 50 | 1295 | 300 | 132 | 52 | 25 | 115 | 60 | 35 | 15 | 18 | 4.5 |
| RSBW | 55 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.4 |
| RSBW | 60 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.5 |
| RSBW | 70 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.4 |
| RSBW | 80 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.9 |
| RSBW | 90 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.8 |
