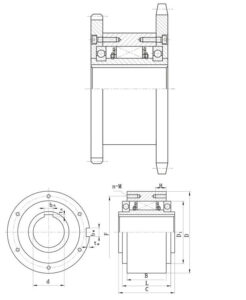

CKZF-A Centrifugal Sprag Freewheel
Type CKZF-A is a centrifugal sprag type freewheel with the inner race rotating. Using two 60 series bearings. Only the inner race is designed for freewheeling. Units are delivered oil lubricated.
Type CKZF-A is a centrifugal sprag type freewheel with the inner race rotating. Using two 60 series bearings. Only the inner race allows freewheeling. The unit comes with oil lubrication.
The inner race and the outer race have a keyway and the coping have screw. Teary for either horizontal or vertical installation.
Suitable for back-stop, or overrunning clutch applications.
| Type | Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | Weight | |||||||||||
| (N·m) | (r/min) | d(H7) | D(h7) | F | D1 | B | C | L | n-M | H | bw*tw | bn*tn | (kg) | ||
| nmin | nmax | ||||||||||||||
| CKZF-A30100 | 250 | 780 | 6000 | 30 | 100 | 87 | 75 | 51 | 68 | 60.5 | 6-M6 | 10 | 8*4.0 | 8*3.3 | 2.3 |
| CKZF-A35110 | 300 | 740 | 6000 | 35 | 110 | 96 | 80 | 53 | 74 | 63 | 6-M6 | 12 | 10*5.0 | 10*3.3 | 3.2 |
| CKZF-A40125 | 450 | 720 | 5000 | 40 | 125 | 108 | 90 | 62 | 86 | 73 | 6-M8 | 14 | 12*5.5 | 12*3.3 | 4.3 |
| CKZF-A45130 | 510 | 665 | 5000 | 45 | 130 | 112 | 95 | 62 | 86 | 73 | 8-M8 | 14 | 14*5.5 | 14*3.8 | 5 |
| CKZF-A50150 | 820 | 610 | 4000 | 50 | 150 | 132 | 110 | 73 | 94 | 86 | 8-M8 | 14 | 14*5.5 | 14*3.8 | 7.5 |
| CKZF-A55160 | 900 | 600 | 4000 | 55 | 160 | 138 | 115 | 73 | 104 | 86 | 8-M10 | 16 | 16*6.0 | 16*4.3 | 9 |
| CKZF-A60170 | 1100 | 490 | 3200 | 60 | 170 | 150 | 125 | 91 | 114 | 105 | 10-M10 | 16 | 18*7.0 | 18*4.4 | 12.7 |
| CKZF-A70190 | 1500 | 480 | 3200 | 70 | 190 | 165 | 140 | 108 | 134 | 124 | 10-M10 | 16 | 20*7.5 | 20*4.9 | 14.5 |
| CKZF-A80210 | 2500 | 450 | 2400 | 80 | 210 | 185 | 160 | 106 | 144 | 124 | 10-M10 | 16 | 22*9.0 | 22*5.4 | 19 |
| CKZF-A90230 | 3300 | 420 | 2400 | 90 | 230 | 206 | 180 | 114 | 158 | 143 | 10-M12 | 20 | 22*9.0 | 22*5.4 | 29.5 |
| CKZF-A100270 | 5800 | 455 | 2000 | 100 | 270 | 240 | 210 | 121 | 182 | 153 | 10-M16 | 24 | 28*10 | 28*6.4 | 42.5 |
| CKZF-A130310 | 8500 | 415 | 2000 | 130 | 310 | 278 | 240 | 169 | 212 | 194 | 12-M16 | 24 | 32*11 | 32*7.4 | 70 |
